KEUCO PLAN BLUE bath mixer DN15, 53920010100
high-gloss chrome-plated bath mixer, DN15,
in an aesthetic, functional design,
for surface mounting,
Mixing valve with ceramic sealing washers,
Shut-off and diverter valve with ceramic sealing washers,
Actuator made of metal,
Hose connection DN 15,
Flow rate limited to 12 l / min.,
Intrinsic protection against backflow,
M 28x1 aerator, flow rate approx. 24 l / min.,
suitable for instant water heaters,

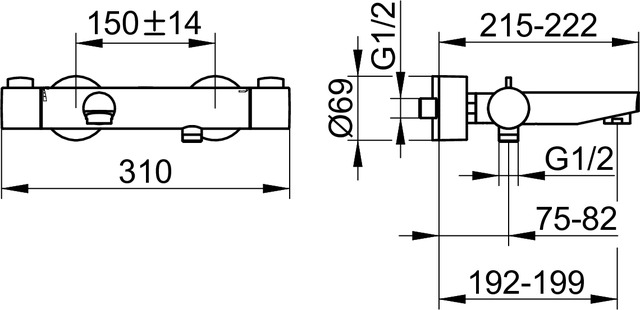

Base body diameter 44 mm, width 310 mm,
Projection 222 mm
Rosette cap, diameter 69 mm,
also high-gloss chrome-plated as a design element,
Pitch 150 mm, tolerance class +/- 14 mm
