Description
Protection degree
IPX4
Nominal voltage
230 V AC
Mains frequency
50 Hz
Power consumption standby max.
0.5 W
Flow pressure
0.5–10 bar
Operating temperature
5–40 °C
Water temperature, adjustment range
34–40 °C
Water temperature, factory setting
37 °C
Minimum flow pressure
0.5 bar
Calculated flow rate
0.02 l/s
Spray time
50 s
Load WC seat max.
150 kg
Odour extraction unit
Yes
SoftOpening
Yes
With WC seat ring heating
Yes
With orientation light
No
With dryer functionality
Yes
Click on an application purpose to search more products
For convenient and odourless toilet use
For gently cleaning the anal and vaginal areas with water
Click on a characteristic to search more products
Water heating via continuous flow heater
Anal shower with WhirlSpray shower technology
Separate Lady shower nozzle in protected park position
Continuous flow heater can be deactivated
Spray arm with nozzle can be extended for anal and vaginal area
Spray intensity can be set to five different levels
Spray arm can be set to five different positions
Adjustable oscillating spray (automatic forward and reverse motion of the spray arm)
Automatic pre- and postrinsing of the spray nozzle with fresh water
Descaling programme
Rimless WC ceramic appliance featuring Rimfree flush technology
Easy fastening with Easy Fast Fixing (type EFF3)
Washdown WC with special glaze KeraTect
User detection
Odour extraction with ceramic honey comb filter can be activated
Odour extraction unit with run-on function
Dryer can be activated
WC seat ring with rapid heating function
WC seat ring and WC lid with soft-closing mechanism
WC lid with SoftOpening
Functions and settings via remote control
Three user profiles can be programmed
Compatible with Geberit Home App

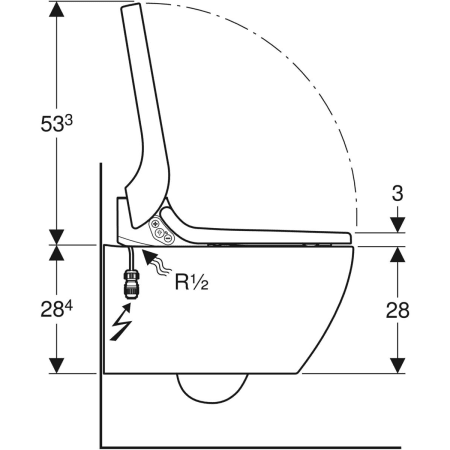

Water supply connection on the left, hidden behind the WC ceramic
Mains connection with flexible three-core sheathed cable, on the right side, hidden behind the WC ceramic
Approval in accordance with (DIN) EN 1717 / (DIN) EN 13077
Shower water temperature can be adjusted via Geberit Home App
Dryer temperature can be adjusted via Geberit Home App
Temperature of the WC seat heating can be adjusted via Geberit Home App
Water supply connection set for Sigma and Omega concealed cisterns 12 cm, installation height 112 cm
Female socket for mains connection
Sound insulation set
Spray shield
Compensation pad for WC seat / ceramic appliance
Descaling agent, 125 ml
Cleaning set
Connection set for WC, ø 90 mm

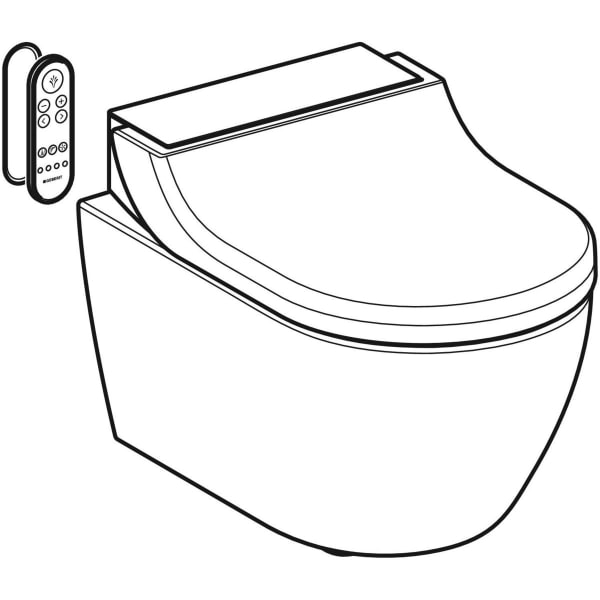

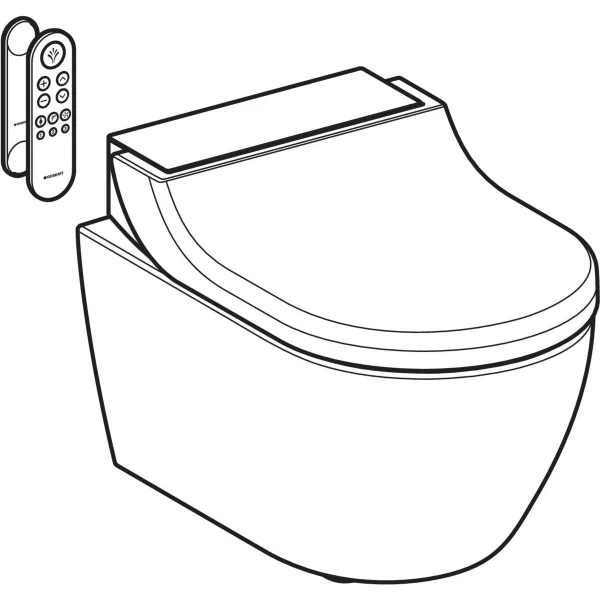

Remote control with wall-mounted case and battery CR2032
Fastening material

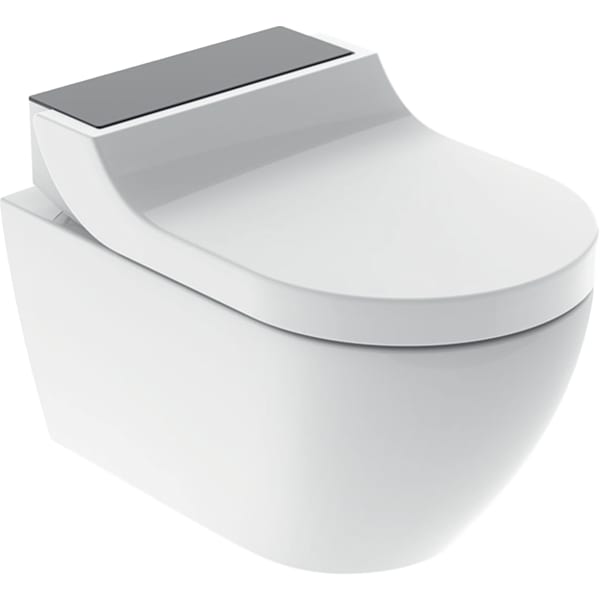

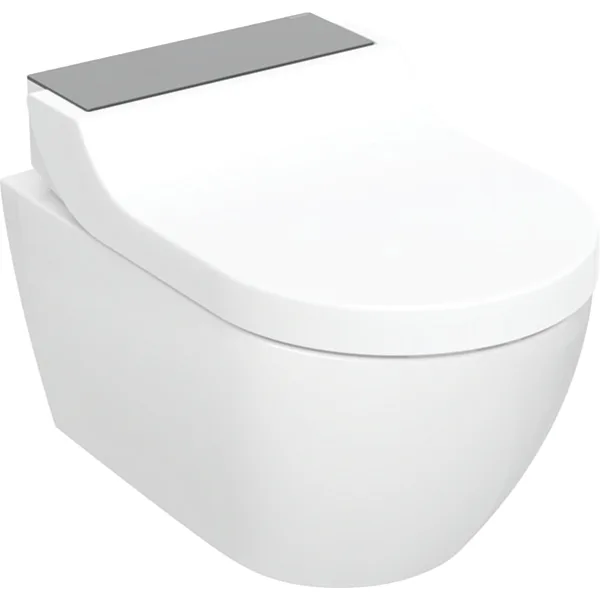

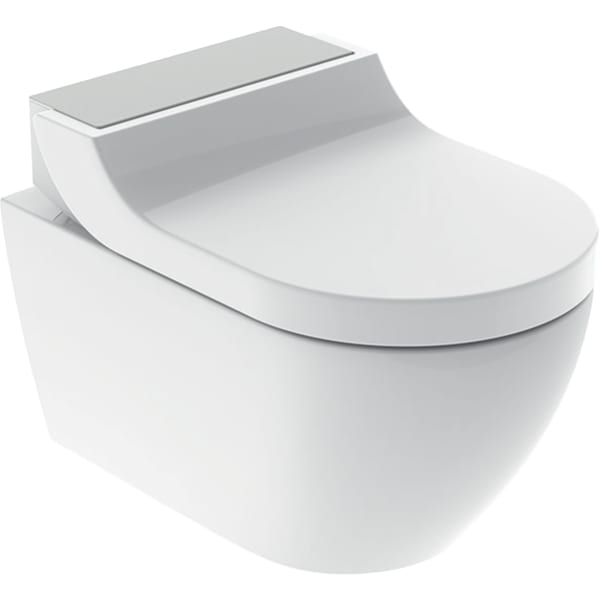

Colour / surface: WC ceramic appliance: white / KeraTect Design cover: brushed stainless steel

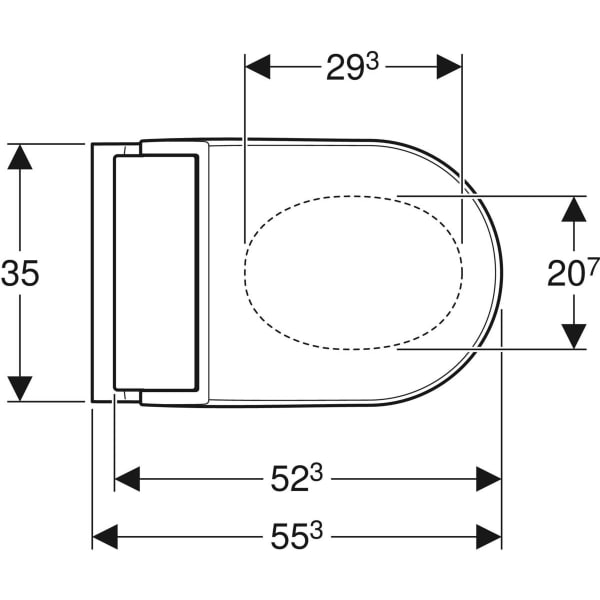

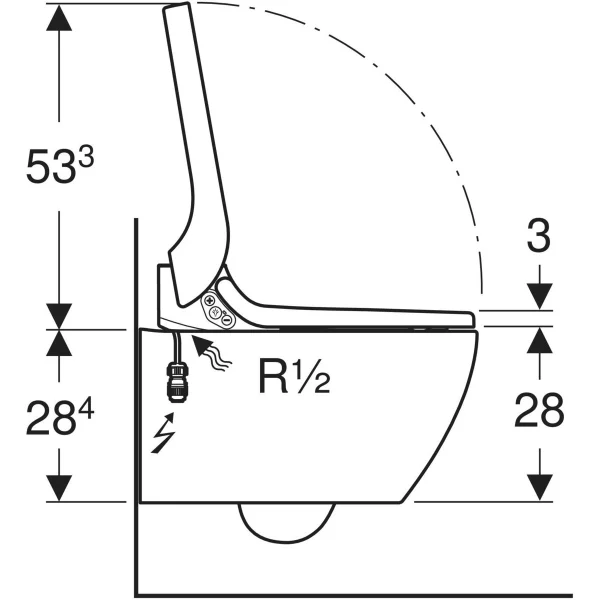

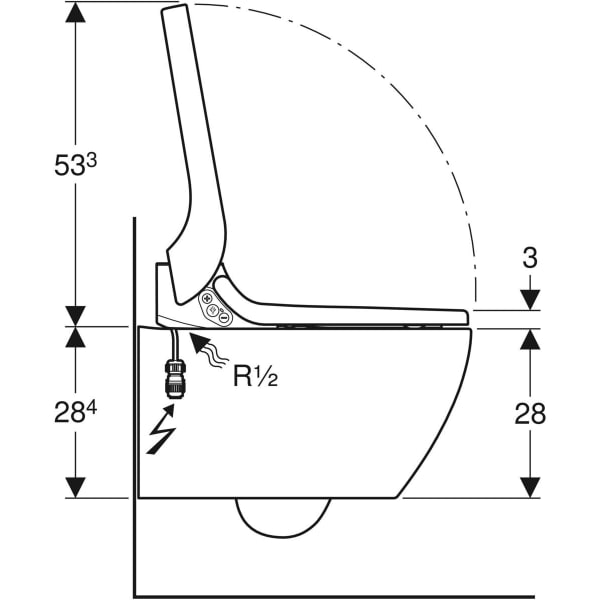

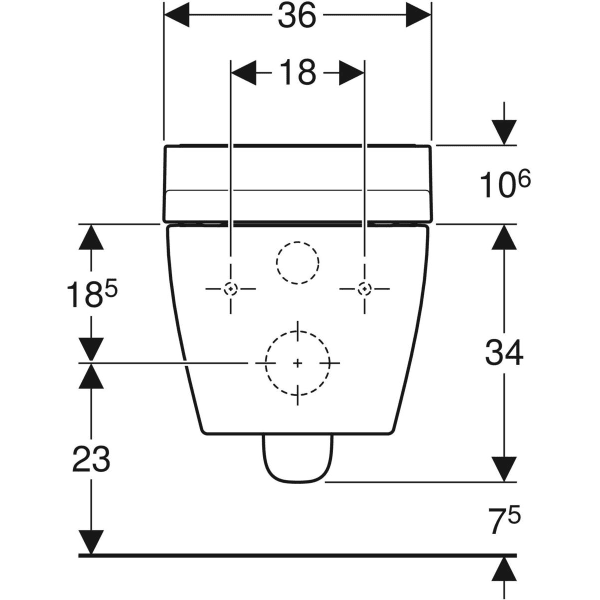

B: 36 cm
H: 44.6 cm
T: 55.3 cm
Protection class: I
Power consumption: 2000 W
