Description
Overflow capacity
0.65 l/s
Seal water height (mm)
50 mm
Click on an application to search for other products
For standard size baths
For baths and shower trays with valve hole ø 52 mm
For steel, plastic or cast iron baths
Click on a property to search for other products
Quality-controlled in accordance with EN 274-3
With overflow

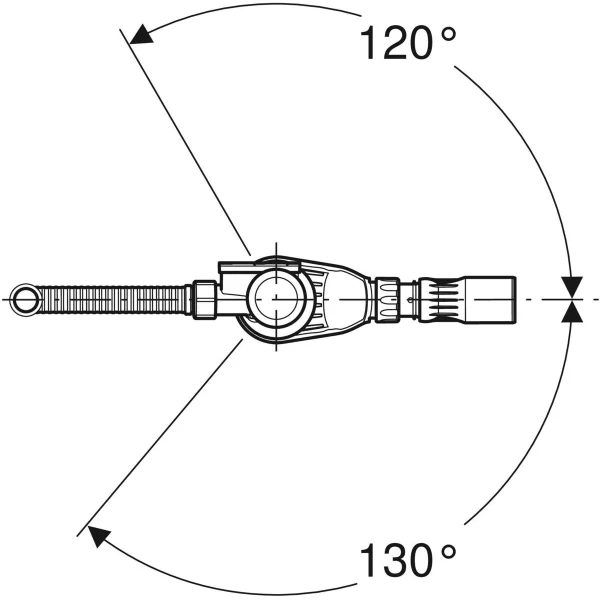

Overflow head can be fixed in an orientated position
Double-sided seals on drain and overflow
Flush-mounted pressure actuation
Pre-assembled set
Drain valve
Odour trap
PE-HD connection piece, ø 50 mm, with ball joint
Construction protection
Fixing material
Colour / surface: high-gloss chrome-plated
DN: 40

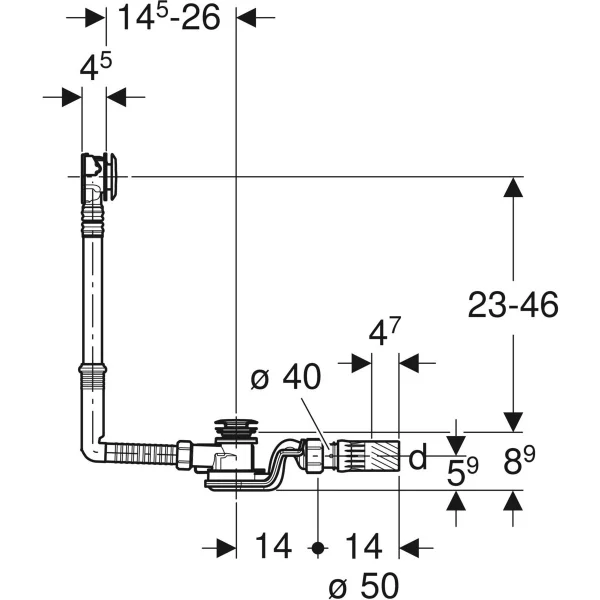

d, ø: 40 / 50 mm
Drainage capacity: 1 l/s
PU1: 1 pc.
PU2: 10 pcs.
PU3: 80 pcs.
