Description
Seal water height (mm)
50 mm
material
plastic
Click on an application to search for other products
For concealed installation
For connecting washing machines and condensate dryers (in tower arrangement)
For flush mounting
Click on a property to search for other products
Quality-monitored in accordance with EN 274-3
Stainless steel cover plate
UP odour trap can be removed for cleaning

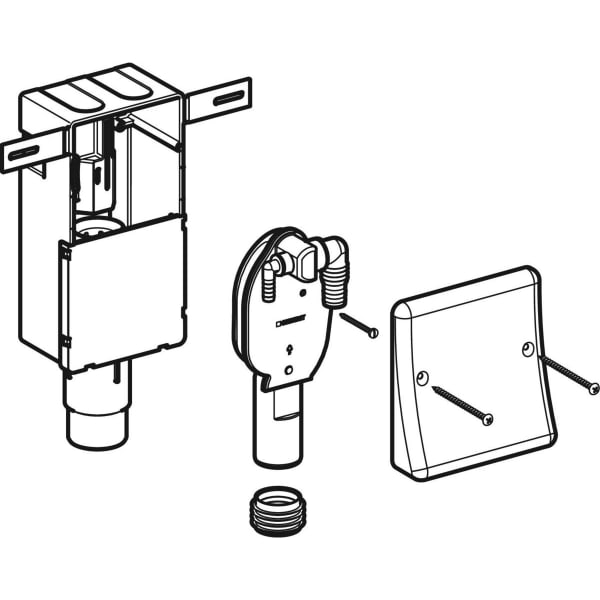

Cover plate
Angled hose nozzle made of PP, ø 10 mm
Angled hose nozzle made of PP, ø 19 / 23 mm
Wall installation box
Building protection
Fastening material

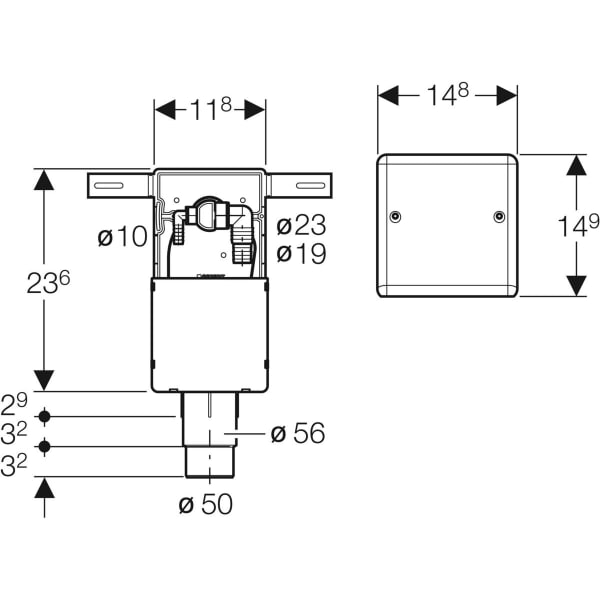

d, ø: 50-56 mm
Drainage capacity: 0.6 l/s
PU1: 1 pc.
PU2: 10 pcs.
PU3: 60 pcs.
