Description
Seal water height (mm)
30 mm
Click on an application to search for other products
For screed heights ≥ 65 mm at the inlet
For the drainage of floor-level showers
For bonded waterproofing
For drywall construction
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in partial or room-height Geberit Duofix system walls
For wall-mounted taps
To accommodate the waste water from a single shower head
Click on a property to search for other products
Pre-assembled sealing fleece
Sealing fleece all round 10 cm, for connecting sealing systems
Swivelling base plates
Base plate depth suitable for installation in U profiles UW 50 and Geberit Duofix system rails
Planking thickness 10-40 mm
Suitable for tile structures on floors from 2-26 mm
Suitable for tile structures on walls from 2-35 mm
Adjustable sealing level for tension-free sealing connection
Drain connection on the side
Inlet height of the odour trap adjustable
Footrests with slip resistance
Frame with ø 9 mm drill holes for fastening in timber stud construction
Crossbar fitting height and depth adjustable
Statically self-supporting frame, corrosion-protected with powder coating
Connection pipe made of PE-HD, ø 40 mm
2 connection brackets Rp 1/2" / R 1/2", MF-capable
2 sealing discs
2 sound insulation pads
2 insulating sleeves
Building protection cover with integrated inlet plate
Fastening material
Prefabricated set
DN: 40
d, ø: 40 mm
Drainage capacity: 0.4 l/s

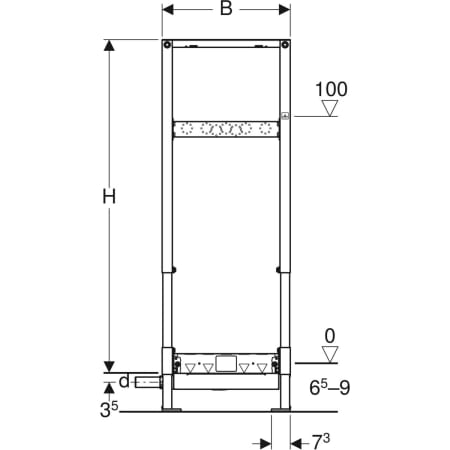

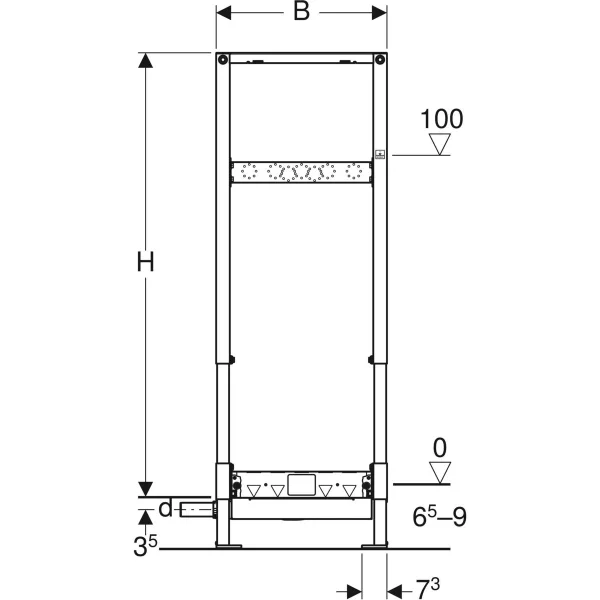

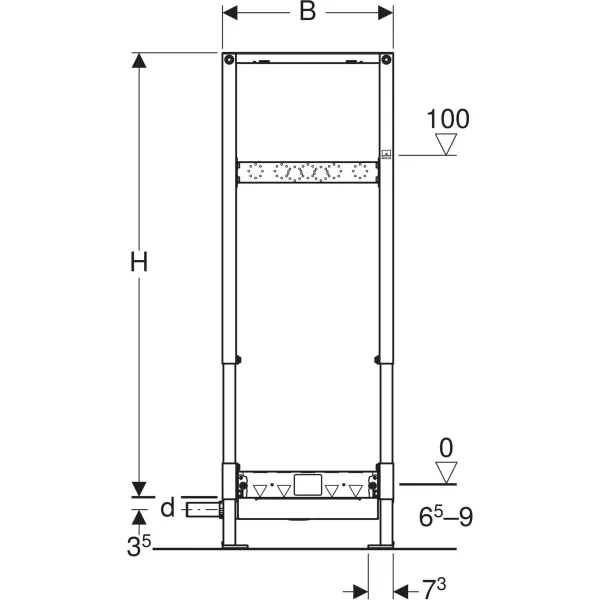

W: 50 cm
H: 130 cm

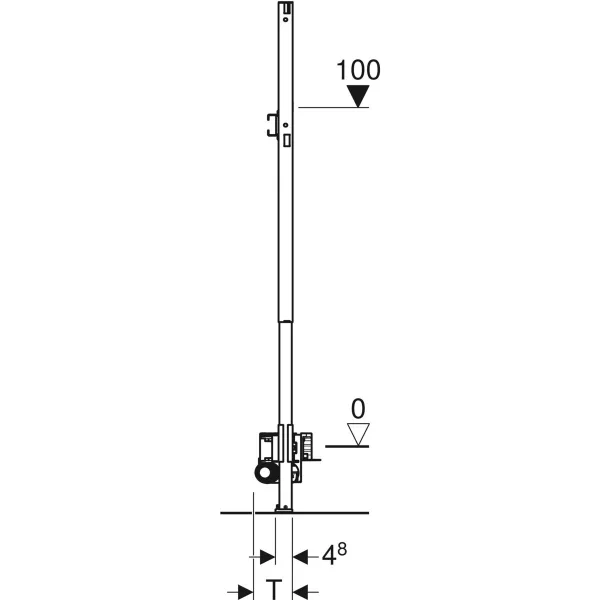

D: 11 cm
PU1: 1 pc.
PU2: 4 pcs.
