Flow pressure
10-1000 kPa
Water temperature max.
25 °C
Flush volume Factory setting
6 / 3 l
Large flush volume Setting range
4 / 4.5 / 6 / 7.5 l
Small flush volume Setting range
2-4 l
Flow rate at 3 bar
0.16 l/s
Minimum flow pressure for calculation flow rate
10 kPa
Calculation flow rate
0.09 l/s
Height adjustable
No
Click on an application to search for more products
For drywall construction
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in part-height or room-height Geberit Duofix system walls for pre-wall installation
Suitable for barrier-free construction
For wall-hung WCs with connection dimensions in accordance with DIN EN 33:2011-11

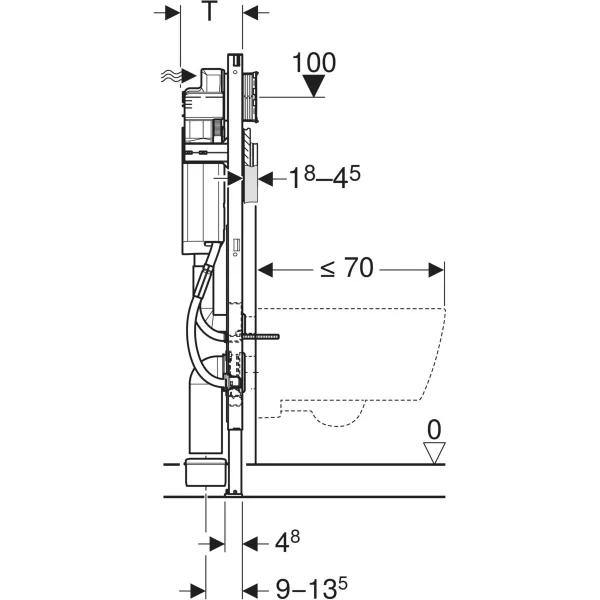

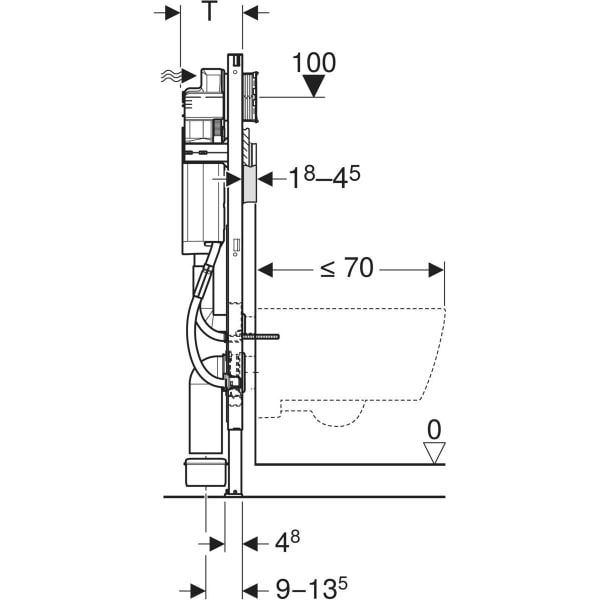

For wall-hung WCs with projection up to 70 cm
For attaching support and grab rails
For 1-quantity, 2-quantity or flush-stop flushing
For floor structures 0-20 cm
Click on a feature to search for other products

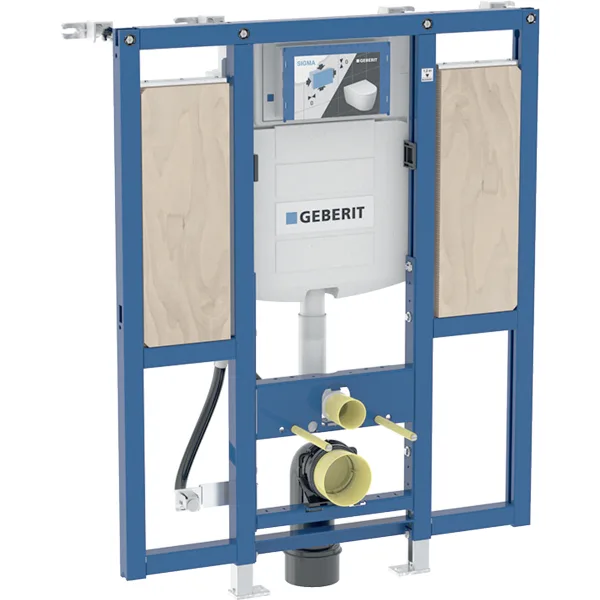

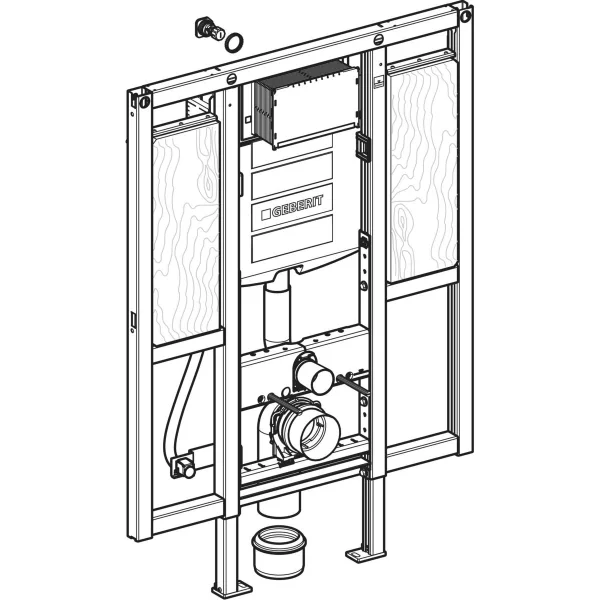

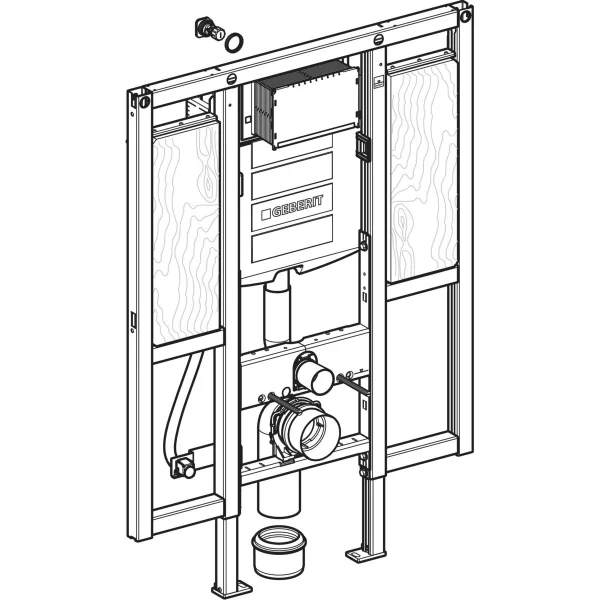

Statically self-supporting frame, corrosion-protected with powder coating

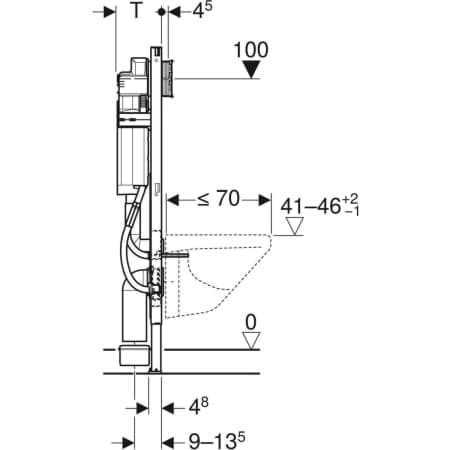

WC installation height adjustable in the shell construction phase, 41-46 cm
Galvanised footrests
Footrests adjustable 0-20 cm
Footrests with slip resistance
Swivelling foot plates
Foot plate depth suitable for installation in U profiles UW 50 and UW 75 and Geberit Duofix system rails
Connection elbow can be installed in various depth positions without tools, adjustment range 45 mm
Sound-insulated connection bend fixing
Concealed cisterns with actuation from the front
Concealed cistern insulated against condensation
Immediate flushing possible with factory setting
Installation and maintenance work on the concealed cistern without tools
Water connection at the rear or top centre
Construction protection for service opening protects against moisture and dirt
Construction protection for service opening can be cut to length
Mounting plate made of veneer wood, waterproof glued
Building material class B2 according to DIN 4102-1, or class D-s2, d0 according to EN 13501-3
Formaldehyde emission class A according to EN 1084, or class E 1 according to EN 13936
With empty conduit for water supply line for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection
Power & Connect Box can be installed
R 1/2" water connection, MasterFix and MeplaFix-compatible, with integrated angle valve and handwheel
Construction protection for service opening
2 protective plugs
4 wall anchors
Connection set for WC, ø 90 mm
90° connection bend made of PE-HD, ø 90 mm
Transition sleeve made of PE-HD, ø 90 / 110 mm
2 threaded rods M12
Flush-mounted box for drill hole ø 68 mm, for electrical connection
Fixing material

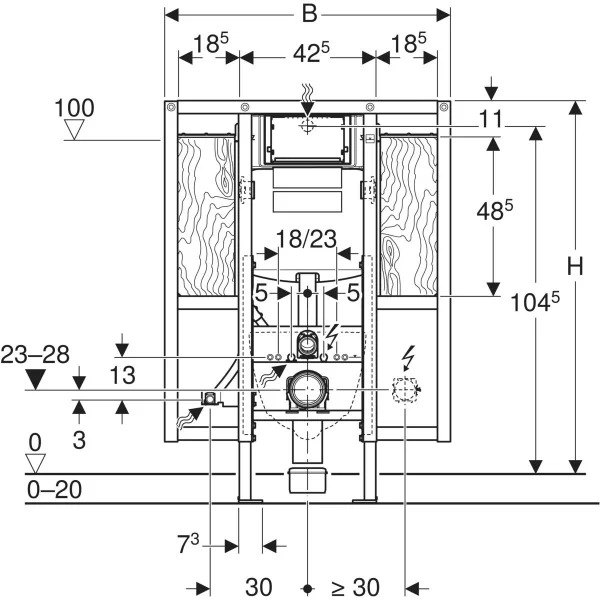

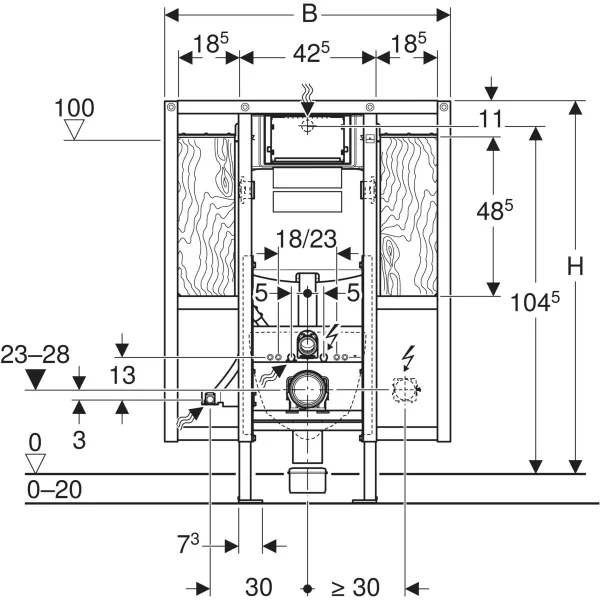

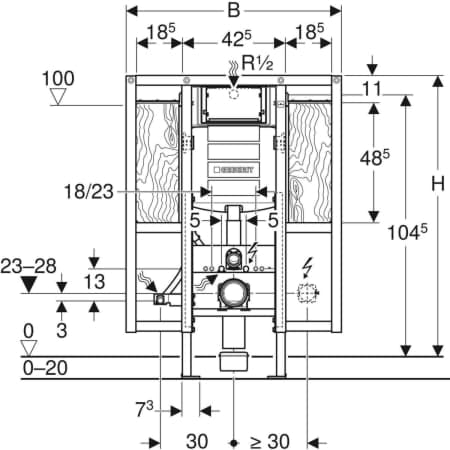

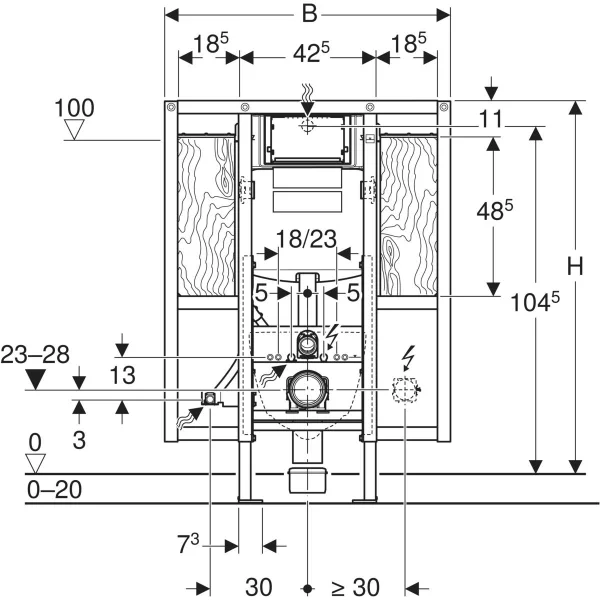

W: 88 cm
H: 112 cm
D: 17 cm
PU1: 1 pc.
