Description
material
steel
Height adjustable
Yes
Click on an application to search for other products
For drywall construction
For installation in partial or room-height pre-wall installations
For installation in room-height installation walls
For installation in part-height or room-height Geberit Duofix system walls
Suitable for barrier-free construction
For the installation of washbasins
For Piave and Brenta washbasin taps, free-standing installation, for concealed function box
For floor structures 0-20 cm
Click on a property to search for other products
Statically self-supporting frame, corrosion-protected with powder coating
Frame with drill holes ø 9 mm for fastening in timber stud construction
Galvanised foot supports
Foot supports adjustable 0-20 cm
Anti-slip foot supports
Swivelling foot plates
Footplate depth suitable for installation in U profiles UW 50 and UW 75 and Geberit Duofix system rails
Fixing distance washbasin 5-38 cm
Flush-mounted odour trap with optimum flow control and high self-cleaning ability
Flush-mounted odour trap height-adjustable by ± 3 cm for final installation
Wall installation box with connection pipe made of PP, ø 50 mm
Water connection MasterFix- and MeplaFix-compatible
Water connection to flush-mounted housing, bottom
Fastening for connection elbow, height-adjustable and sound-insulated
Flush-mounted housing for Geberit washbasin tap, free-standing installation, for flush-mounted function box, pre-assembled
Shut-off units integrated in flush-mounted housing
Connection terminal for electrical connection in flush-mounted housing
Building protection
2 M10 threaded rods
Building protection with cover, for flush-mounted housing
Fixing material

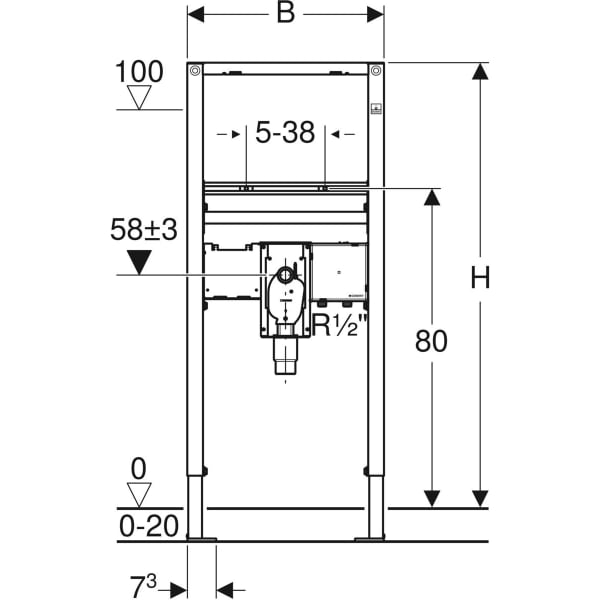

W: 50 cm
H: 112 cm
D: 7.5 cm
PU1: 1 pc.
