Description
material
steel
Height adjustable
Yes
Click on an application to search for other products
For drywall construction
For installation in part-height pre-wall installations
For installation in part-height Geberit Duofix system walls
For mounting washbasins
For free-standing taps
For floor structures 0-20 cm
For installation of measuring capsules with KOAX G 2" thread
Click on a property to search for other products
Statically self-supporting frame, corrosion-protected with powder coating
Frame with drill holes ø 9 mm for fastening in timber stud construction
Galvanised foot supports
Foot supports adjustable 0-20 cm
Anti-slip foot supports
Swivelling foot plates
Footplate depth suitable for installation in U profiles UW 50 and UW 75 and Geberit Duofix system rails
Fixing distance washbasin 5-38 cm
Height-adjustable and sound-insulated attachment for connecting bend
Faucet crossbar height and depth adjustable
Water meter sections installed with sound insulation
With gunmetal water meter section, Rp 3/4"
With connection T-piece Rp 1/2"
With flush-mounted ball valve Rp 3/4"
Upper part replaceable
Insulation made of EPP
Protective plug for one-off pressure test with cold water up to a maximum of 15 bar / 1500 kPa
2 protective plugs
Connection bend made of PE-HD, ø 50 mm
Seal ø 44 / 32 mm
2 M10 threaded rods
Fastening material

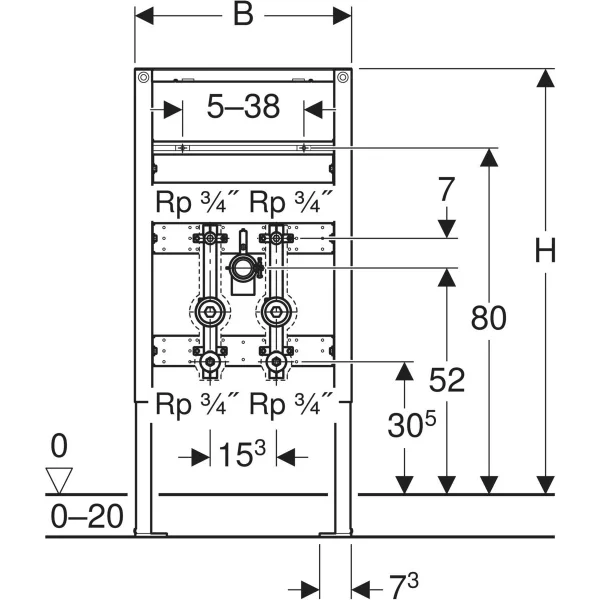

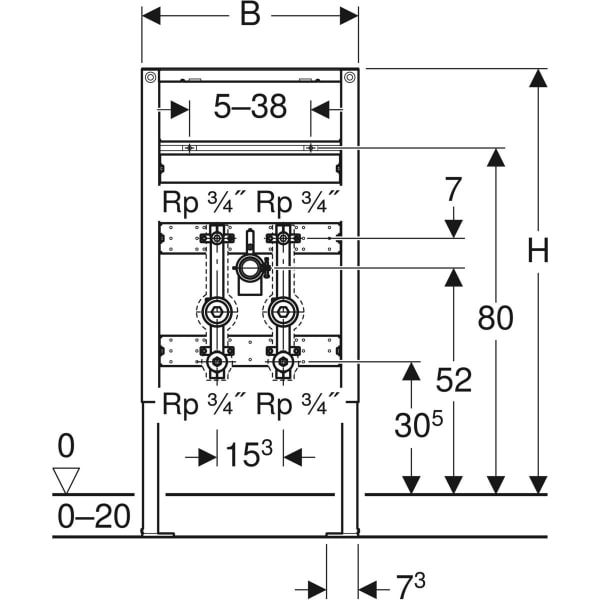

W: 50 cm
H: 82-98 cm

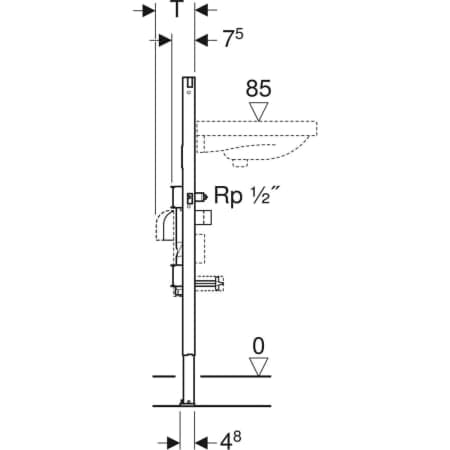

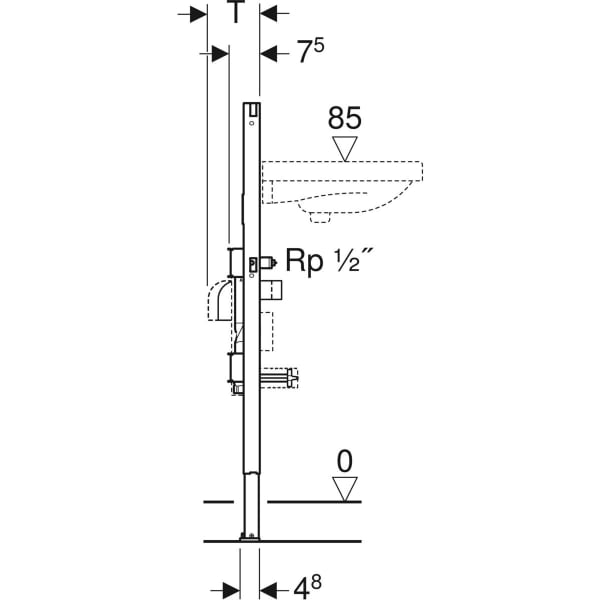

D: 12.5 cm
PU1: 1 pc.
