Description
Protection degree
IP45
Nominal voltage
85–240 V AC
Operating voltage
12 V DC
Mains frequency
50–60 Hz
Power consumption standby
0.15 W
Interval flush, adjustment range
1–168 h
Interval flush, factory setting
24 h
Interval flush time, adjustment range
1–200 s
Interval flush time, factory setting
5 s
Product material
Plastic
Click on an application purpose to search more products
For manual remote flush actuation of Sigma concealed cisterns 12 cm using pull-down rails with potential-free push-button with closing function
For releasing a single or dual flush
For solid and drywall construction
Suitable for less-abled installation
For Sigma concealed cisterns 12 cm
Click on a characteristic to search more products
Flush actuation connected by wire
Flush actuation via pull-down rail, connected by wire
Push-buttons can be connected in parallel
Single or dual flush can be triggered via flush plate
Can be combined with Sigma01 to Sigma70 actuator plates or Geberit cover plates
Power supply via external power supply unit
Transformation of mains voltage to extra-low voltage, 12 V DC
Operation with extra-low voltage, no mains voltage in cistern
With push-fit connection with cross-polarity protection
Interval flush preset
Adjustable interval flush
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Wired networkable with Geberit gateway via GEBUS converter
Wirelessly connectable with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Low-noise lifting mechanism
Electrical lifting device, self-calibrating

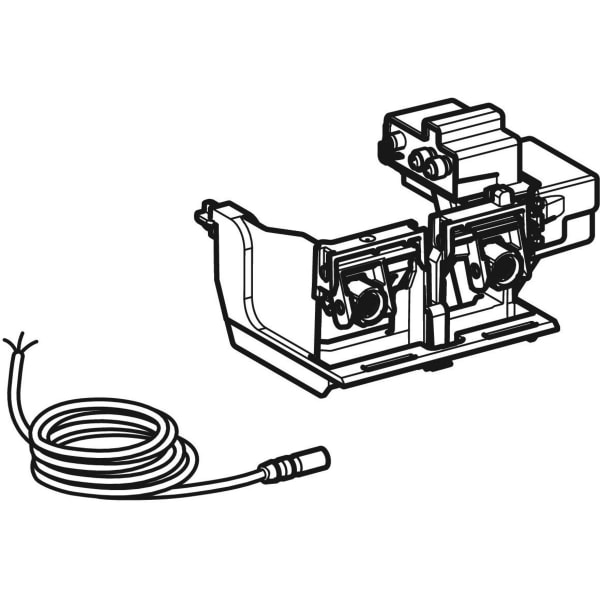

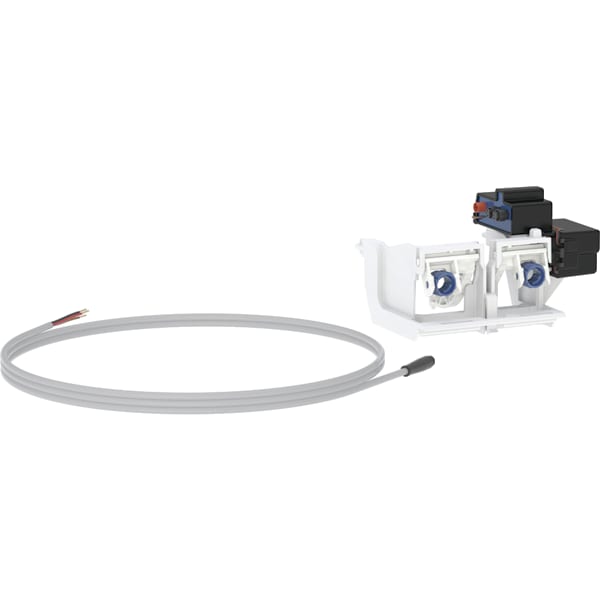

Support block with servomotor and lifting device, premounted
Electrical control
Connection cable, length 2 m, prefabricated
Actuator plate or cover plate
Push-button
Geberit Power & Connect box
Geberit power supply unit for Power & Connect box
Power consumption: ≤ 4 W
