Description
Protection degree
IP45
Nominal voltage
85–240 V AC
Operating voltage
12 V DC
Mains frequency
50–60 Hz
Power consumption standby
0.15 W
Radio frequency
868.4 MHz
Radio frequency distance
10 m
Interval flush, adjustment range
1–168 h
Interval flush, factory setting
24 h
Interval flush time, adjustment range
1–200 s
Interval flush time, factory setting
5 s
Product material
Plastic
Click on an application purpose to search more products
For manual remote flush actuation of Sigma concealed cisterns 12 cm using pull-down rails with RF-controlled button
For manual remote flush actuation of Sigma concealed cisterns 12 cm using Geberit RF-controlled button
For releasing a single or dual flush
For solid and drywall construction
Suitable for less-abled installation
For Sigma concealed cisterns 12 cm
Not suitable for use with Geberit inserts for in-cistern block
Click on a characteristic to search more products
Flush actuation using pull-down rail, wireless, radio
Flush actuation via Geberit RF-controlled button, wireless
Dual flush can be triggered via RF-controlled button
Single or dual flush can be triggered via flush plate
Can be combined with Sigma01 to Sigma70 actuator plates or Geberit cover plates
Power supply via external power supply unit
Transformation of mains voltage to extra-low voltage, 12 V DC
Operation with extra-low voltage, no mains voltage in cistern
With push-fit connection with cross-polarity protection
Interval flush preset
Adjustable interval flush
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Wired networkable with Geberit gateway via GEBUS converter
Wirelessly connectable with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Low-noise lifting mechanism
Electrical lifting device, self-calibrating

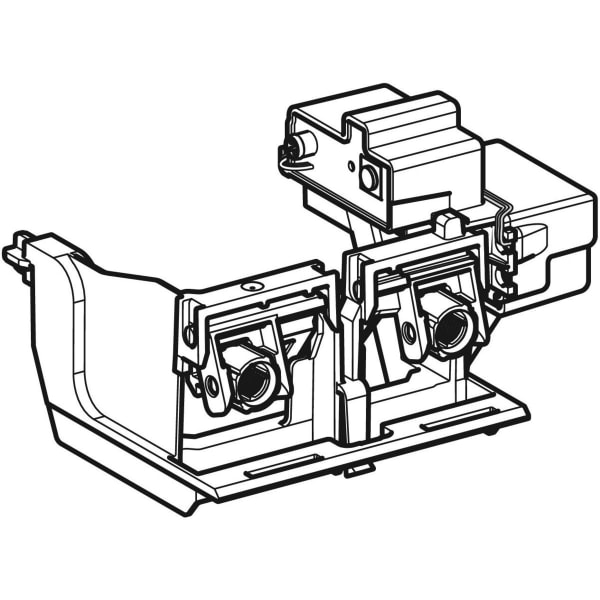

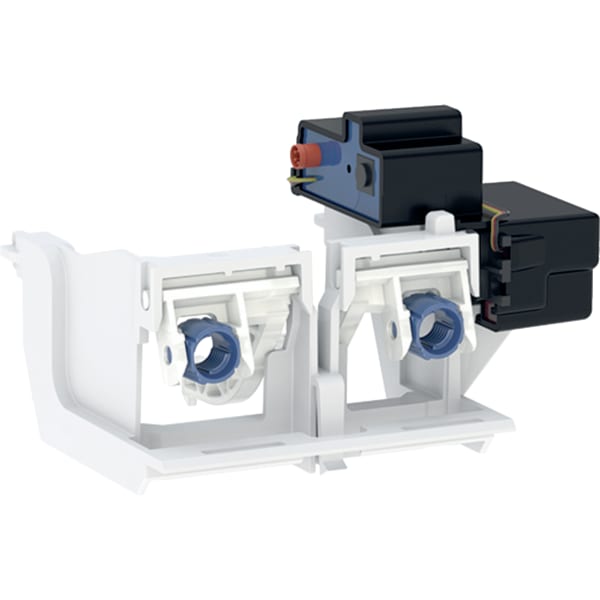

Support block with servomotor and lifting device, premounted
Control electronics with radio receiver
Actuator plate or cover plate
RF-controlled button
Geberit Power & Connect box
Geberit power supply unit for Power & Connect box
Power consumption: ≤ 4 W
