Description
Protection degree
IP45
Nominal voltage
85–240 V AC
Operating voltage
12 V DC
Mains frequency
50–60 Hz
Power consumption standby
0.15 W
Radio frequency
868.4 MHz
Radio frequency distance
10 m
Interval flush, adjustment range
1–168 h
Interval flush, factory setting
24 h
Interval flush time, adjustment range
1–200 s
Interval flush time, factory setting
5 s
Button shape
round
Click on an application purpose to search more products
For manual remote flush actuation of Sigma concealed cisterns 12 cm using pull-down rails with RF-controlled button
For single flush
For solid and drywall construction
Suitable for less-abled installation
For Sigma concealed cisterns 12 cm
Not suitable for use with Geberit inserts for in-cistern block
Click on a characteristic to search more products
Flush actuation using pull-down rail, wireless, radio
Single flush can be triggered via flush plate
Power supply via external power supply unit
Transformation of mains voltage to extra-low voltage, 12 V DC
Operation with extra-low voltage, no mains voltage in cistern
With push-fit connection with cross-polarity protection
Interval flush preset
Adjustable interval flush
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Wired networkable with Geberit gateway via GEBUS converter
Wirelessly connectable with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Low-noise lifting mechanism
Electrical lifting device, self-calibrating

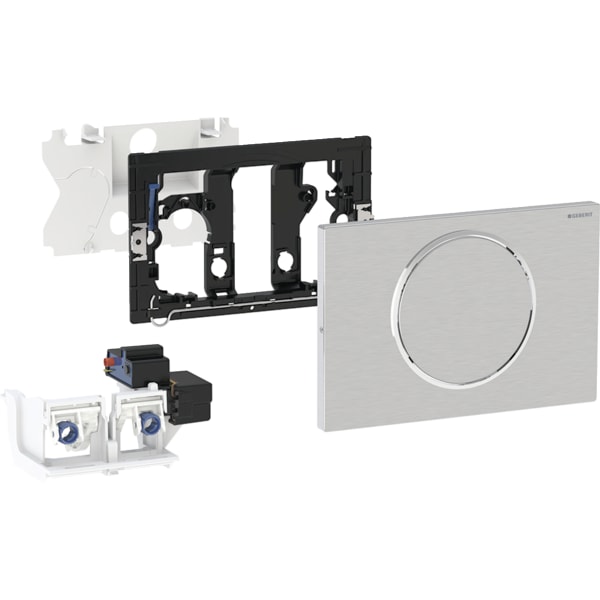

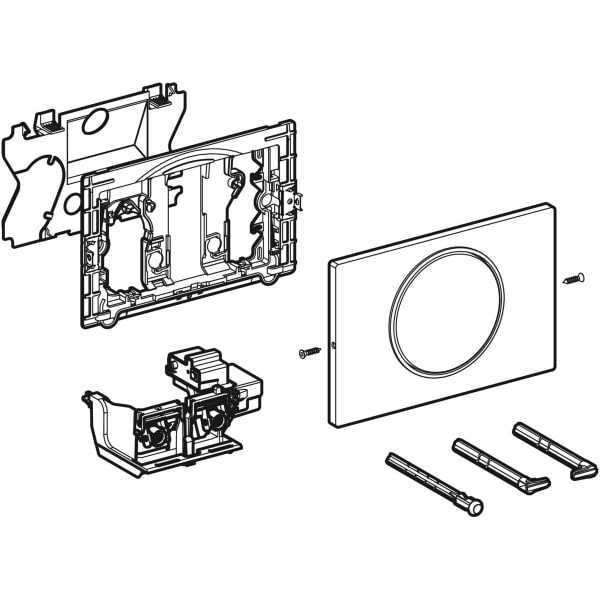

Screwable flush plate
Sigma10 flush plate
Mounting frame
Protection plate
Actuator rod
Support block with servomotor and lifting device, premounted
Control electronics with radio receiver
Fastening material
Geberit Power & Connect box
Geberit power supply unit for Power & Connect box

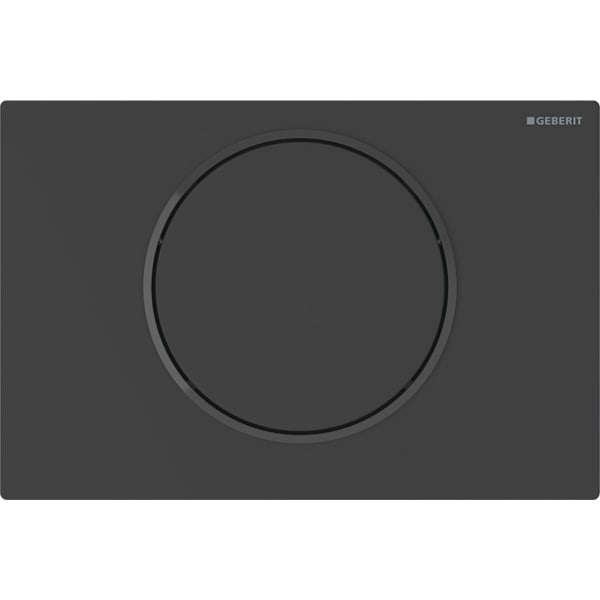

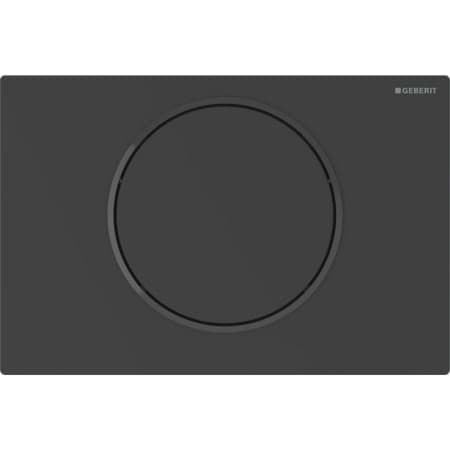

Colour / surface: Plate and button: black matt coated, easy-to-clean coated Design ring: black
Product material: Stainless steel

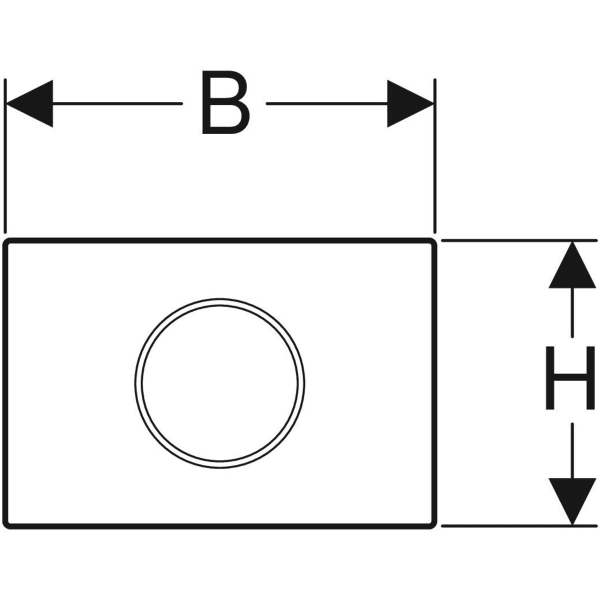

B: 24.6 cm
H: 16.4 cm

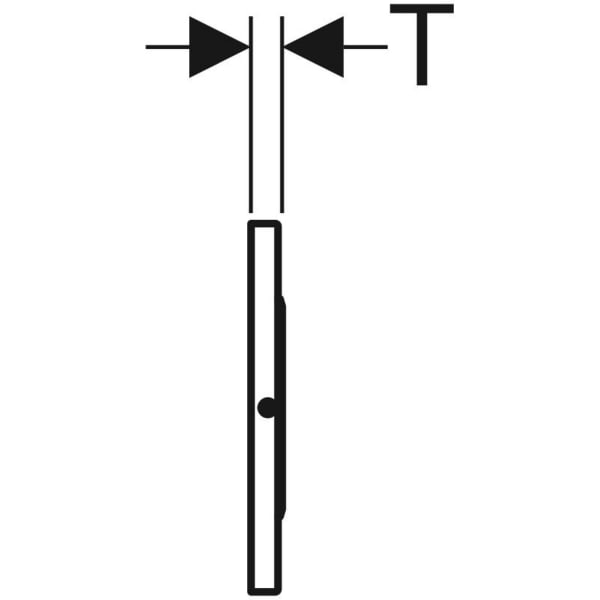

T: 1.5 cm
Power consumption: ≤ 4 W
