Product material
Lead-free silicon bronze (CuZn21Si3P)
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For connecting radiator valves
Exclusively suitable for heating and cooling
Application overview – Geberit FlowFit
Leaky if unpressed
Nickel-plated
Copper connection pipe
O-ring made of EPDM
Pressing nipple with transparent protective cap
Two-piece insulation box

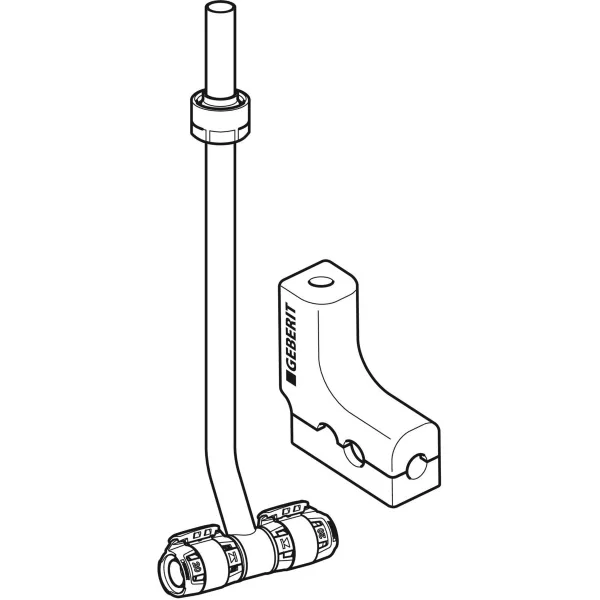

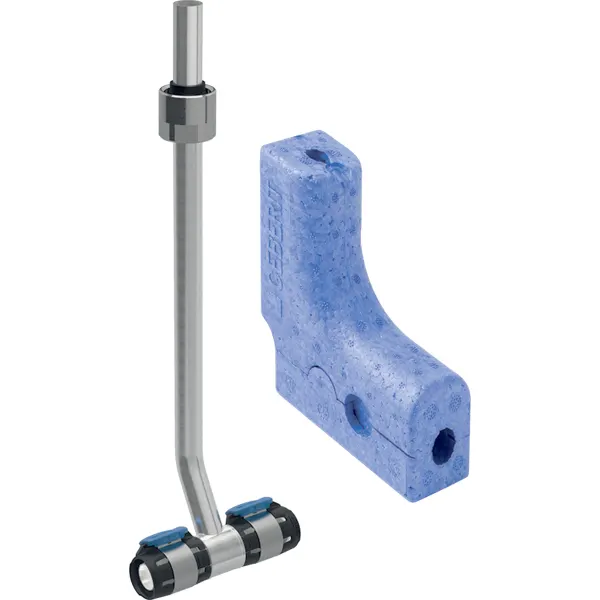

Metal pipe connection T-piece
Union connector for Euro cone G 3/4"

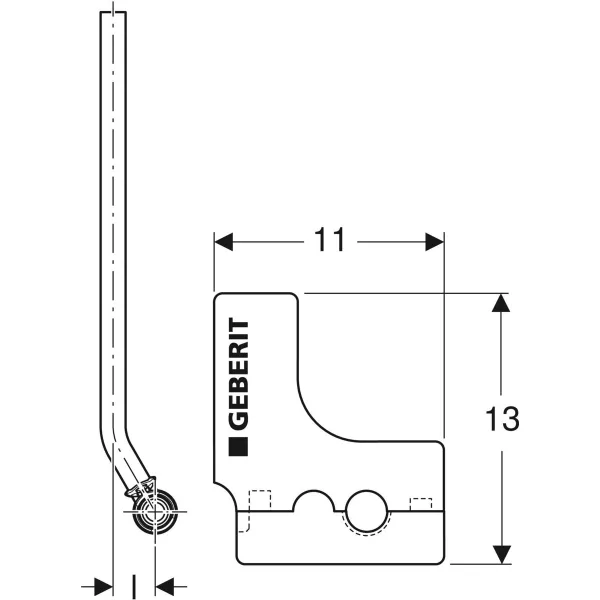

Insulation box made of EPP

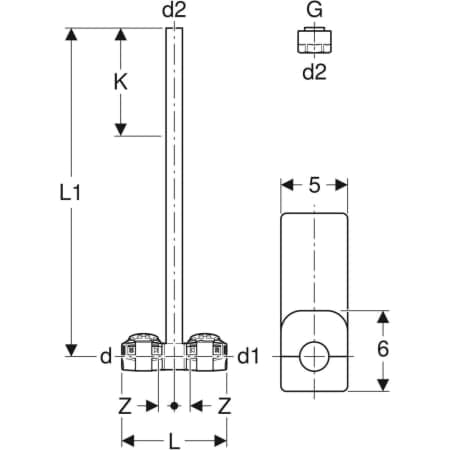

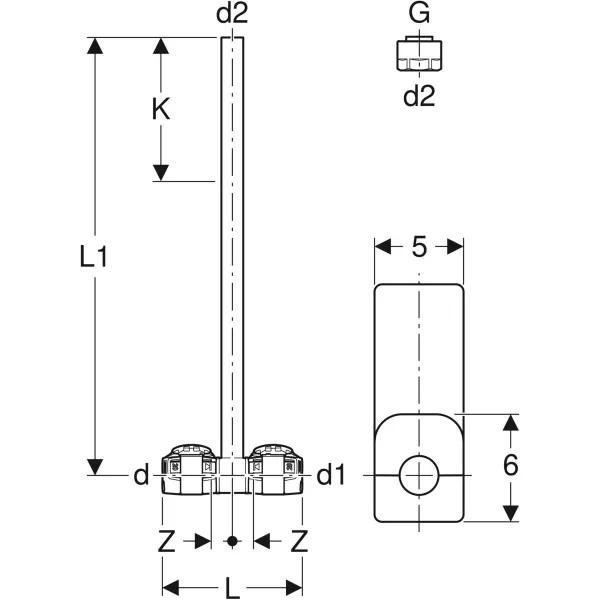

DN: 15 / 20
d, ø: 20 mm
G: 3/4 ″
d1, ø: 20 mm
d2, ø: 15 mm
arc: 90 °
L: 9 cm
L1: 30 cm
l: 2.5 cm
Z: 1.3 cm
K: 17 cm
