Product material
Lead-free silicon bronze (CuZn21Si3P)
Click on an application purpose to search more products
For cooling and heating water without antifreeze agent
For cooling and heating water with antifreeze agent
For skirting board systems
Exclusively suitable for heating and cooling
Application overview – Geberit FlowFit
Click on a characteristic to search more products
Pressing indicator
Leaky if unpressed
Inlet and return flow exchangeable
Nickel-plated
Lead-free
O-ring made of EPDM
Pressing connector with transparent protective cap
Installation completely in front of the wall

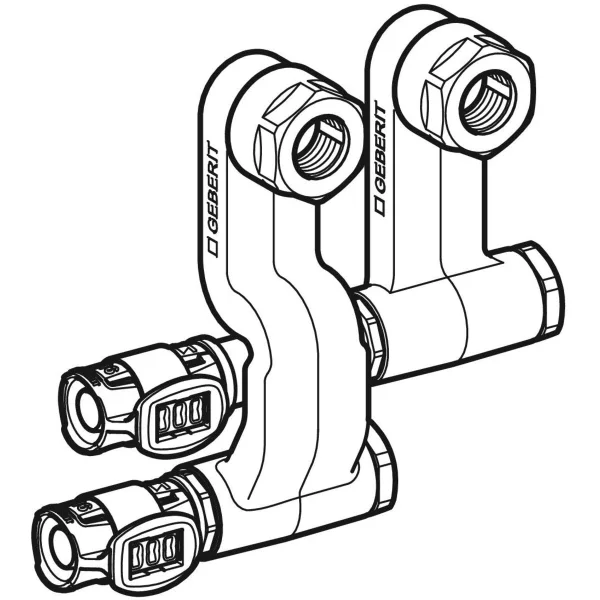

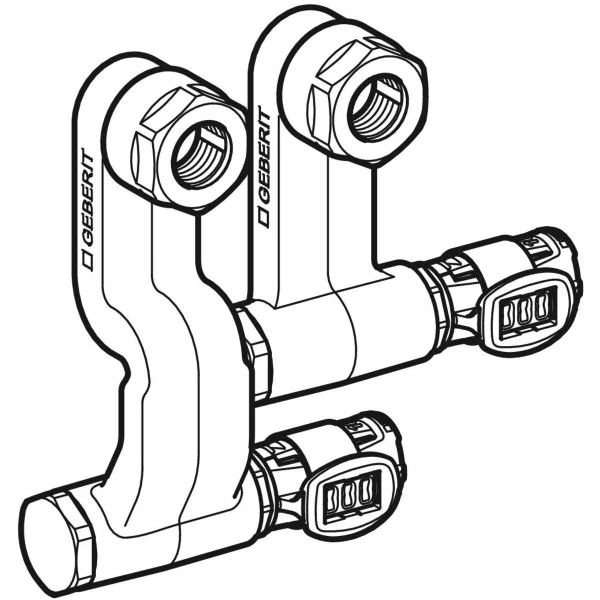

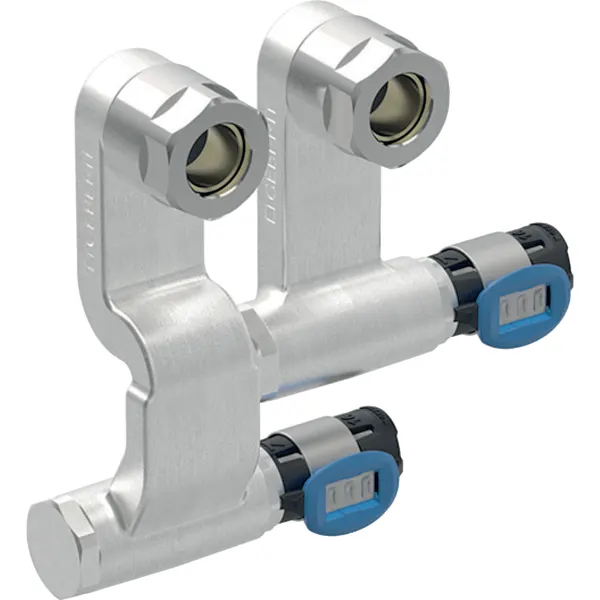

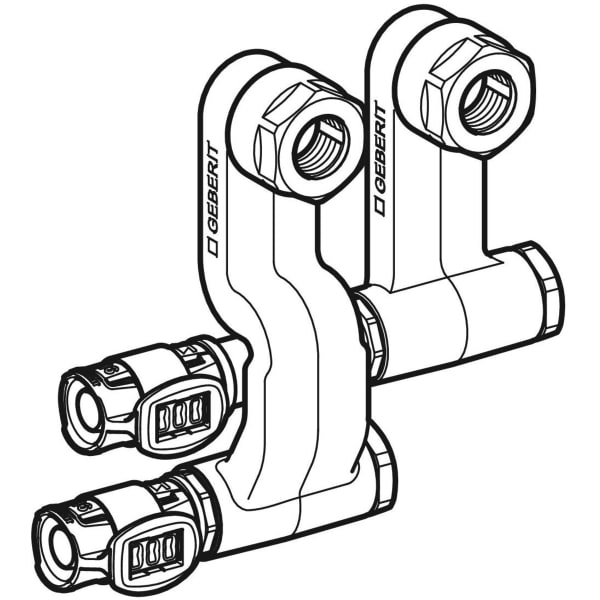

2 union connectors for Euro cone G 3/4"
Connector T-piece with long connection
Connector T-piece with short connection

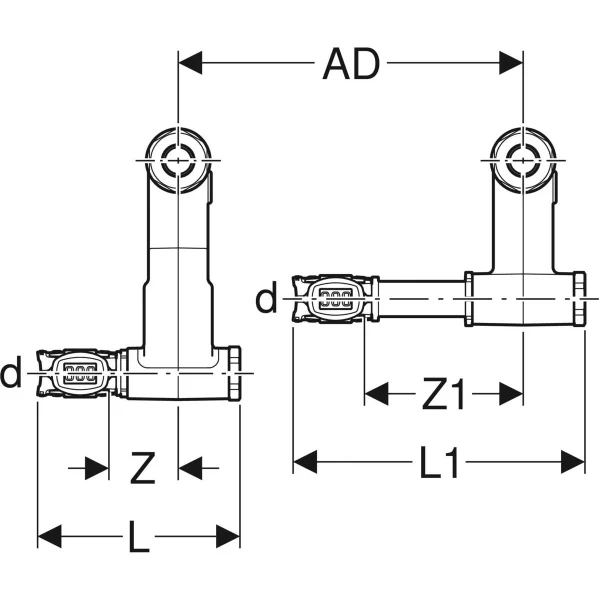

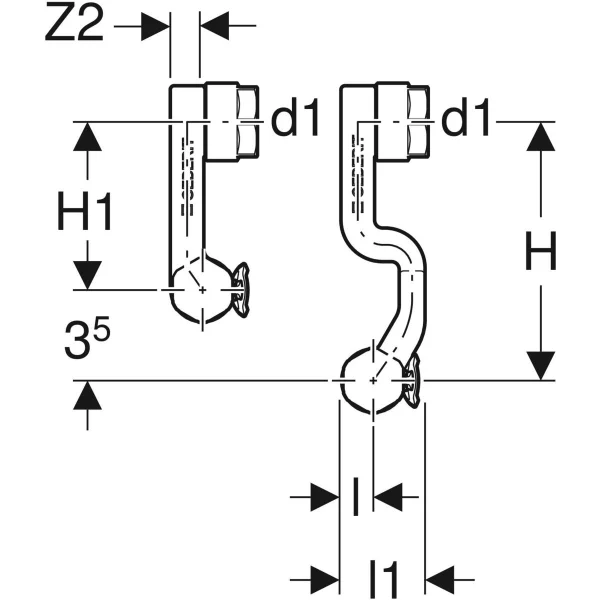

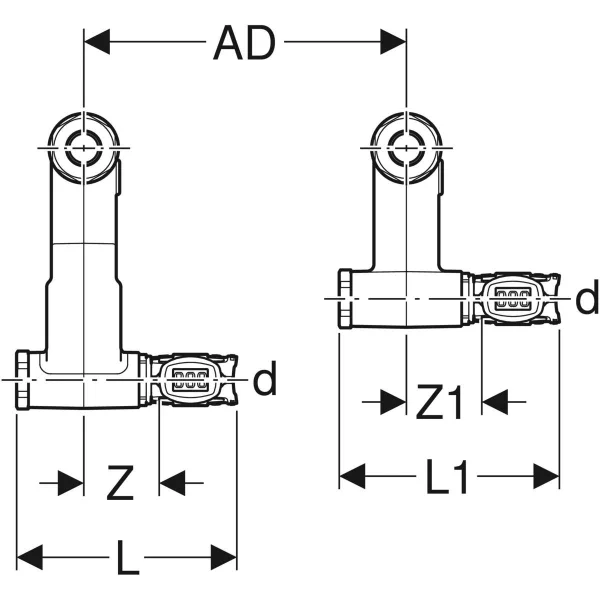

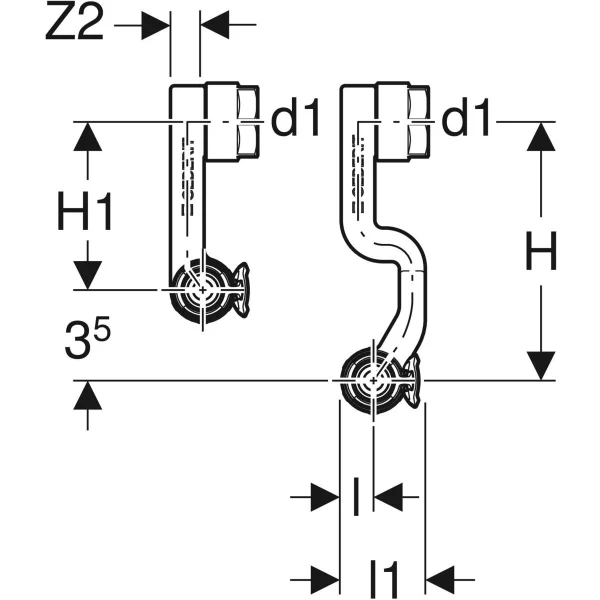

DN: 12
d, ø: 16 mm
d1, ø: 15 mm
arc: 90 °
AD: 5 cm
L: 9.3 cm
L1: 13.5 cm
l: 1.1 cm
l1: 2.4 cm
H: 10 cm
H1: 6.5 cm
Z: 3.1 cm
Z1: 7.3 cm
Z2: 1.3 cm
Connection: left
