material
Galvanised steel
For installation in Geberit GIS support systems for pre-walls, partition walls or free-standing walls
For connecting surface-mounted taps with 15.3 cm centre distance
Infinitely height-adjustable in the Geberit GIS support system
Galvanised crossbar
Crossbar with two quick fasteners
Self-adhesive, fleece-coated sealing disc
Protective plug for one-off pressure test with cold water up to a maximum of 15 bar / 1500 kPa

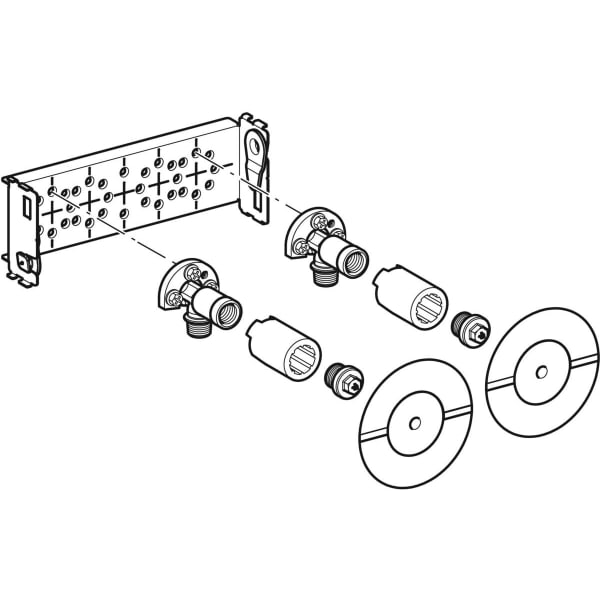

2 connection brackets Rp 1/2" / R 1/2", MF-capable
2 sound insulation pads
2 insulating sleeves
2 protective and marking plugs
2 sealing discs
Fastening material

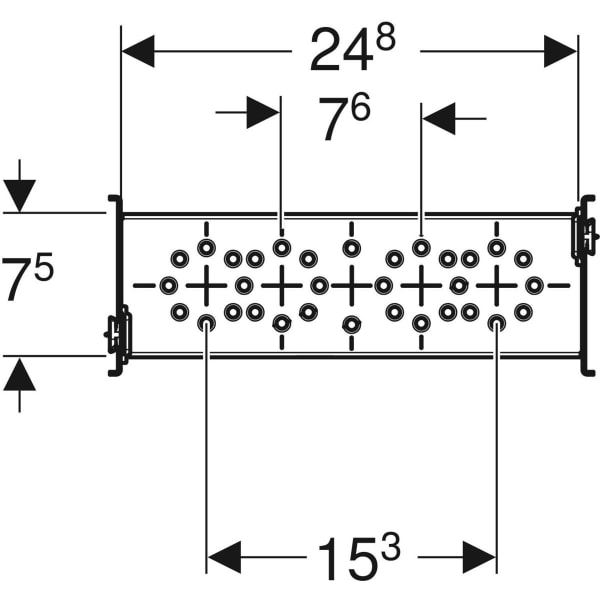

W: 24.8 cm
H: 7.5 cm

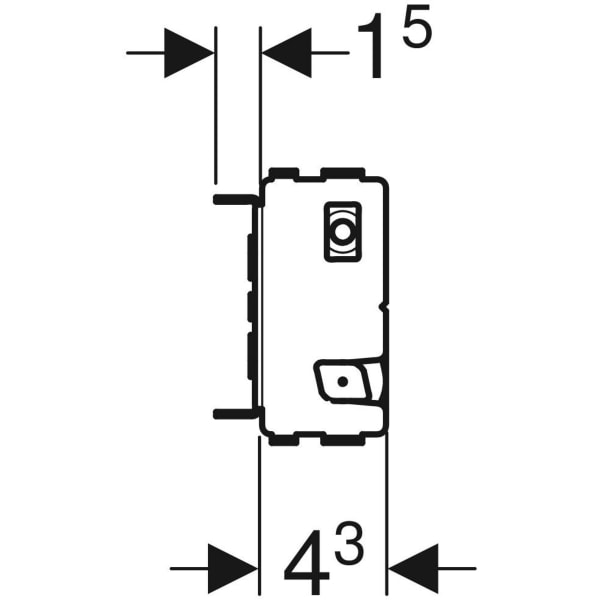

D: 4.3 cm
PU1: 1 pc.
PU2: 10 pcs.
PU3: 360 pcs.
