material
Steel

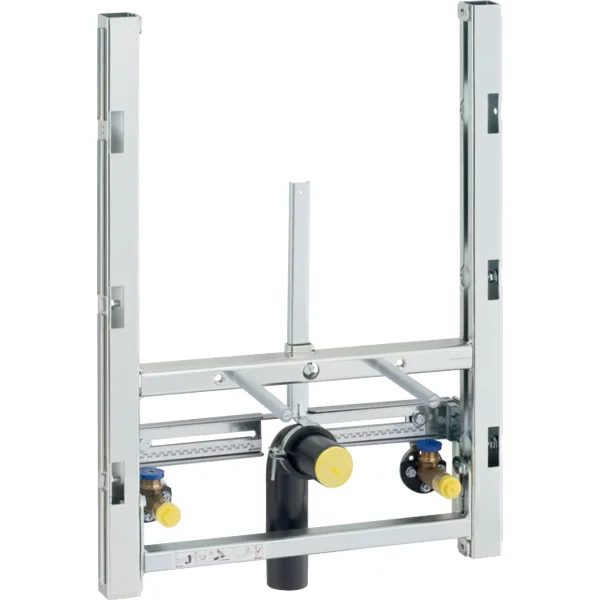

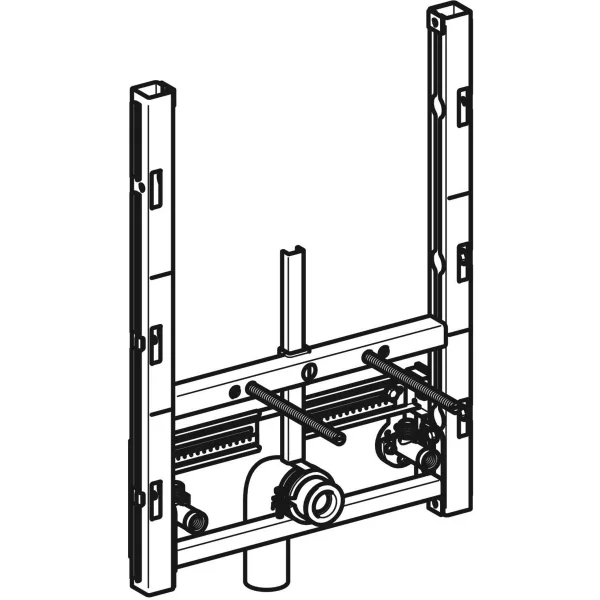

For installation in Geberit GIS support systems for pre-walls, partition walls or free-standing walls
For wall-mounted bidets with free-standing fitting

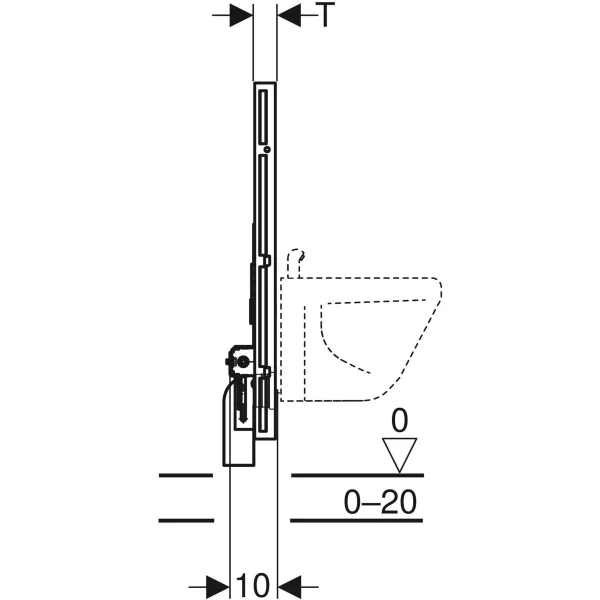

For floor structures 0-20 cm
Galvanised frame
Frame with four quick-release fasteners
Infinitely height-adjustable in the Geberit GIS support system

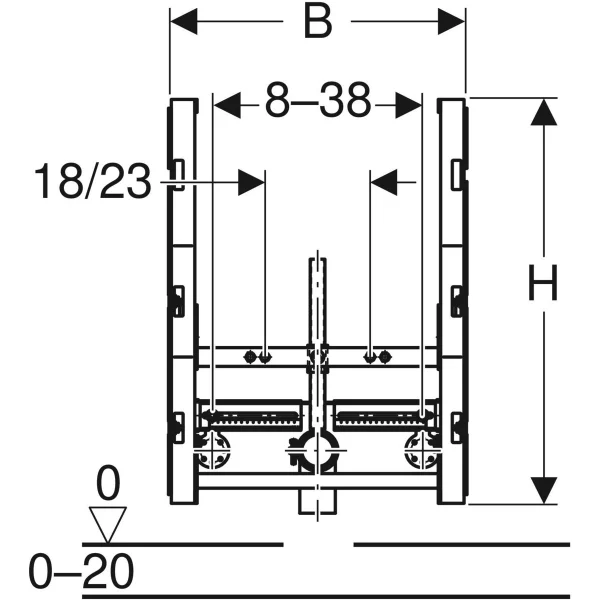

Fixing distance wall-mounted bidet 18 or 23 cm
Bidet attachment height-adjustable
Fastening for connection bend height-adjustable and sound-insulated
Width and height-adjustable tap fixings
Self-adhesive, fleece-coated sealing disc
Protective plug for one-off pressure test with cold water up to a maximum of 15 bar / 1500 kPa
2 connection brackets Rp 1/2" / R 1/2", MF-capable
2 sealing discs
2 sound insulation pads
2 insulating sleeves
3 Protection and marking plugs
Connection elbow made of PE-HD, ø 50 mm
Seal ø 44 / 32 mm
2 threaded rods M12
Fastening material
W: 50 cm
H: 69 cm
D: 4 cm
PU1: 1 pc.
PU2: 10 pcs.
