Description
Seal water height (mm)
50 mm
Click on an application to search for other products
For screed heights ≥ 90 mm at the inlet
For the drainage of floor-level showers
For bonded waterproofing
For installation in Geberit GIS support systems for pre-walls, partition walls or free-standing walls
Click on a property to search for other products
Quality controlled according to EN 1253-3
Planking thickness 10-40 mm
Suitable for tile structures on floors from 2-26 mm
Suitable for tile structures on walls from 2-35 mm
Adjustable sealing level for stress-free sealing connection
Drain connection on the side
Inlet height of the odour trap adjustable
Sealing fleece pre-assembled
Sealing fleece all round 10 cm, for connecting sealing systems
Connection pipe made of PE-HD, ø 50 mm
Building protection cover with integrated inlet plate
Fastening material
Prefabricated set
DN: 50
d, ø: 50 mm
Drainage capacity: 0.8 l/s

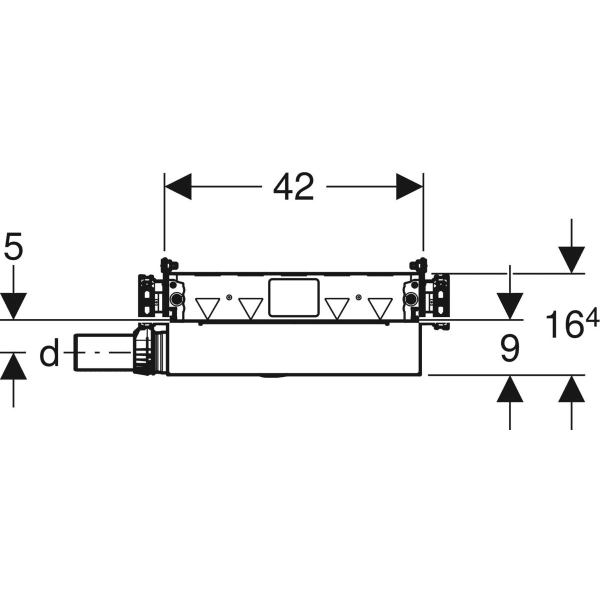

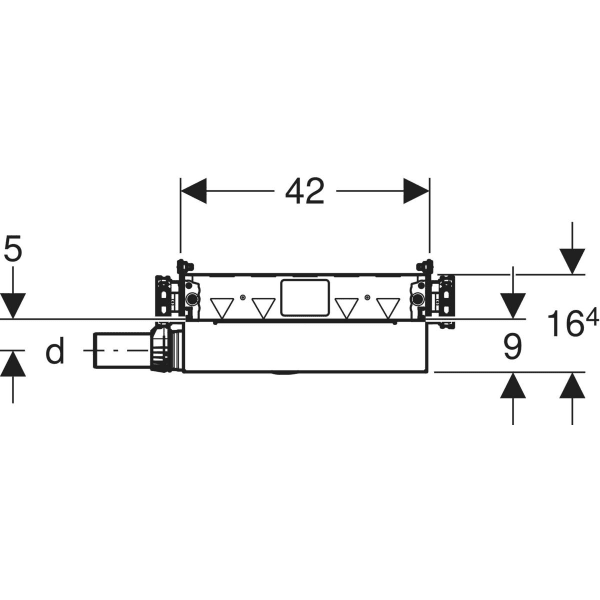

W: 42 cm
H: 16.4 cm

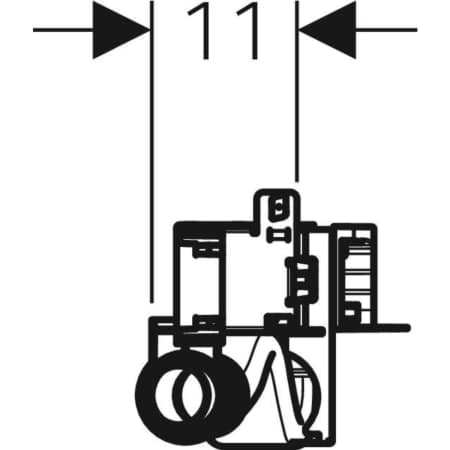

D: 11 cm
PU1: 1 pc.
PU2: 20 pcs.
