Flow pressure
10-1000 kPa
Water temperature max.
25 °C
Flush volume Factory setting
6 / 3 l
Large flush volume Setting range
4 / 4.5 / 6 / 7.5 l
Small flush volume Setting range
2-4 l
Flow rate at 3 bar
0.16 l/s
Minimum flow pressure for calculation flow rate
10 kPa
Calculation flow rate
0.09 l/s
Height adjustable
No
Click on an application to search for other products
For installation in Geberit GIS support systems for pre-walls, partition walls or free-standing walls
For wall-hung WCs with connection dimensions in accordance with DIN EN 33:2011-11
For wall-hung WCs with projection up to 70 cm
For dual flush
For floor structures 0-20 cm
Click on a property to search for other products
Galvanised frame
Frame with four quick-release fasteners
Infinitely height-adjustable in the Geberit GIS support structure
Connection elbow can be mounted in various depth positions without tools, adjustment range 45 mm
Sound-insulated connection bend fastening
Concealed cisterns with actuation from the front
Concealed cistern insulated against condensation
Immediate flushing possible with factory setting
Installation and maintenance work on the concealed cistern without tools
Water connection on the left side or left rear
Construction protection for service opening protects against moisture and dirt
Construction protection for service opening can be cut to length
With empty pipe for water supply line for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection
Power & Connect Box can be fitted
R 1/2" water connection, MasterFix and MeplaFix-compatible, with integrated angle valve and handwheel
Construction protection for service opening
Connection set for WC, ø 90 mm
90° connection elbow made of PE-HD, ø 90 mm
Transition sleeve made of PE-HD, ø 90 / 110 mm
4 protective and marking plugs
2 M12 threaded rods
Fastening material

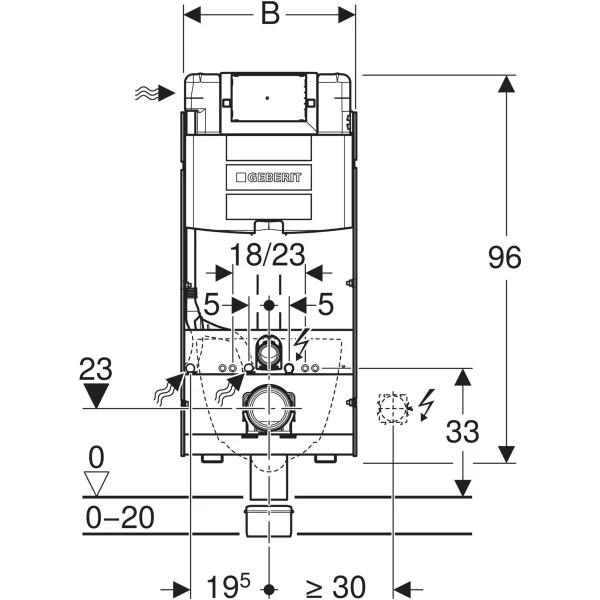

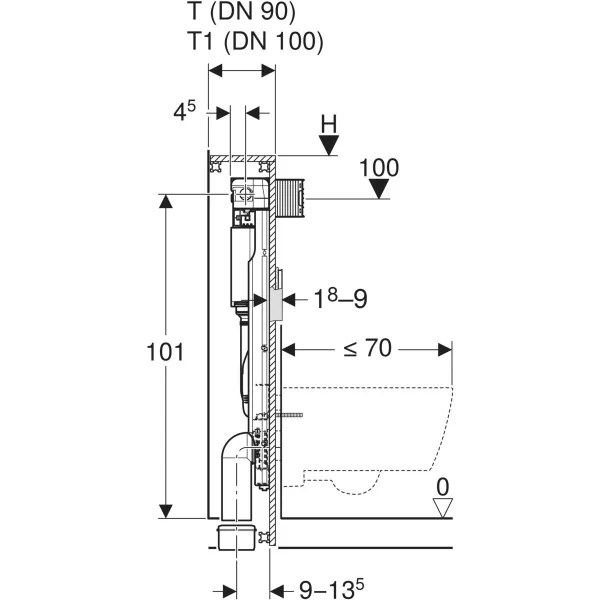

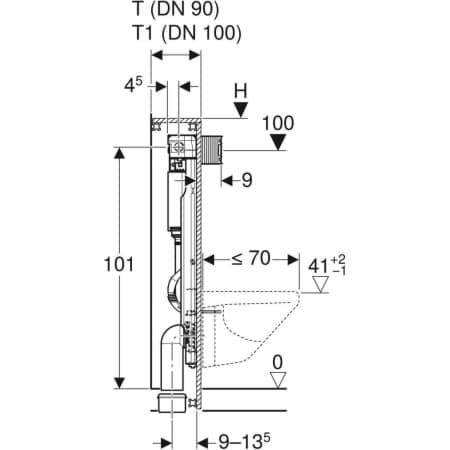

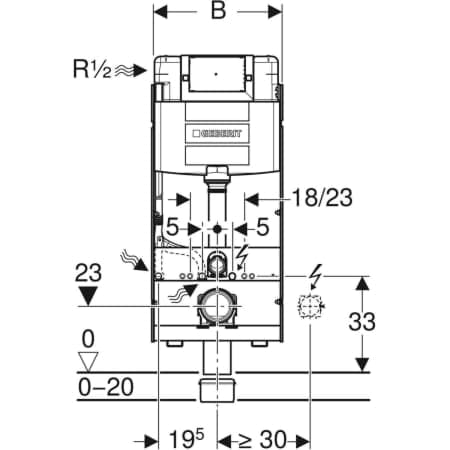

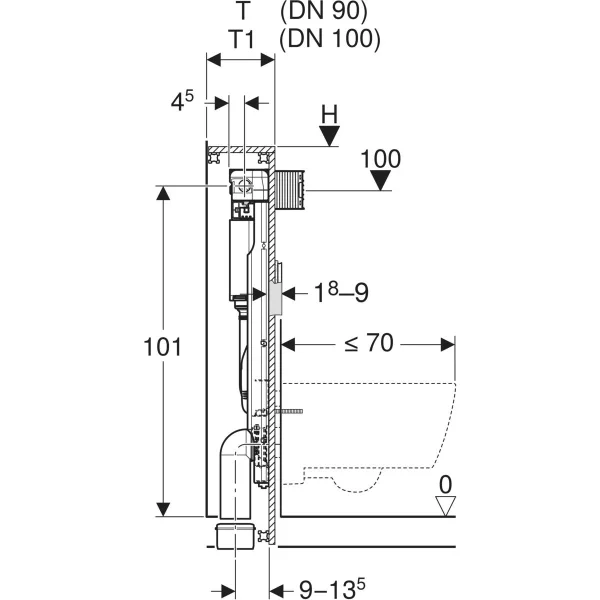

W: 42.4 cm
H: 114 cm
D: 16.5 cm
T1: 19.5 cm
PU1: 1 pc.
PU2: 16 pcs.
