Description
Flow pressure
10-1000 kPa
Water temperature max.
25 °C
Flush volume Factory setting
6 / 3 l
Large flush volume Setting range
4 / 4.5 / 6 / 7.5 l
Small flush volume setting range
2-4 l
Calculation flow rate
0.11 l/s
Minimum flow pressure for calculation flow rate
50 kPa
For installation in Geberit GIS support systems for pre-walls, partition walls or free-standing walls
Suitable for barrier-free construction
For wall-hung WCs with connection dimensions in accordance with DIN EN 33:2011-11

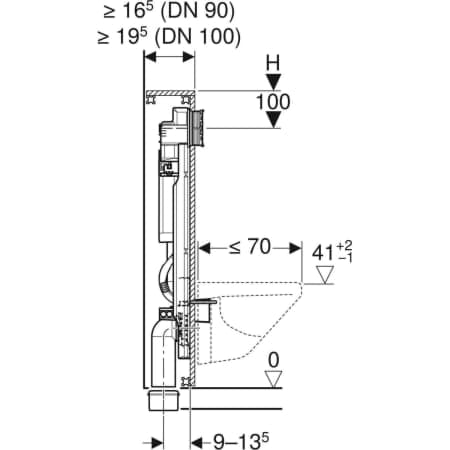

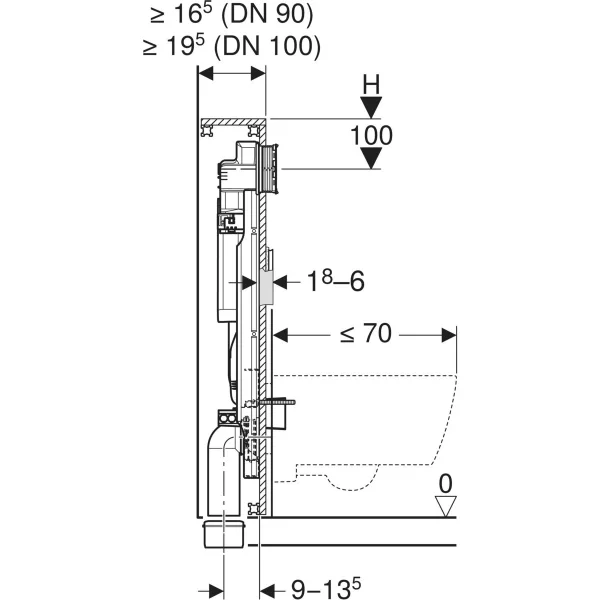

For wall-mounted WCs with projection up to 70 cm
For 1-quantity, 2-quantity or flush-stop flushing
For floor structures 0-20 cm
For concealed mains connection behind the WC ceramic appliance
Galvanised frame
Frame with four quick-release fasteners
Infinitely height-adjustable in the Geberit GIS support structure
Connection elbow can be mounted in various depth positions without tools, adjustment range 45 mm
Sound-insulated connection bend fastening
Concealed cisterns with actuation from the front
Concealed cistern insulated against condensation
Immediate flushing possible with factory setting
Installation and maintenance work on the concealed cistern without tools
Water connection at the rear or top centre
Construction protection for service opening protects against moisture and dirt
Construction protection for service opening can be cut to length
Prepared for installation of a 12 V power supply unit behind the WC ceramic appliance
With empty pipe for water supply line for Geberit AquaClean shower toilets and for connection cable
R 1/2" water connection, MasterFix and MeplaFix-compatible, with integrated angle valve and handwheel
Construction protection for service opening
Connection set for WC, ø 90 mm
90° connection elbow made of PE-HD, ø 90 mm
Transition sleeve made of PE-HD, ø 90 / 110 mm
4 protective and marking plugs
2 M12 threaded rods
Power & Connect Box
Empty pipe, length 0.32 m, for Geberit AquaClean connection
Construction protection for Power & Connect Box
Fastening material
Geberit power supply unit for Power & Connect Box

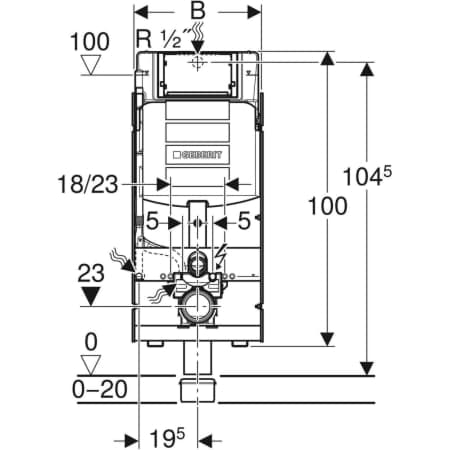

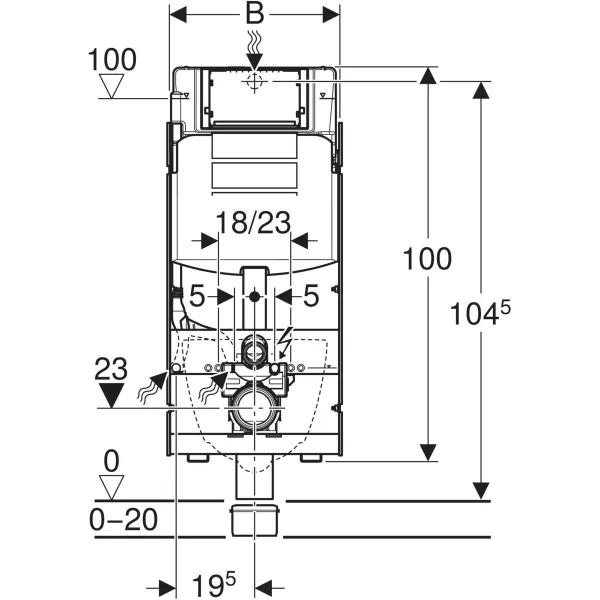

W: 42.4 cm
H: 114 cm
D: 16.5 cm
D1: 19.5 cm
PU1: 1 pc.
PU2: 16 pcs.
PU3: 48 pcs.
PU4: 96 pcs.
