Description
Protection class
IP45
Rated voltage
230 V AC
Operating voltage
12 V DC
Mains frequency
50 Hz
Power consumption stand-by
1 W
Flow pressure
50-1000 kPa
Cold water temperature max.
25 °C
Hot water temperature max.
70 °C
Flush volume factory setting for cistern (litres)
6 / 3 l
Large flush volume Setting range for cistern
4 / 4.5 / 6 / 7.5 l
Small flush volume Setting range for cistern
2-4 l
Flow rate at 3 bar
0.16 l/s
Minimum flow pressure for calculation flow rate
50 kPa
Calculation flow rate
0.11 l/s
Flushing capacity per solenoid valve
4 l/min
Interval flush Factory setting
72 h
Interval flush volume Factory setting
3 l
Flush volume per day and solenoid valve max.
40 l
Flush interval min.
24 h
Height adjustable
Yes
Click on an intended use to search for other products
For installation in Geberit GIS support systems for pre-walls, partition walls or free-standing walls
Suitable for barrier-free construction
For wall-hung WCs with connection dimensions in accordance with DIN EN 33:2011-11

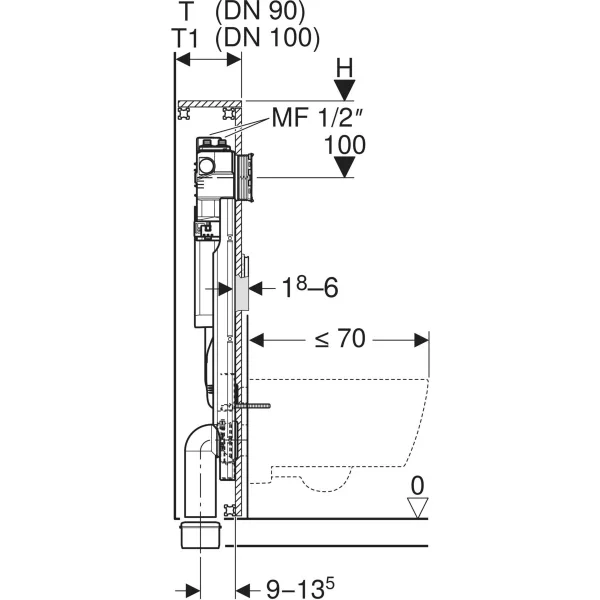

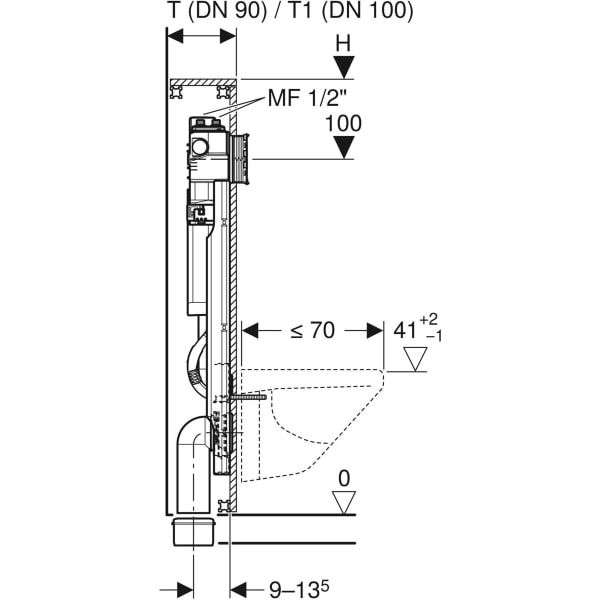

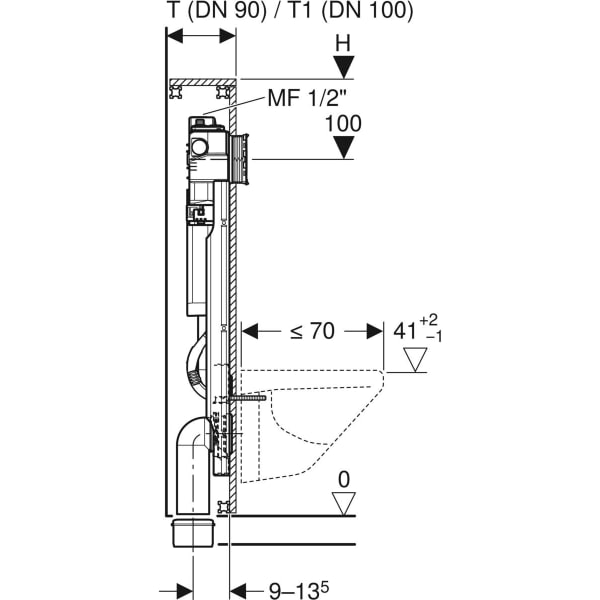

For wall-mounted WCs with projection up to 70 cm
For 1-quantity, 2-quantity or flush-stop flushing
For floor structures 0-20 cm
To prevent stagnation in drinking water pipes
For connection to Geberit bus
Click on a property to search for other products
Galvanised frame
Frame with four quick fasteners
Infinitely height-adjustable in the Geberit GIS support structure
Connection elbow can be mounted in various depth positions without tools, adjustment range 45 mm
Sound-insulated connection bend fastening
Concealed cisterns with actuation from the front
Concealed cistern insulated against condensation
Immediate rinsing possible with factory setting
Building protection for service opening protects against moisture and dirt
Building protection for service opening can be cut to length
With empty pipe for water supply line for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection
Power & Connect Box can be installed
Flush programmes selectable (time or interval)
Compatible with Geberit Control App
Device settings and operation with mobile device via integrated Bluetooth® interface
Function statistics can be called up via the Geberit Control app
Logs over 5000 flushing processes
Usage recognition

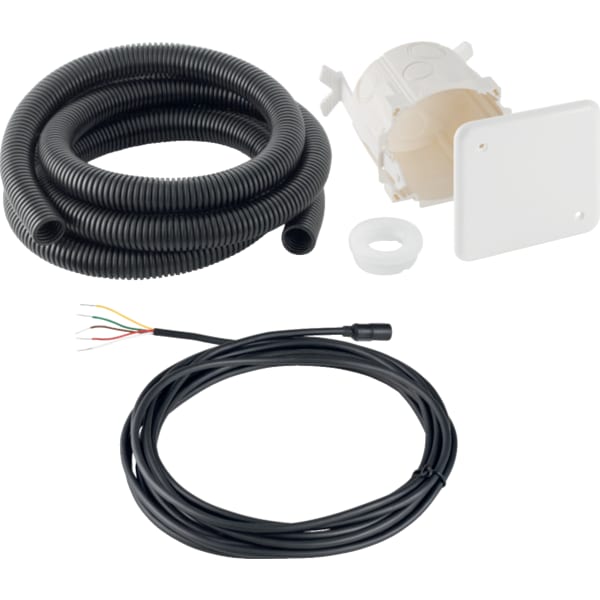

Digital I/O interface (central flush triggering, potential-free fault display, control of external solenoid valve)
Can be wired networked with Geberit Gateway via Geberit bus
Connection to Geberit bus directly or via converter
Compatible with Geberit Connect
External temperature sensor can be connected
Internal volume flow sensor can be connected
Built-in backflow sensor
Solenoid valve de-energised closed
Interference immunity for industrial operations in accordance with EN 61000-6-2
One connection for cold water R 1/2", MF-capable, with blue protective cap, top
Power supply via external power supply unit or via bus converter with integrated power supply unit
Building protection for service opening
Connection set for WC, ø 90 mm
90° connection bend made of PE-HD, ø 90 mm
4 protective and marking plugs
2 M12 threaded rods
Transition sleeve made of PE-HD, ø 90 / 110 mm
Solenoid valve unit with safety pin and flow limiter
Control unit
Fastening material

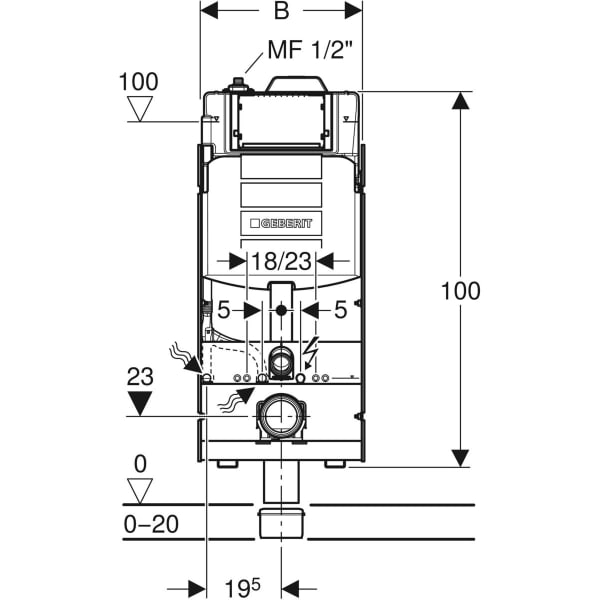

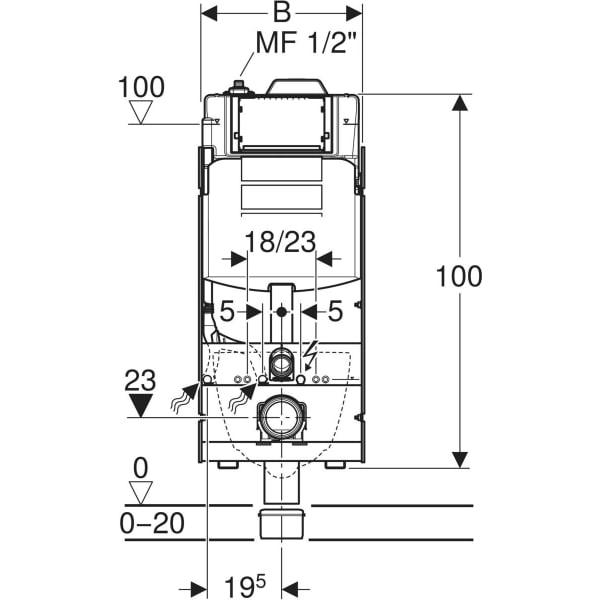

W: 42.4 cm
H: 125 cm
D: 16.5 cm
D1: 19.5 cm
Connection: 2 water connections
Power consumption: 7.2 W
PU1: 1 pc.
PU2: 16 pcs.
