material
Galvanised steel
For installation in Geberit GIS support systems for pre-walls, partition walls or free-standing walls
For connecting surface-mounted taps
For connecting block taps
Infinitely height-adjustable in the Geberit GIS support structure
Galvanised traverse
Crossbar with four quick-release fasteners
Self-adhesive, fleece-coated sealing disc
Can be mounted vertically and horizontally
Two connection brackets can be fitted
Protective plug for one-off pressure test with cold water up to a maximum of 15 bar / 1500 kPa
Connection bracket Rp 1/2" / R 1/2", MF-capable
Sound insulation pad
Insulating sleeve
Protective and marking plugs
Sealing disc
Fastening material

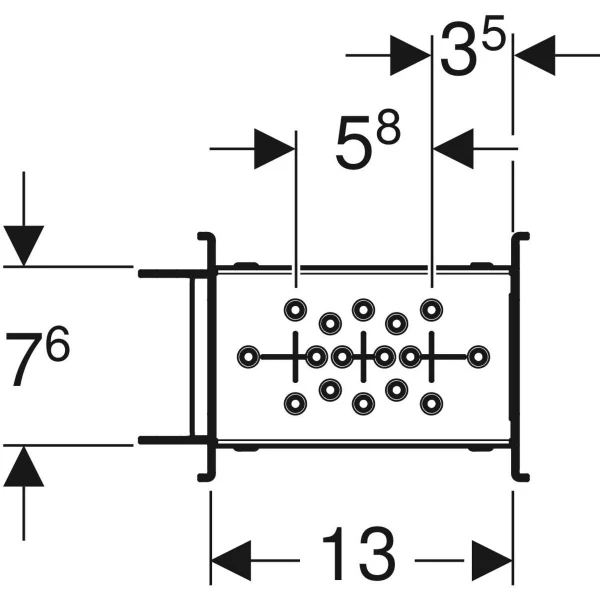

W: 13 cm
H: 7.6 cm

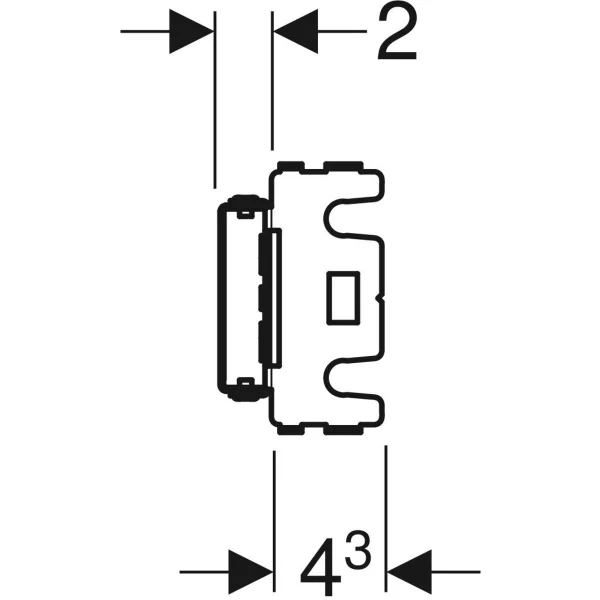

D: 4.3 cm
PU1: 1 pc.
PU2: 10 pcs.
