Description
Flow pressure
100-800 kPa
Test pressure water max.
1600 kPa
Test pressure air / inert gas max.
300 kPa
Water temperature max.
30 °C
Flow rate at 1 bar without flow limiter
0.3 l/s
Flow rate at 1 kPa with flow limiter
0.24 l/s
Material
steel
Height adjustable
No
Click on an application to search for other products
For brick walls
For installation in partial or room-height pre-wall installations
For mounting urinals
For Preda urinals
For Selva urinals
For Tamina urinals
For Narva urinals
For the installation of Geberit urinal flush controls
Click on a feature to search for other products

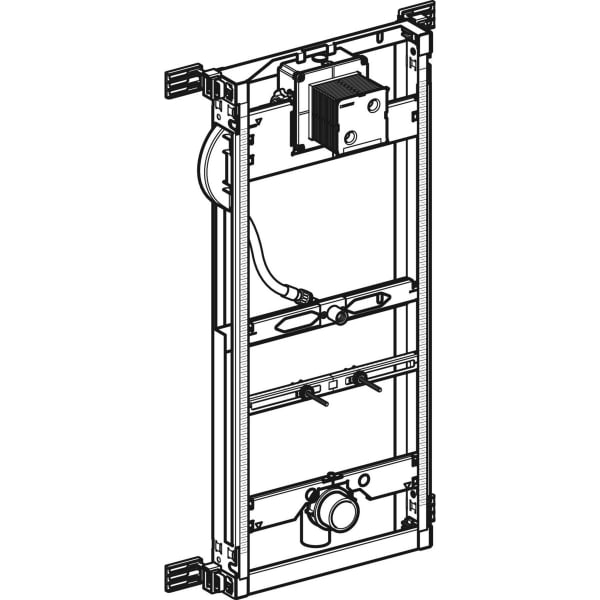

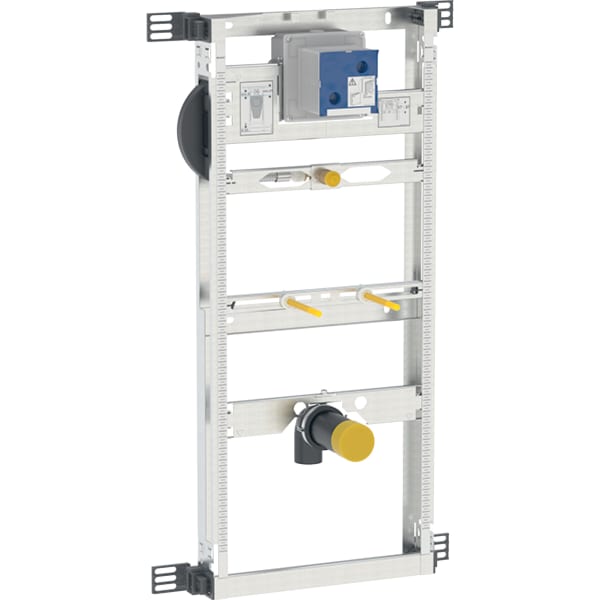

Galvanised mounting frame
Mounting frame with four fixing brackets

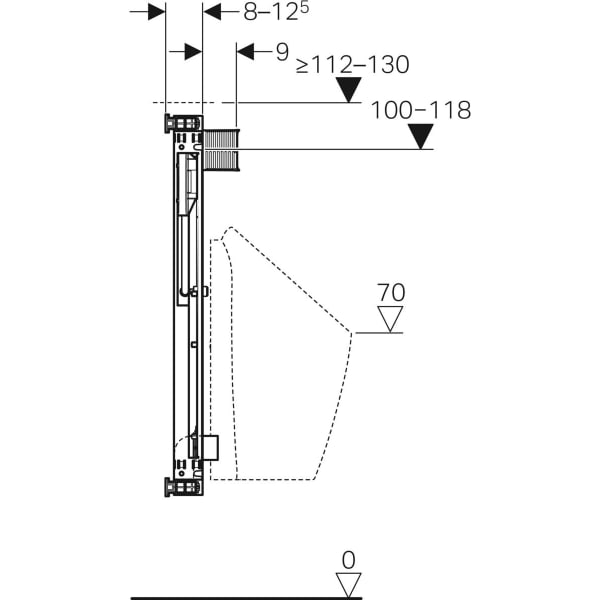

Mounting depth adjustable, 8-12.5 cm
Mounting depth without fixing brackets 7.5 cm
Construction protection for service opening protects against moisture and dirt
Element height adjustable to urinal, 109-127 cm
Connection positions set for Preda urinal
Universal flush-mounted housing for Geberit urinal flush controls
Connection terminal for electrical connection in the flush-mounted housing
Water connection on the right of the flush-mounted housing
Water connection MasterFix and MeplaFix compatible
Connection bracket can be fitted without tools
Shut-off valve with throttle, pre-assembled
With built-in empty pipe for flushing the line
Construction protection for service opening 10.5 x 10.5 cm can be cut to length without tools
Bendable flushing hose
Flushing hose with guide to prevent standing water
Fastening for Rp 1/2" inlet adjustable in height and sideways
Fastening for connection elbow, height-adjustable and sound-insulated
M8 urinal fixings, width and height adjustable
Crossbars with centre markings, adjustable without tools
Connection position markings for Preda and Selva urinal
Additional fastening for urinal possible with accessories
R 1/2" water connection
Construction protection for service opening
Urinal odour trap ø 50 mm, with seal on urinal
Connection bend made of PE-HD, ø 50 / 63 mm
Seal ø 57 / 50 mm
2 protective plugs
2 M8 threaded rods
Fixing material

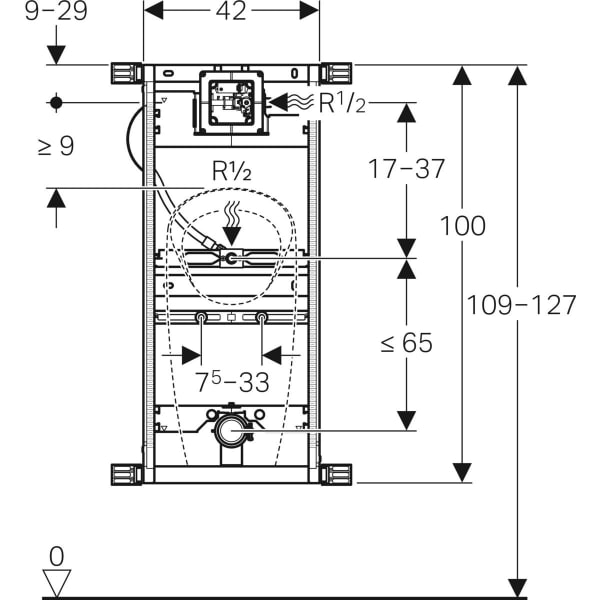

W: 42 cm
H: 100 cm
D: 8 cm
PU1: 1 pc.
