Flow pressure
10-1000 kPa
Water temperature max.
25 °C
Flush volume Factory setting
6 / 3 l
Large flush volume Setting range
4 / 4.5 / 6 / 7.5 l
Small flush volume setting range
2-4 l
Flow rate at 3 bar
0.16 l/s
Minimum flow pressure for calculation flow rate
10 kPa
Calculation flow rate
0.09 l/s
Material
steel
Click on an application to search for other products
For brick walls
For installation in partial or room-height pre-wall installations
For wall-hung WCs with connection dimensions in accordance with DIN EN 33:2011-11
For 1-quantity, 2-quantity or flush-stop flushing
Click on a property to search for other products

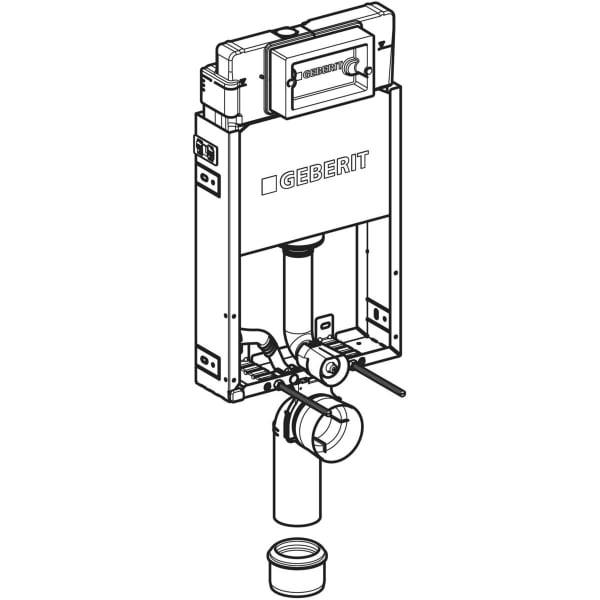

Galvanised mounting frame
Mounting frame with four fixing lugs
Connection elbow can be mounted without tools
Mounting Connection elbow can be mounted from the front without tools
Concealed cisterns with actuation from the front
Concealed cistern insulated against condensation
Immediate rinsing possible with factory setting
Water connection at rear or top centre
Connection hose can be connected to the angle valve without tools
With empty pipe for water supply line for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection
R 1/2" water connection, MasterFix and MeplaFix-compatible, with integrated angle valve and adapter ring
Construction protection for service opening
2 spacer bolts
90° connection bend made of PE-HD, ø 90 mm
Transition sleeve made of PE-HD, ø 90 / 110 mm
Connection set for WC, ø 90 mm
2 protective plugs
2 threaded rods M12
Fixing material

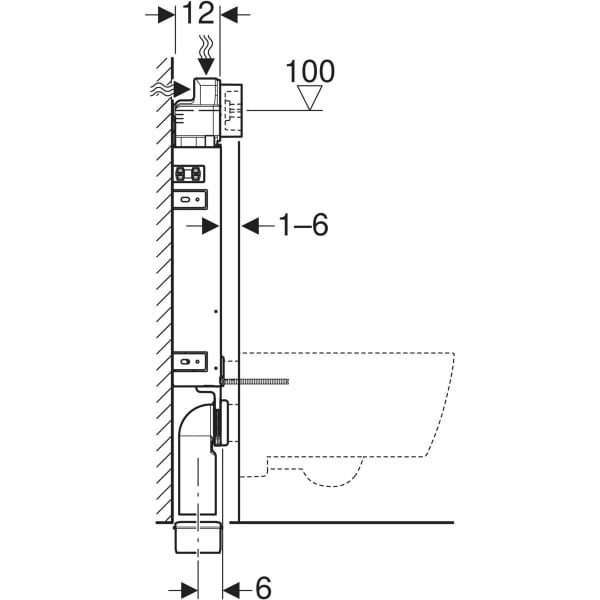

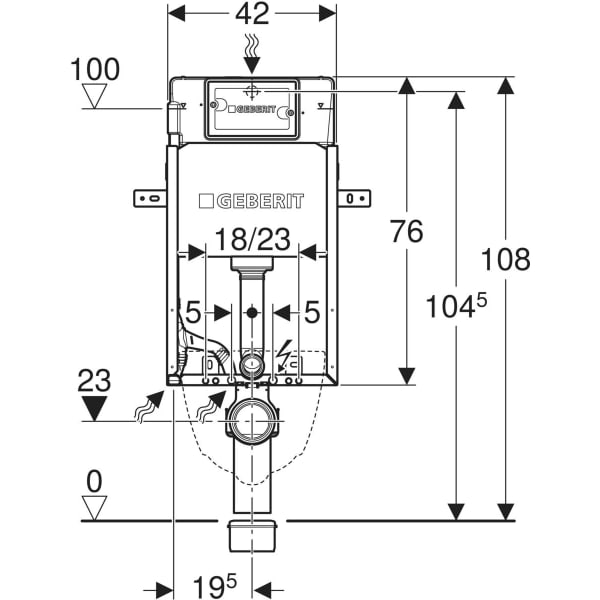

W: 42 cm
H: 108 cm
D: 12 cm
PU1: 12 pcs.
PU2: 60 pcs.
PU3: 120 pcs.
PU4: 240 pcs.
