Werkstoff
CrNiMo-Stahl 1.4401 (DIN EN 10088)
LABS-frei
Form B1 (erhöhte Dichtleiste mit Standarddichtfläche), EN 1092-1
Gültig für System: Geberit Mapress Edelstahl (LABS-frei), Geberit Mapress Edelstahl (FKM blau), Geberit Mapress Edelstahl (Gas), Geberit Mapress Edelstahl, Geberit Mapress Therm

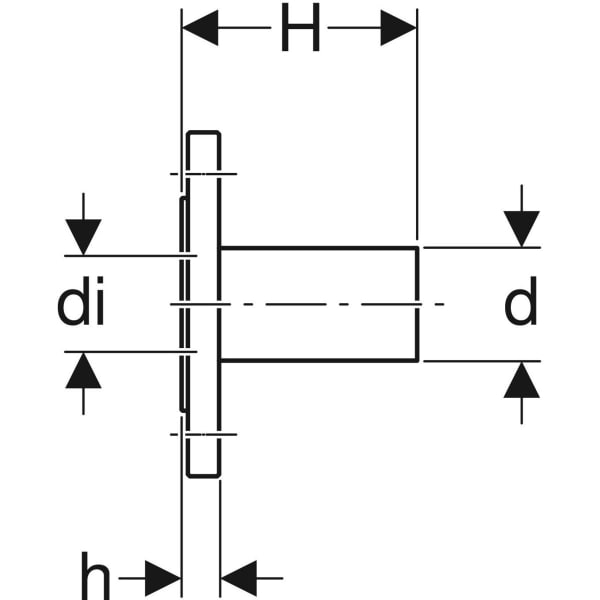

DN: 25
d, ø: 28 mm
di, ø: 25 mm

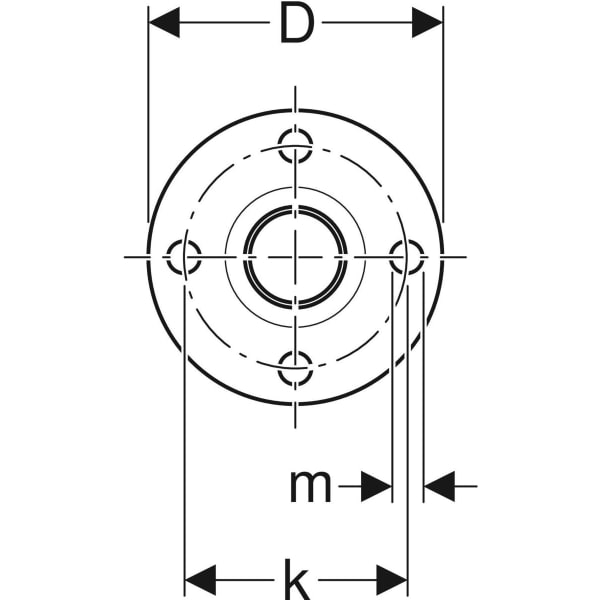

D: 11.5 cm
k: 85 mm
m: 14 mm
H: 8.1 cm
h: 1.8 cm
n: 4 St.
PN: 10 / 16 bar
VE1: 1 St.
