Description
Flow pressure
10-1000 kPa
Water temperature max.
25 °C
Flush volume Factory setting
6 / 3 l
Large flush volume Setting range
4.5 / 6 l
Small flush volume
3 l
Flow rate at 3 bar
9.6 l/min
Minimum flow pressure for calculation flow rate
50 kPa
Calculation flow rate
0.11 l/s
Click on an application to search for other products
For floor connections
For renovations, conversions and new builds
For wall connections with a drain height of 18 cm
For replacing low-hanging wall-mounted cisterns
For replacing floor-standing WCs with surface-mounted cisterns
For connecting Geberit AquaClean Tuma complete WC system for floor-standing WCs
For connecting Geberit AquaClean WC top units, with accessories
For installation on finished floors
For installation in front of drywall and solid walls
Click on a feature to search for other products
2-quantity flush
Compensation of construction tolerances possible
Cistern insulated against condensation
Brushed aluminium side panelling
Self-supporting
Adjustable flush volume
Lateral water connection
Water connection set with angle valve R 1/2"
Flush elbow extension 160 mm
Collar made of EPDM, ø 44 / 55 mm
P-connection elbow made of PP, ø 90 mm
Transition sleeve made of PE-HD, ø 90 / 110 mm
Plinth cover
Fixing material for drywall
Fixing material

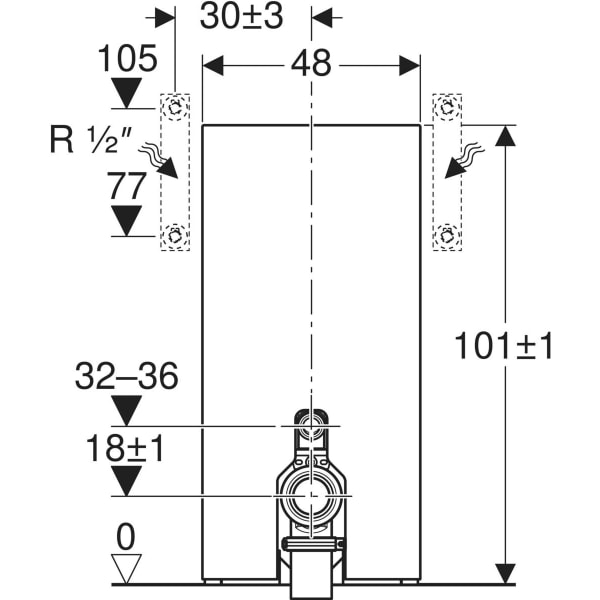

Colour / surface: Front cladding: White glass Side cladding: Aluminium
W: 48 cm
H: 101 cm
D: 10.6 cm
PU1: 1 pc.
