Seal water height (mm)
50 mm
Click on an application to search for other products
For installation inside buildings
For draining Geberit shower channels from the CleanLine range
For bonded waterproofing
For screed heights ≥ 90 mm at the inlet
For use as a floor drain with horizontal outlet
Click on a property to search for other products
Quality-monitored in accordance with EN 1253-3
Pre-assembled sealing fleece
Sealing fleece all round 10 cm, for connecting sealing systems
EPS base body for sound decoupling and odour trap absorption
Protective building cover with extraction edge
Thin-bed attachment
Odour trap made of PE-HD
Fixing material
Spacer plate, 2 cm thick
Shower channel from the CleanLine range

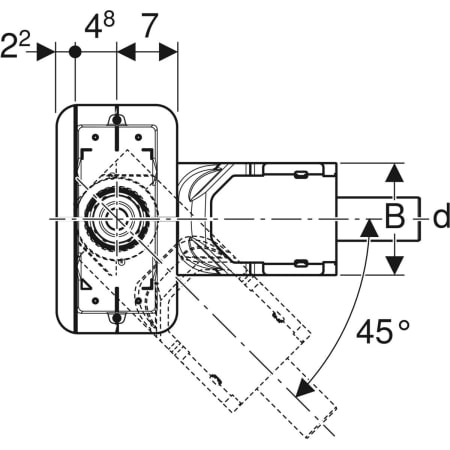

DN: 50
d, ø: 50 mm
Drainage capacity: 0.8 l/s
L: 30 cm
L1: 35.8 cm
W: 13 cm
H: 9 cm
H1: 9-22 cm
h: 4.2 cm
PU1: 1 pc.
PU2: 4 pcs.
PU3: 60 pcs.
