material
Brass CW617N
Click on an application to search for more products
For chemicals and technical fluids
For hot and cold drinking water
For cooling and heating water without antifreeze
For cooling and heating water with antifreeze
For compressed air (purity class oil 0-3)
For negative pressure
For inert gases (e.g. nitrogen)
For building services, industry and shipbuilding
Overview of applications - Geberit PushFit
Click on a property to search for other products
Push-fit indicator green
O-ring made of EPDM
Plug connector with transparent protective cap

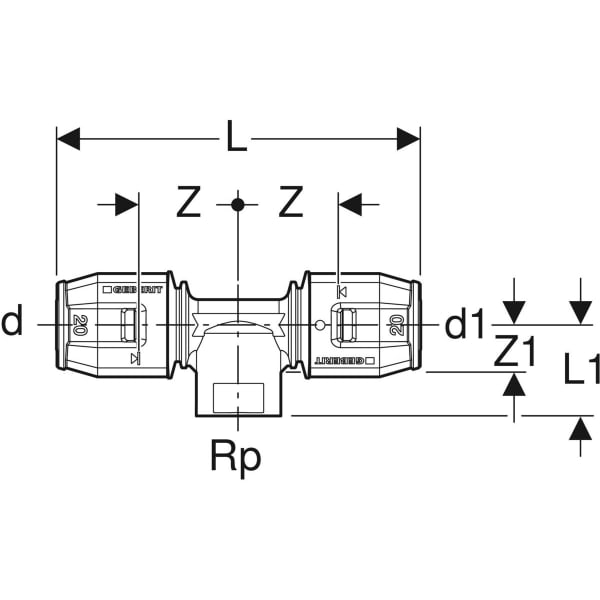

DN: 12 / 15
d, ø: 16 mm
Rp: 1/2 ″
d1, ø: 16 mm
arc: 90 °
L: 11.4 cm
L1: 2.6 cm
Z: 3.1 cm
Z1: 1.1 cm
PU1: 1 pc.
PU2: 10 pcs.
