Depth of water seal
50 mm
Click on an application purpose to search more products
For installation inside buildings
For floorings made of polyvinyl chloride (PVC) up to a strength of 3 mm
For drainage of floor-even showers
Suitable for less-abled installation
For screed height ≥ 114 mm at inlet
For use as floor drain with horizontal outlet
Click on a characteristic to search more products
Quality-monitored in accordance with EN 1253-3
Grating made of stainless steel
Base unit made of EPS, for sound decoupling and receiving the trap
Load-bearing capacity, class K 3 (3 kN)
Protection box cover with installation tools
Comb insert
Grating
Trap made of PE-HD
Fastening material
Distance plate, thickness 2 cm
Blade for floorings made of vinyl (PVC)

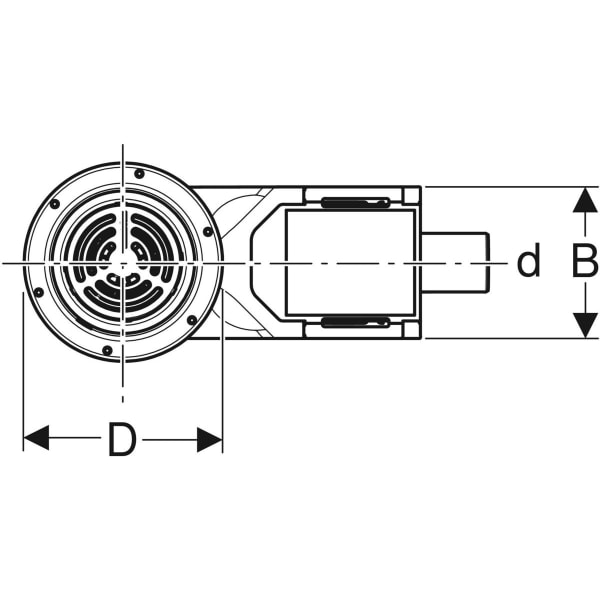

DN: 50
d, ø: 50 mm
Discharge rate: 0.8 l/s
D: 17 cm

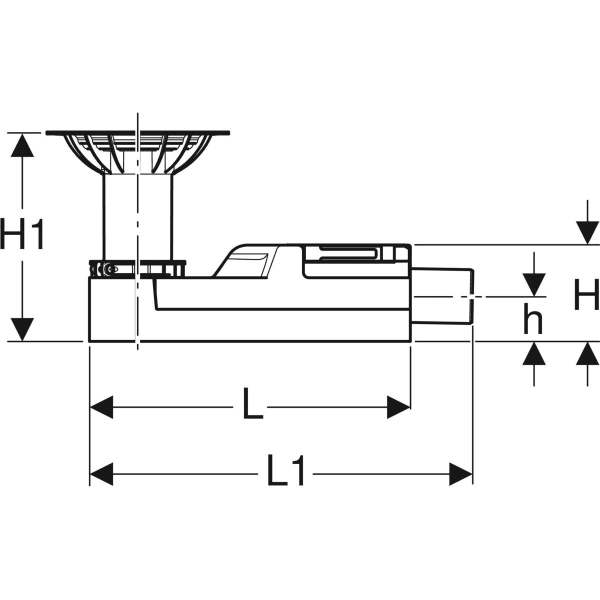

L: 30 cm
L1: 35.8 cm
B: 13 cm
H: 9 cm
H1: 11.4–21.5 cm
h: 4.2 cm
