Description
Discharge rate with 120 mm head
0.4 l/s
Barrier water height (mm)
50 mm
Click on an application to search for other products
For shower trays with valve hole ø 52 mm
For shower trays without overflow
For use as a floor drain with horizontal outlet
Click on a property to search for other products
Quality controlled according to EN 274-3
Drain valve
Odour trap
Connection elbow made of PE-HD, ø 50 mm
Fastening material

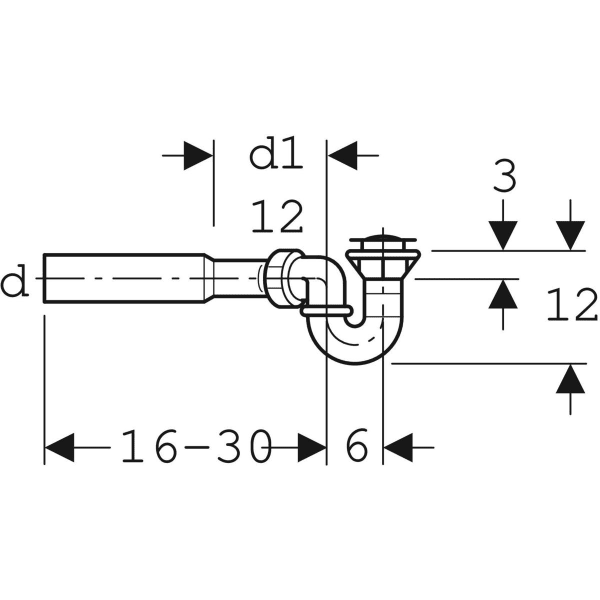

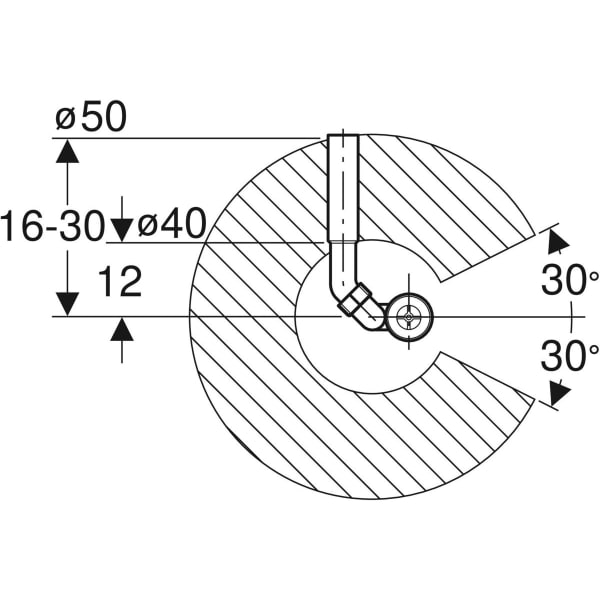

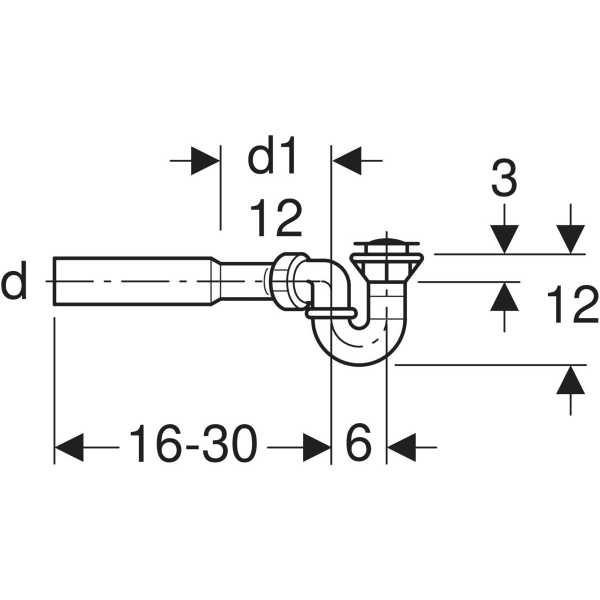

DN: 50
d, ø: 50 mm
d1, ø: 40 mm
H: 12 cm
PU1: 1 pc.
PU2: 10 pcs.
PU3: 30 pcs.
PU4: 240 pcs.
