Mounting temperature
-10 - +40 °C
material
PP-MX
Thermal expansion
0.08 mm/(m-K)
Click on an application to search for other products
For draining waste water inside buildings
For buildings with increased sound insulation requirements
Click on a property to search for other products
Highly sound-insulating
EPDM seal

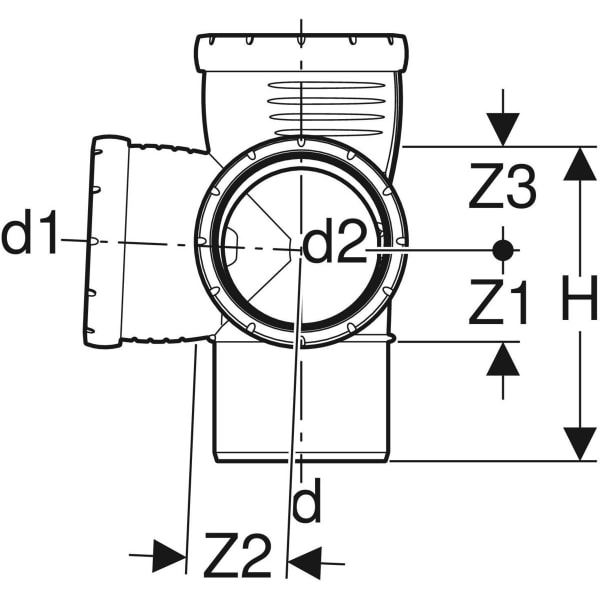

DN: 100 / 90
d, ø: 110 mm
d1, ø: 90 mm
d2, ø: 90 mm

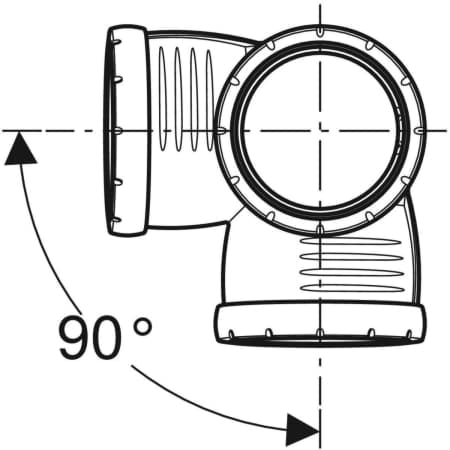

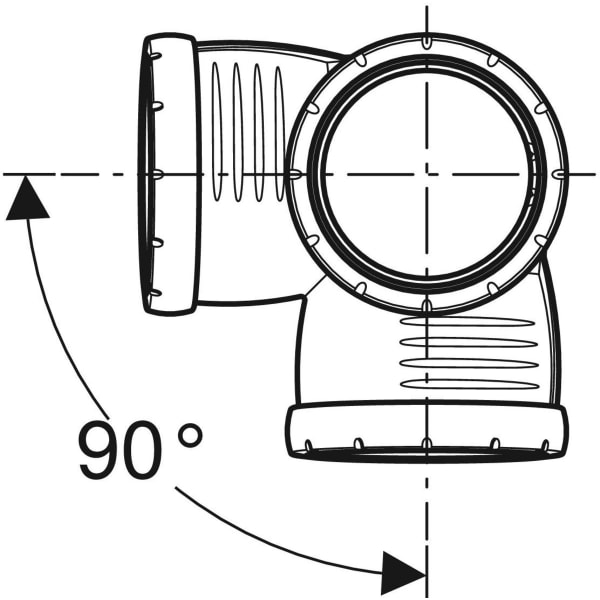

arc: 87.5 °
H: 21.2 cm
Z1: 8.2 cm
Z2: 8.1 cm
Z3: 6.1 cm
PU1: 1 pc.
PU2: 10 pcs.
PU3: 80 pcs.
