Description
Protection class
IP45
Rated voltage
110-240 V AC
Operating voltage
4.5 V DC
Mains frequency
50-60 Hz
Power consumption stand-by max.
0.1 W
Flow pressure
100-800 kPa
Water test pressure max.
1600 kPa
Water temperature max.
30 °C
Small flush volume setting range
0.5 l
Flow rate at 1 kPa with flow limiter
0.18 l/s
Minimum flow pressure for calculation flow rate
100 kPa
Calculation flow rate
0.22 l/s
Interval flushing Setting range
1-168 h
Interval flush Factory setting
24 h
Interval flush time Setting range
3-180 s
Interval flush time Factory setting
5 s
Dwell time Setting range
3-15 s
Dwell time Factory setting
7 s
Flush time Setting range
1-15 s
Flush time Factory setting
7 s
Material
Sanitary ceramic
Click on an intended use to search for other products
For operation with automatic, water-saving flush
For Geberit mounting elements for urinals with or for integrated controls
For covering existing connections during renovations
Click on a feature to search for other products
IR user recognition with leg recognition
Flush rimless
Wall-hung
Easy to maintain and clean
Urinal flush control can be replaced from the front without removing the ceramics
Spray head can be replaced from the front without removing the ceramic appliance
Odour trap can be replaced from the top without removing the ceramic appliance
Odour trap holder height adjustable without tools
Cleaning the drainage system without removing the ceramic
Adjustable water-saving hybrid mode
Adjustable flush time
Flush time can be set manually
Interval flush adjustable
Dynamic flush time adjustment
Adjustable pre-rinse
Power supply via mains connection
Mains connection with three-core flexible sheathed cable
Ready for operation after mains connection
Power supply unit with LED display
Power failure control
Valve closure function in the event of a power failure
Functions can be set and queried with Geberit service mobile phone
Device settings and operation with mobile device via integrated Bluetooth® interface
Compatible with Geberit Control App
Can be networked wirelessly with Geberit Gateway via GEBUS converter
Can be networked wirelessly with Geberit Gateway via Bluetooth®
Compatible with Geberit Connect
Flush activation can be deactivated
Flush volume can be reduced to 0.5 litres per flush via flush time
Rinsing of the urinal ceramic appliance with 0.5 litres per flush guaranteed, in compliance with EN 13407
Fitting group II in accordance with DIN 4109
Urinal control unit with power supply unit and solenoid valve
Fastening material
Urinal odour trap with suction function
Drain strainer
Drain set
Inlet set
Pressure reducer
Colour / surface: white

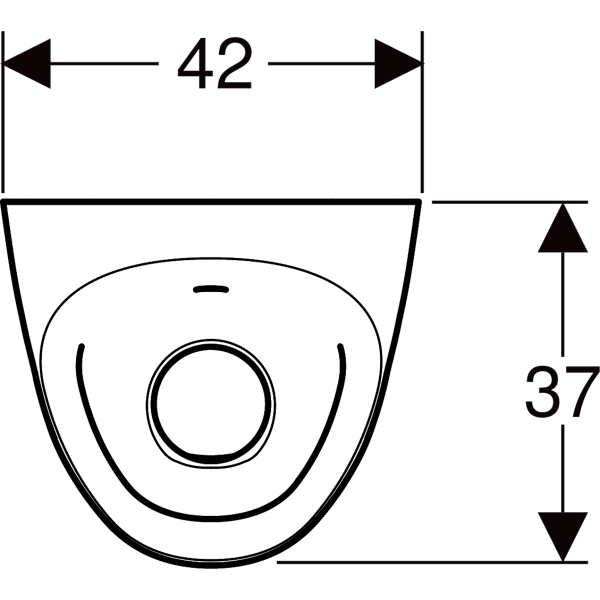

W: 42 cm

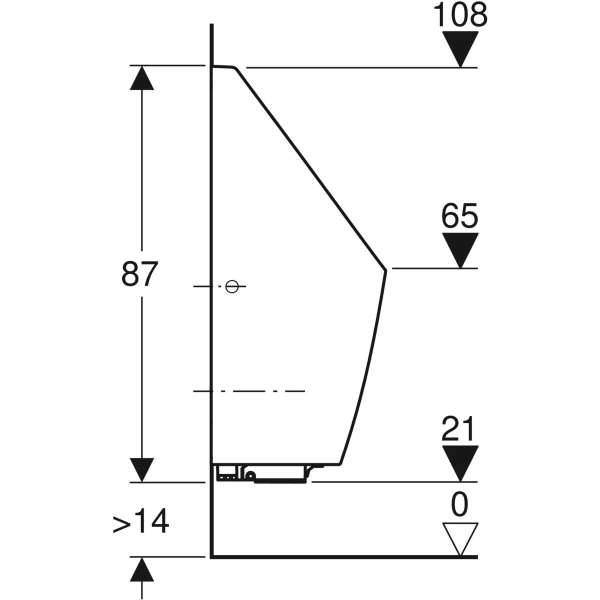

H: 87 cm
D: 37 cm
Power consumption: ≤ 0.5 W

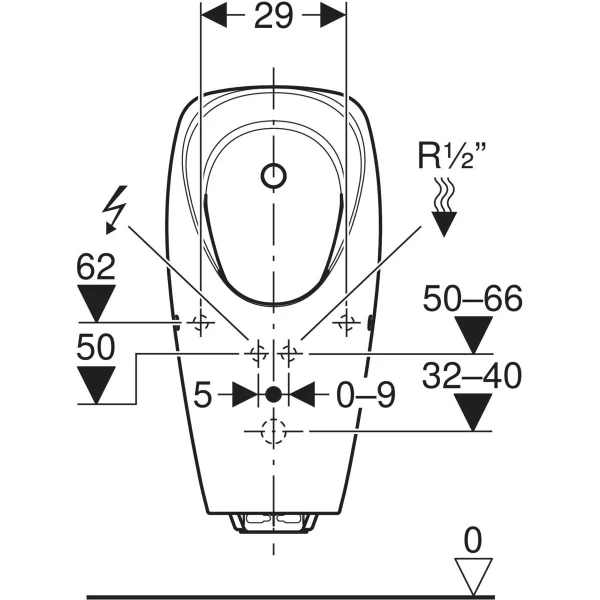

Inlet: at the back
Outlet: to the rear
Target marking: no
PU1: 1 pc.
PU2: 2 pcs.
