Description
Seal water height (mm)
50 mm
material
Chrome-plated brass / PP
For washbasins with overflow
For washbasins with a material thickness of 40-45 mm in the area of the drain valve
For space-saving installation in washbasins with vanity unit without odour trap cut-out
For space-saving installation in washbasins
Quality-monitored in accordance with EN 274-3
Hygienic due to optimum flow behaviour
Drain valve can be closed
Actuation via external valve plug
Length can be adapted to washbasin
With integrated hair strainer
Horizontal outlet
Drain valve
Connection elbow 90° made of PP
External valve plug
EPDM sleeve
Dip pipe odour trap
Wash basin connection
Colour / surface: high-gloss chrome-plated

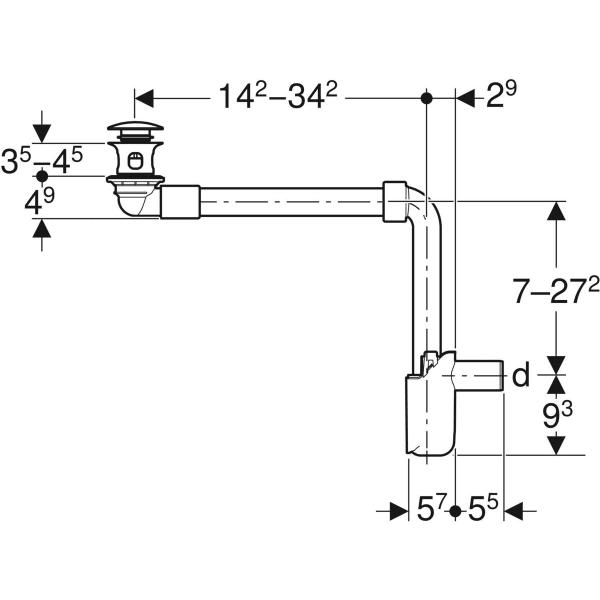

d, ø: 40 mm
G: 1 1/4 ″
L: 11.2 cm
h: 7-27.2 cm
PU1: 1 pc.
