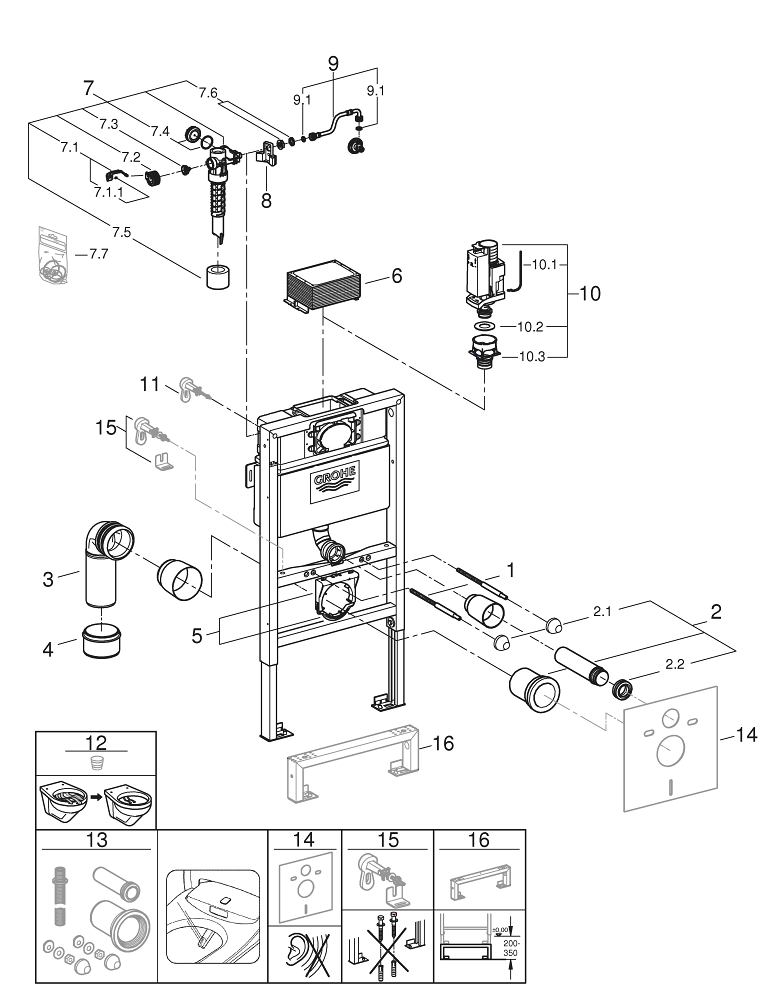

Main features for pre-wall or stud wall mounting steel frame completely pre-assembled with quick adjustment and height lock Mounting material TÜV-tested 2 WC retaining bolts Ceramic fixing Screw spacing 180/230 mm PP drain elbow Ø 90 mm depth adjustable Reducer Ø 90/110 mm Inlet and outlet fitting Cistern 6 - 9 litres, with the following functions: Pneumatic drain valve with two functions: 2 volumes or start & stop Actuation from the front or top Water connection from left/right/rear Fittings group I Insulated against condensation 1/2" water connection with integrated angle valve and tool-free hose screw connection Shortenable inspection shaft with pipework protection Wall bracket 38 558 00M for pre-wall installation must be ordered separately Inspection chamber 40 950 000 for small cover plates must be ordered separately
