Features
Aerator
PCA® - constant flow rate regardless of pressure variations, Hidden aerator
Connection
Flexible inlet pipes
Hand shower
Bidetta hand shower
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts

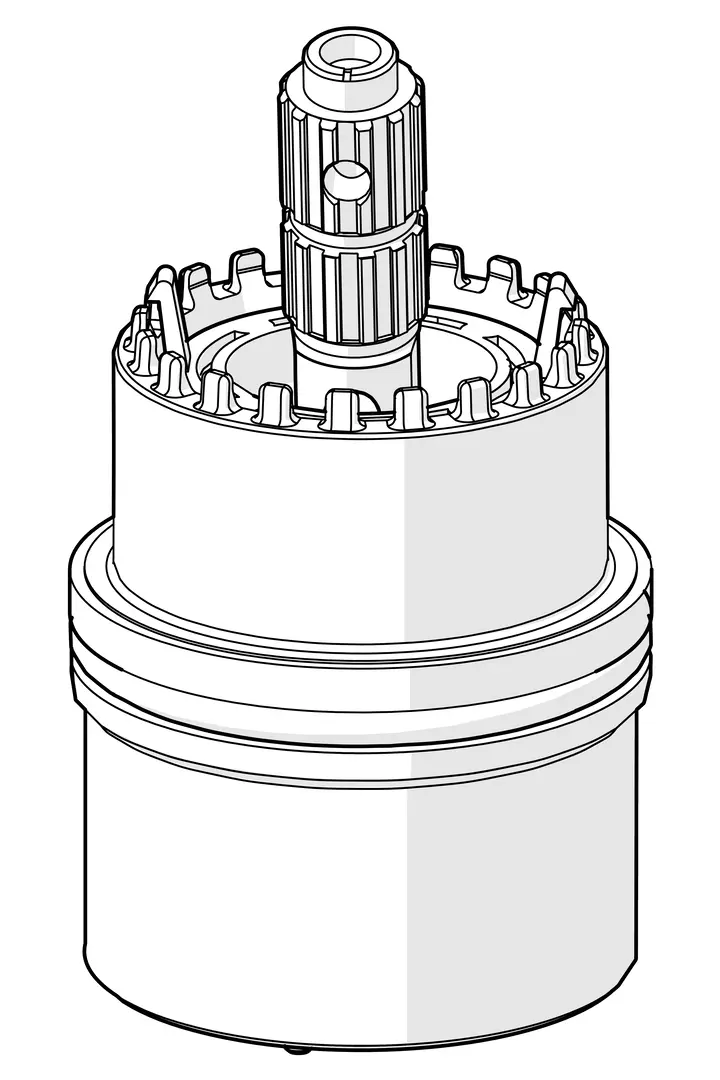

ø 40 mm ceramic cartridge for flow and temperature control
Number of spray functions
1 spray function
Shower parts
Hand shower, Shower holder, Shower hose (1600 mm)
Advanced features
Inner body made of DZR brass, 3S-installation system for safe and simple mounting
Spout
Swivel spout, Swivel range limiting option
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate

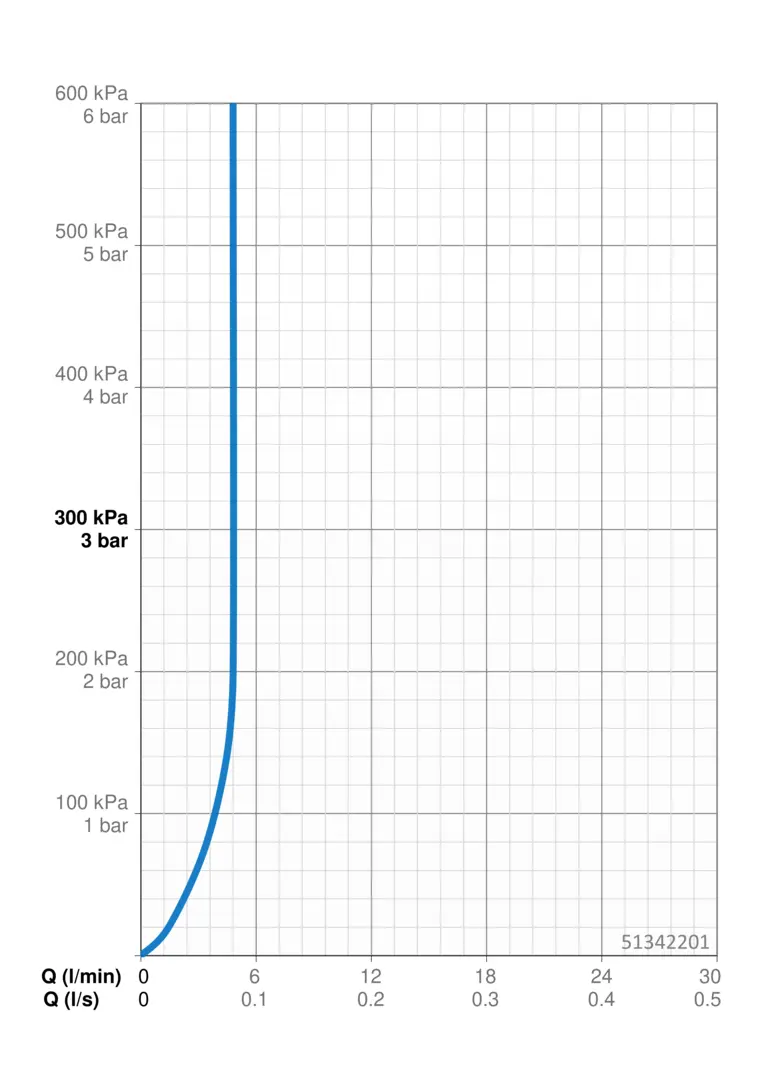

Flow attributes
Flow-rate at 3 bar (with flow controller)
4.8 l/min
Technical properties
Backflow prevention (EN1717)
HC
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass
Projection
151 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817, EN 1113
Noise class
I (ISO 3822)
