Features
Aerator
PCA® - constant flow rate regardless of pressure variations, Standard aerator
Connection
One inlet for cold or premixed water
Electronic parts
Autofocus infrared sensor, Solenoid valve, External control unit, Light indicated function(s), Low battery indicator
Concealed parts
Round rosette, BLUECLICK for an easy, screwless trim plate installation
Mechanical parts
Litter filter(s)
Advanced features
Software settings adjustable via magnetic key
Color
Chrome
Software settings
Afterflow period
3 s (1/2/3/4/5/6/7/8/9/10 s)
Automatic flush
off (off/6/12/18/24/30/36/48/60/72 h)
Automatic flush period
30 s (30/60/90/120/180/240/300/360/480/600 s)
Max. flow period
60 s (10/30/60/90/120/150/180/210/240/300 s)
Flow attributes

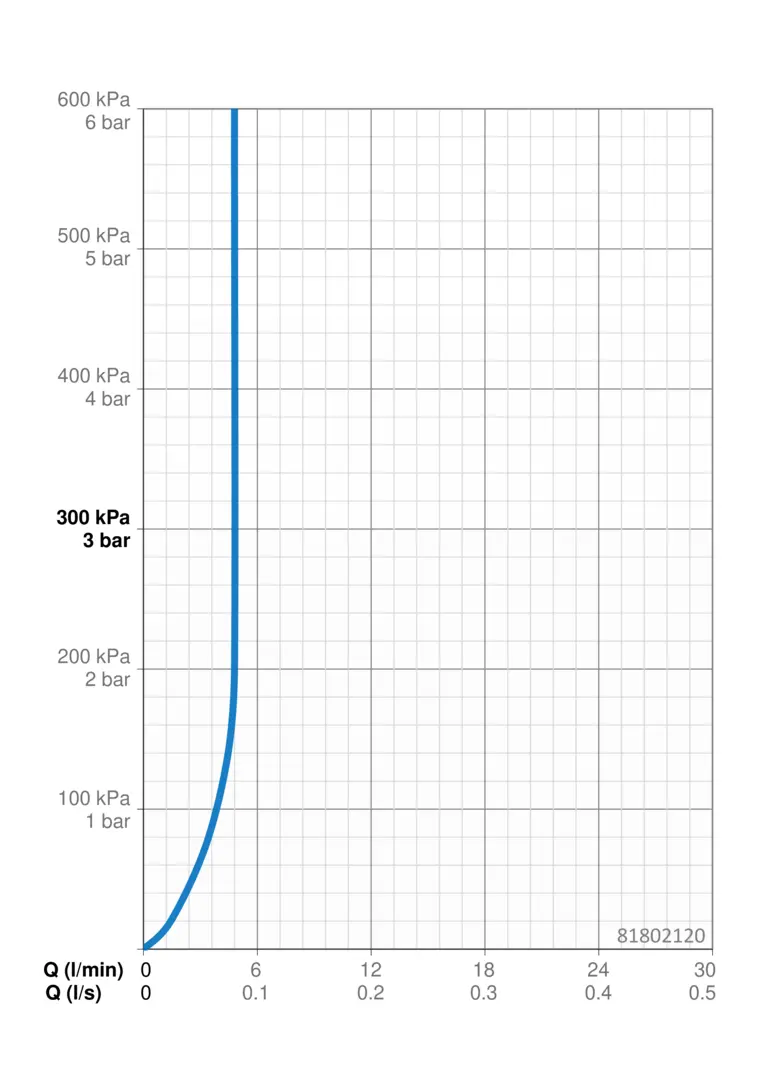

Flow-rate at 3 bar (with flow controller)
4.8 l/min
Technical properties
Hot water supply
max. +70°C
Material
Brass

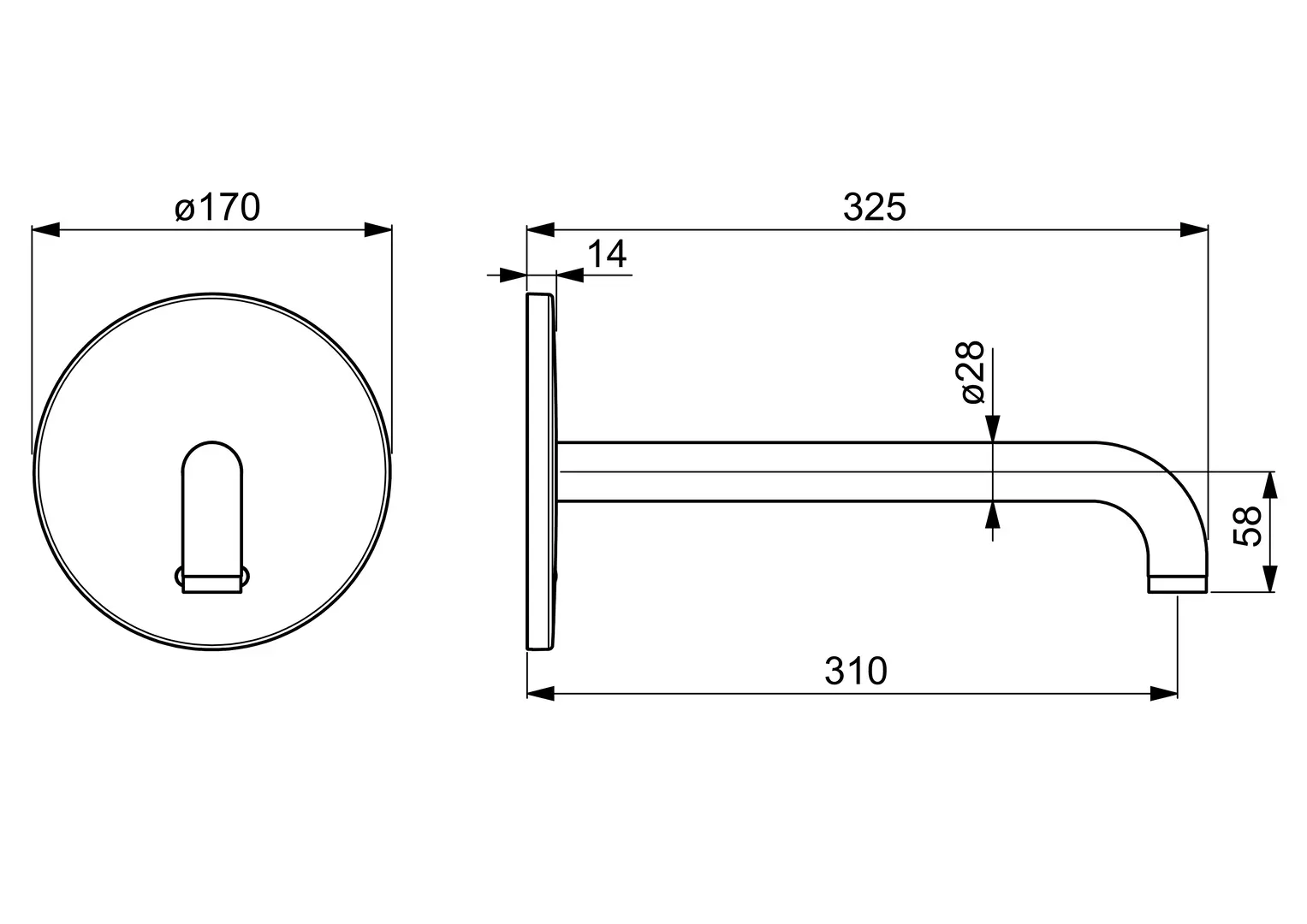

Projection
310 mm
Working pressure
1 - 10 bar
Electronics
Battery
AA 1.5 V Lithium x 2
Regulations
EU Directives
EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 55
Approvals and Declarations
UN38.3
UN38-3 Energizer L91
