Features
Connection
Straight coupling(s), with integrated shut-off valve(s)
Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
Advanced features
Software settings adjustable via App
Color
Chrome
Software settings
Afterflush period
6 s (1-20 s)
Automatic flush
24 h (off/1-120 h)
Automatic flush period
6 s (1-120 s)
Pre-flush period
2 s (OFF / 1-10 s)

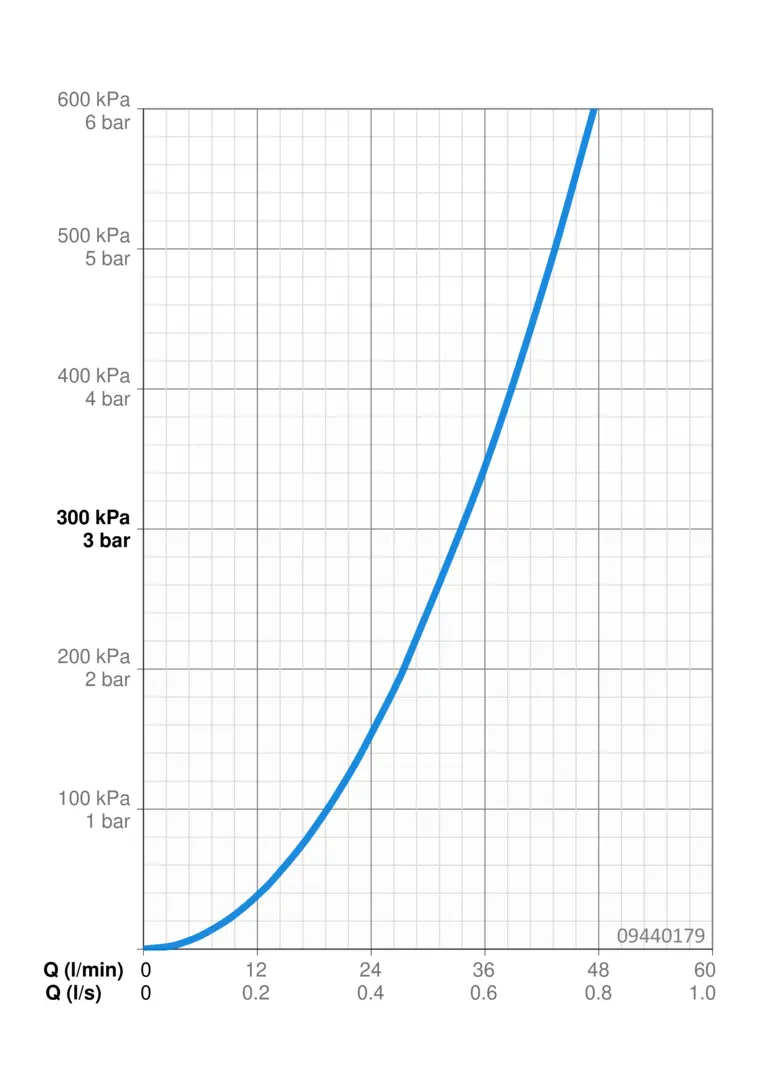

Flow attributes
Flow-rate at 3 bar
33.6 l/min

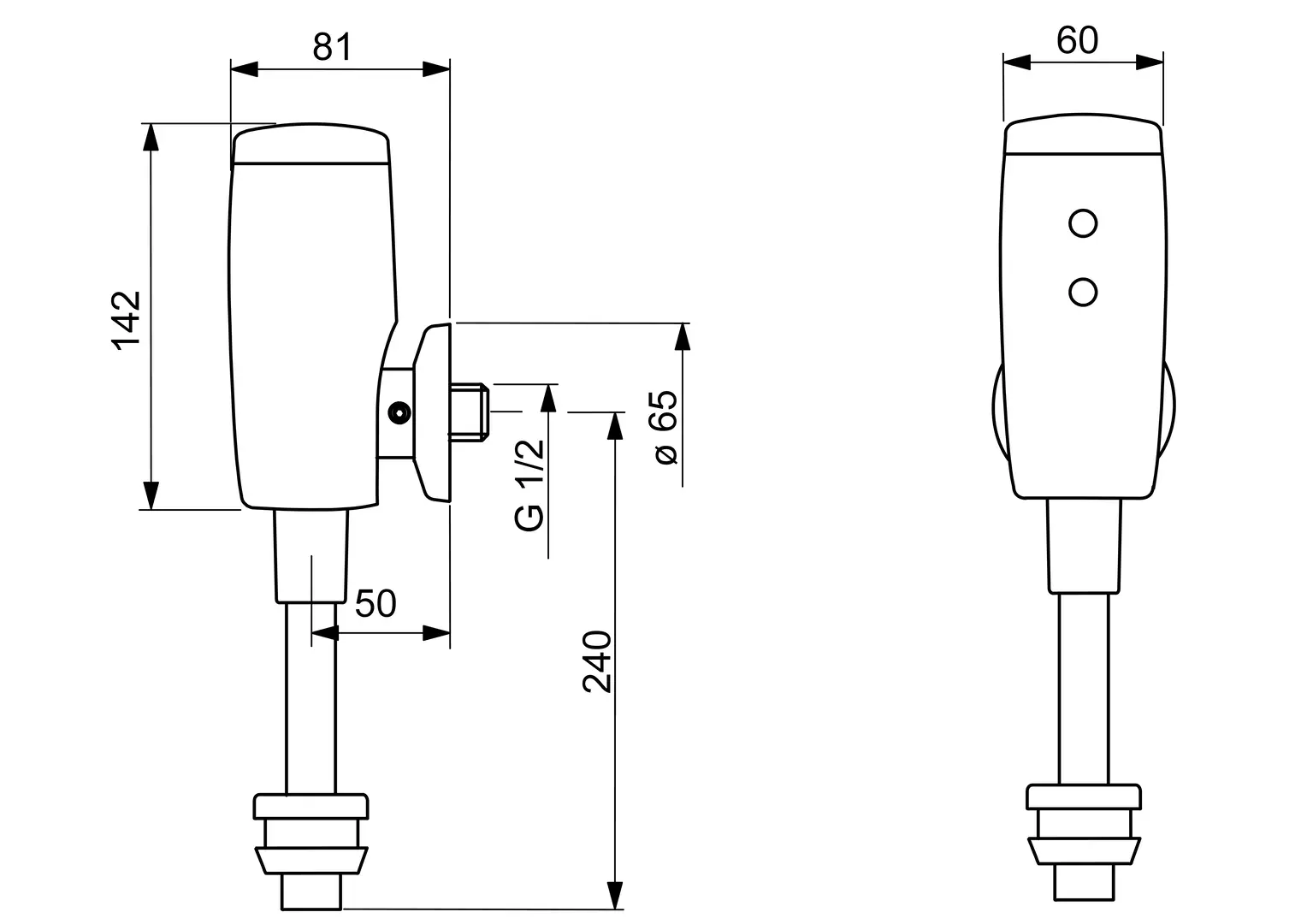

Technical properties
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass
Projection
81 mm
Working pressure
0.5 - 10 bar
Electronics
Battery
Lithium 2CR5 6 V
Regulations
EU Directives
Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Protection class
IP 55
Approvals and Declarations
UN38.3
UN38-3 Maxell 2CR5
Sustainability
EPD module A1 (kg CO2 eq.)
6,25
EPD module A1-A3 (kg CO2 eq.)
10,95
EPD module A2 (kg CO2 eq.)
0,29
EPD module A3 (kg CO2 eq.)
4,41
EPD module A4 (kg CO2 eq.)
0,27
EPD module B7 (kg CO2 eq.)
18379,20
EPD module C2 (kg CO2 eq.)
0,01
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
1,39
EPD module D (kg CO2 eq.)
-5,69
