Features
Additional features
grease without Silicon
Aerator
PCA® - constant flow rate regardless of pressure variations, Adjustable flow angle
Connection
Flexible inlet pipes, One inlet for cold or premixed water
Electronic parts
Advanced PSD sensor, Light indicated function(s), Low battery indicator
Mechanical parts
Non-return valve(s), Litter filter(s)
Advanced features
3S-installation system for safe and simple mounting, Software settings adjustable via App
Spout
Fixed spout
Color
Chrome
Software settings
Afterflow period
3 s (1-20 s)
Automatic flush
off (off/1-120 h)
Automatic flush period
30 s (1-1800 s)
Max. flow period
2 min (1 - 1800 s)
Flow attributes

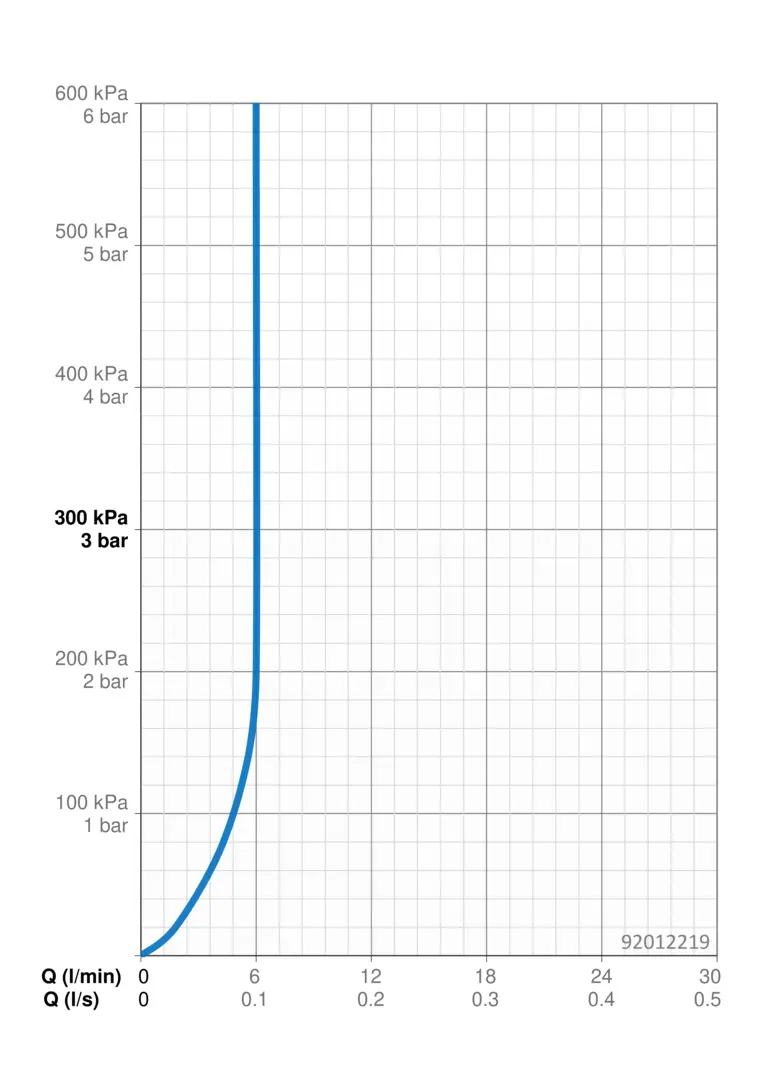

Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Composite

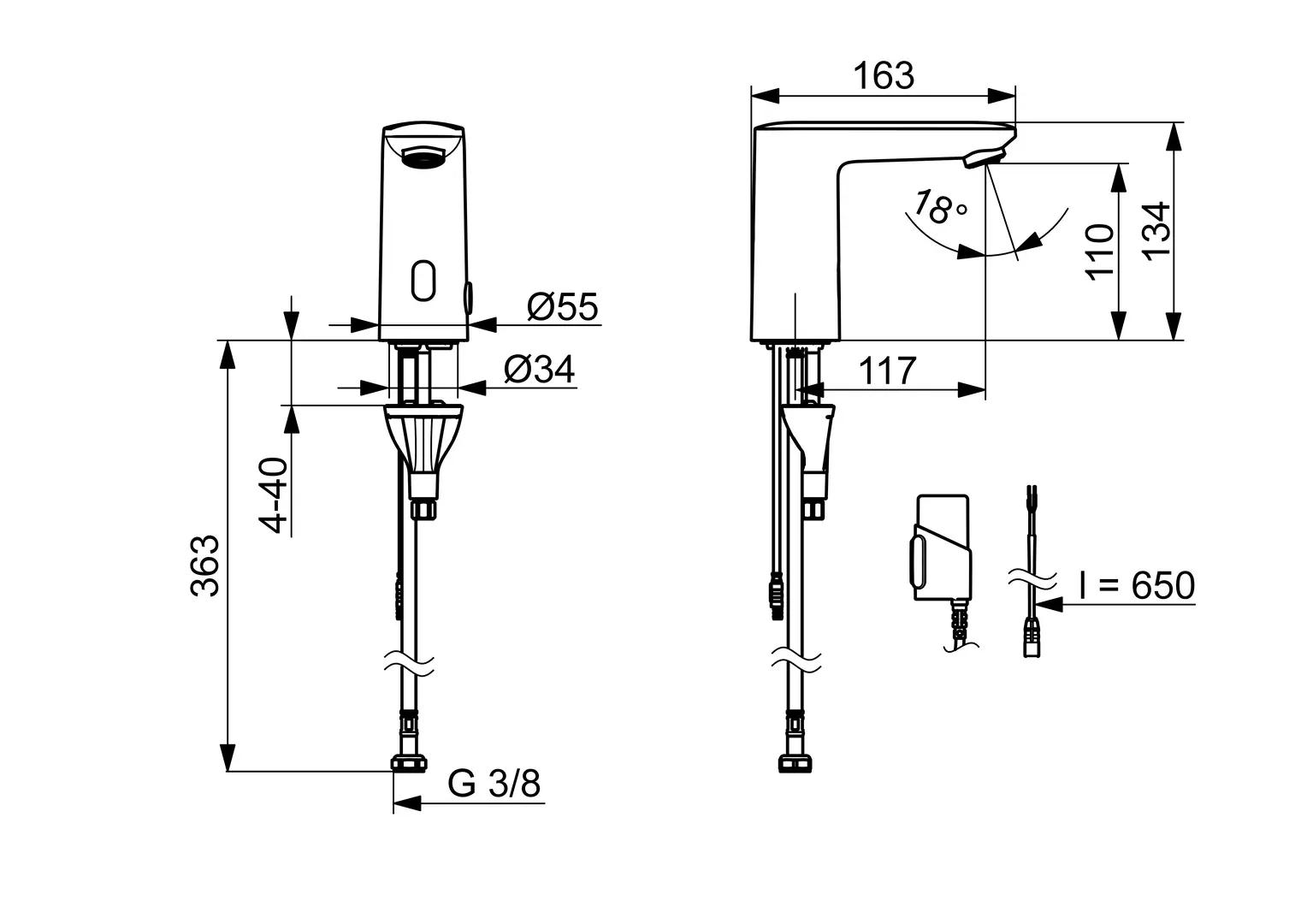

Projection
117 mm
Working pressure
1 - 10 bar
Electronics
Battery
AA 1.5 V Lithium x 2
Bluetooth version
5.x (D060576)
Electrical Connection
9 V
Regulations
EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 55
Sustainability
EPD module A1 (kg CO2 eq.)
3,22
EPD module A1-A3 (kg CO2 eq.)
3,65
EPD module A2 (kg CO2 eq.)
0,16
EPD module A3 (kg CO2 eq.)
0,29
EPD module A4 (kg CO2 eq.)
0,14
EPD module B7 (kg CO2 eq.)
930,00
EPD module C2 (kg CO2 eq.)
0,01
EPD module C3 (kg CO2 eq.)
0,00
EPD module C4 (kg CO2 eq.)
0,87
EPD module D (kg CO2 eq.)
-0,69
