Description
Features
Aerator
Standard aerator
Connection
Eccentric coupling(s), with integrated shut-off valve(s)
Electronic parts
Autofocus infrared sensor, Solenoid valve, Low battery indicator
Lever/Handle
Temperature control handle
Mechanical parts
Litter filter(s), Non-return valve(s), Pressostatic cartridge for automatic temperature control
Advanced features
Software settings adjustable via magnetic key
Spout
Swivel spout, Profile construction
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate
Software settings
Afterflow period
2 s ± 1 s
Automatic flush
off (off/24/48/72 h)
Automatic flush period
30 s
Max. flow period
2 min
Opening range
0-5 cm

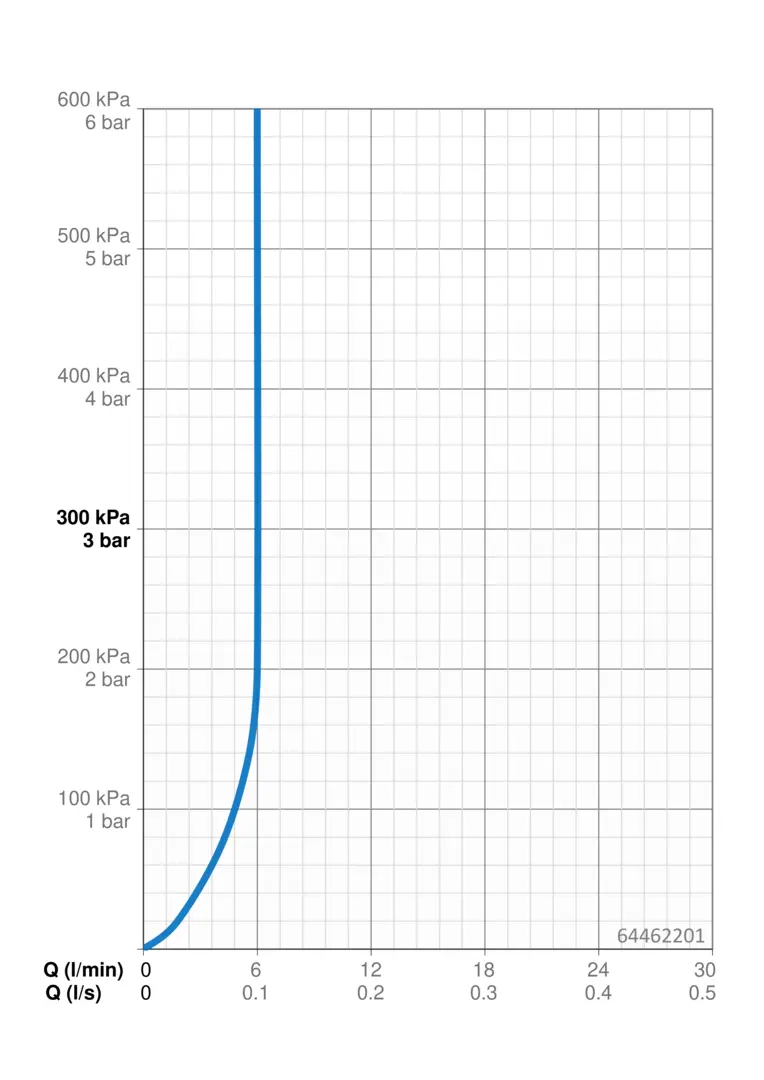

Flow attributes
Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C

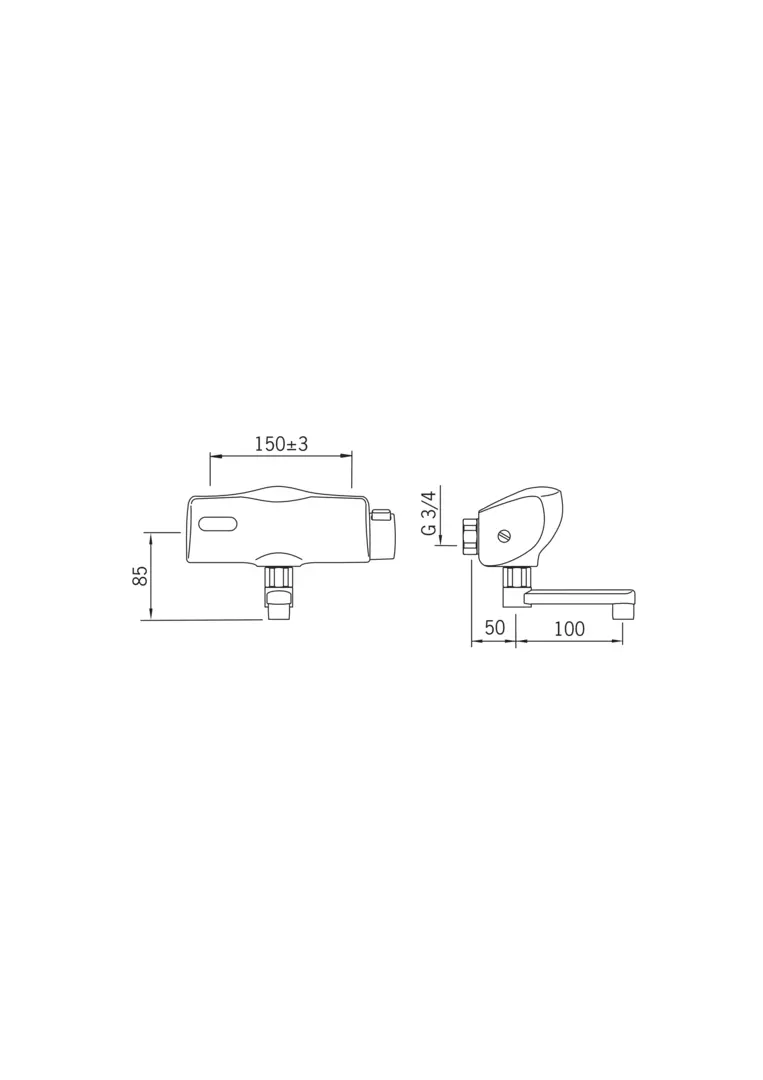

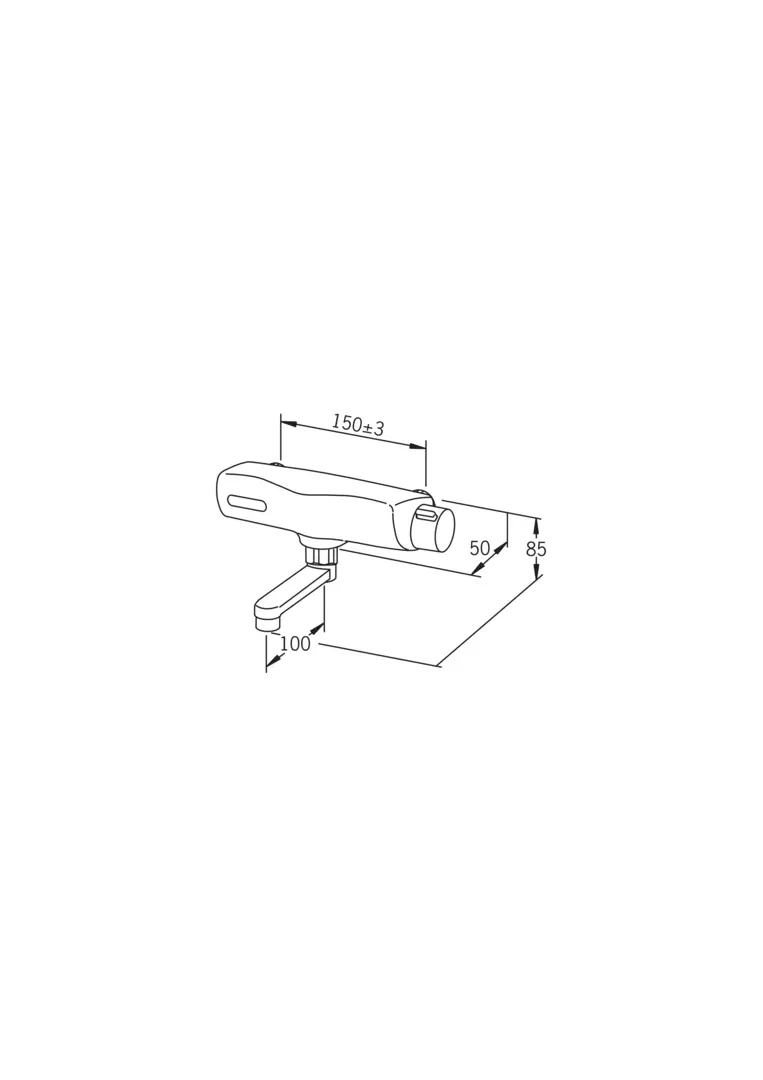

Installation width
150 ± 15 mm
Material
Brass
Projection
150 mm
Working pressure
1 - 10 bar
Electronics
Battery
Lithium 2CR5 6 V
Regulations
EU Directives
EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 55
Approvals and Declarations
UN38.3
UN38-3 Maxell 2CR5
