Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Aerator
Standard aerator
Connection
Ball eccentric coupling(s)
Diverter
Turn operated diverter, Integrated into flow control handle
Lever/Handle
Temperature control handle, Flow control handle
Mechanical parts
Thermostatic cartridge for automatic temperature control
Advanced features
Safety glass
Spout
Fixed spout
Color
Chrome/White
Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

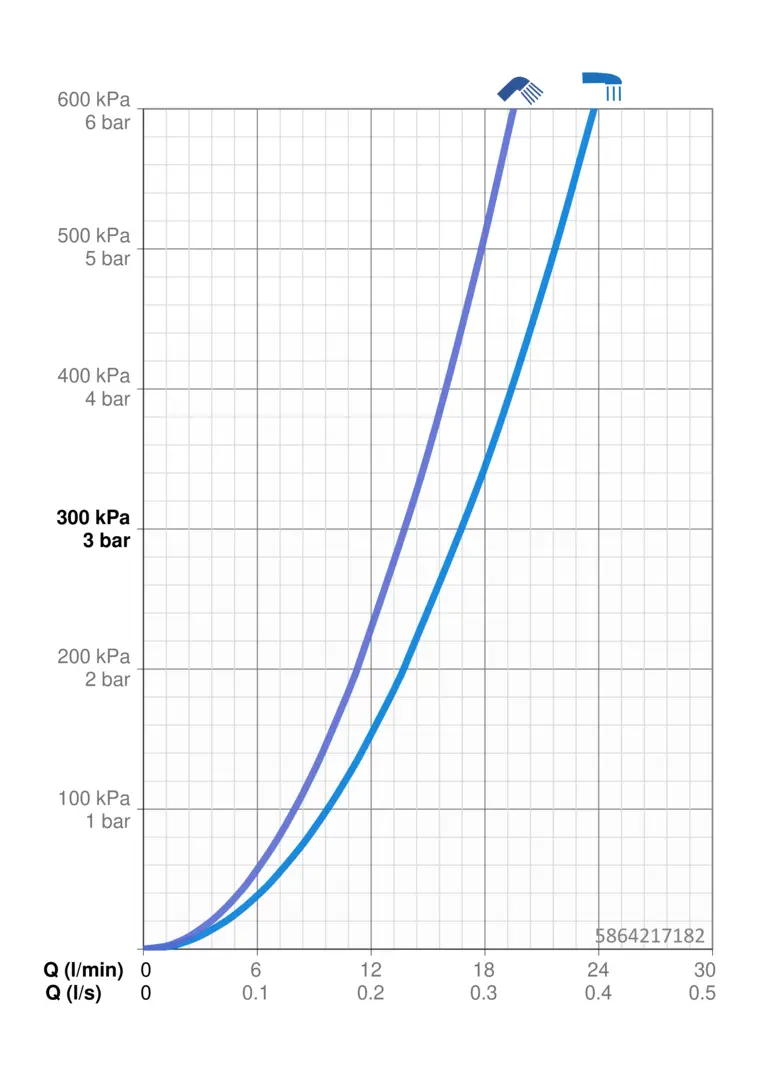

Flow attributes
Flow-rate at 3 bar
16.8 / 13.8 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Installation width
150 ± 15 mm
Material
Brass
Projection
137 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822) Oras lab.
