Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Connection
Ball eccentric coupling(s)
Diverter
Turn operated diverter, Integrated into flow control handle
Electronic parts
Solenoid valve, External control unit, Light indicated function(s), Low battery indicator
Lever/Handle
Temperature control handle, Flow control handle
Mechanical parts
Thermostatic cartridge for automatic temperature control, Non-return valve(s)
Number of spray functions
3 spray functions
Shower parts
Hand shower, Shower holder, Shower hose (1750 mm), Overhead shower, Rotatable ball joint connection
Shower spray
Pulsating - Strong water stream for massage or body treatment, Intense - invigorating water stream, Sensitive – Gentle water stream
Advanced features
Safety glass, Software settings adjustable via App
Color
Chrome/White
Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

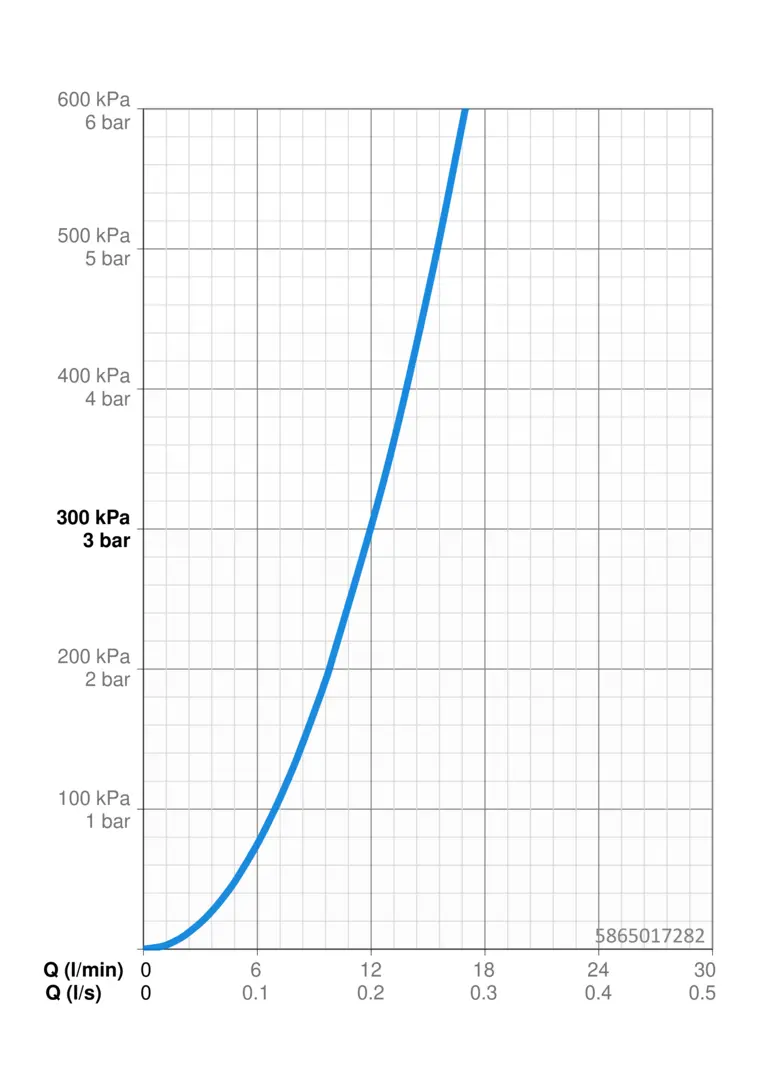

Flow attributes
Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C

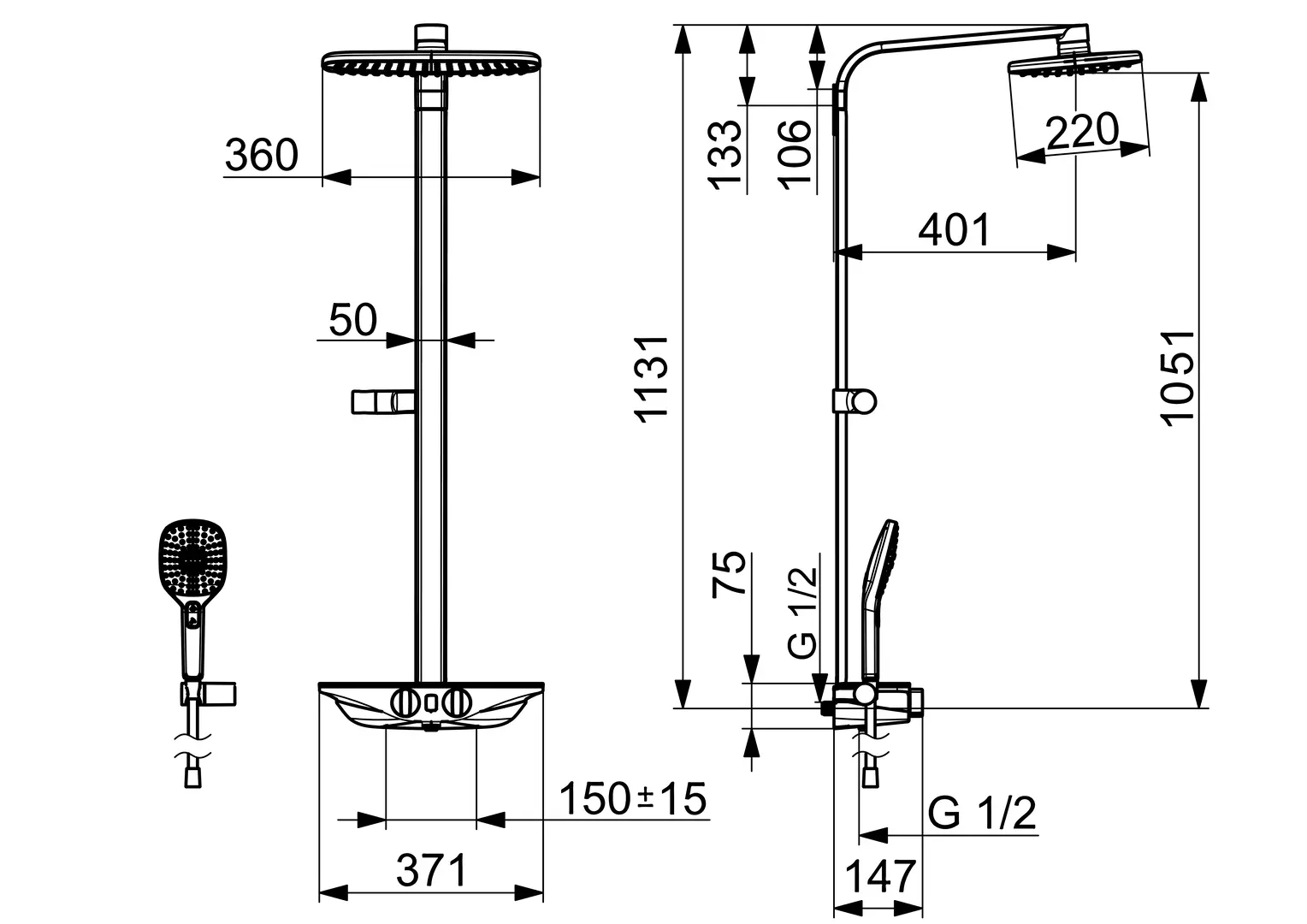

Installation width
150 ± 15 mm
Material
Brass
Projection
401 mm
Working pressure
1 - 10 bar
Electronics
Battery
AA 1.5 V Lithium x 4
Bluetooth version
4.x (D034445)
Regulations
EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 1111, EN 1112, EN 1113, EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822) Oras lab.
Protection class
IP 55
Approvals and Declarations
UN38.3
UN38-3 Energizer L91
