Description
Features
Connection
Flexible inlet pipes
Diverter
Push operated diverter, Automatic reset
Hand shower
Pull-out hand spray
Lever/Handle
Easy-Grip surface, Single operating lever/handle, Hot/Cold symbols
Mechanical parts
Litter filter(s), Mixing valve for manual temperature control, ø 40 mm ceramic cartridge for flow and temperature control
Number of spray functions
2 spray functions
Shower spray
Normal - Even and soft water stream, Intense - invigorating water stream
Advanced features
Surfaces in contact with drinking water contain less than 0.3% lead, Waterways without nickel coating
Spout
Swivel spout
Color
Chrome
Temperature
Adjustable hot water stop (included, retrofittable), Limitation option for maximum temperature and flow-rate
Flow attributes

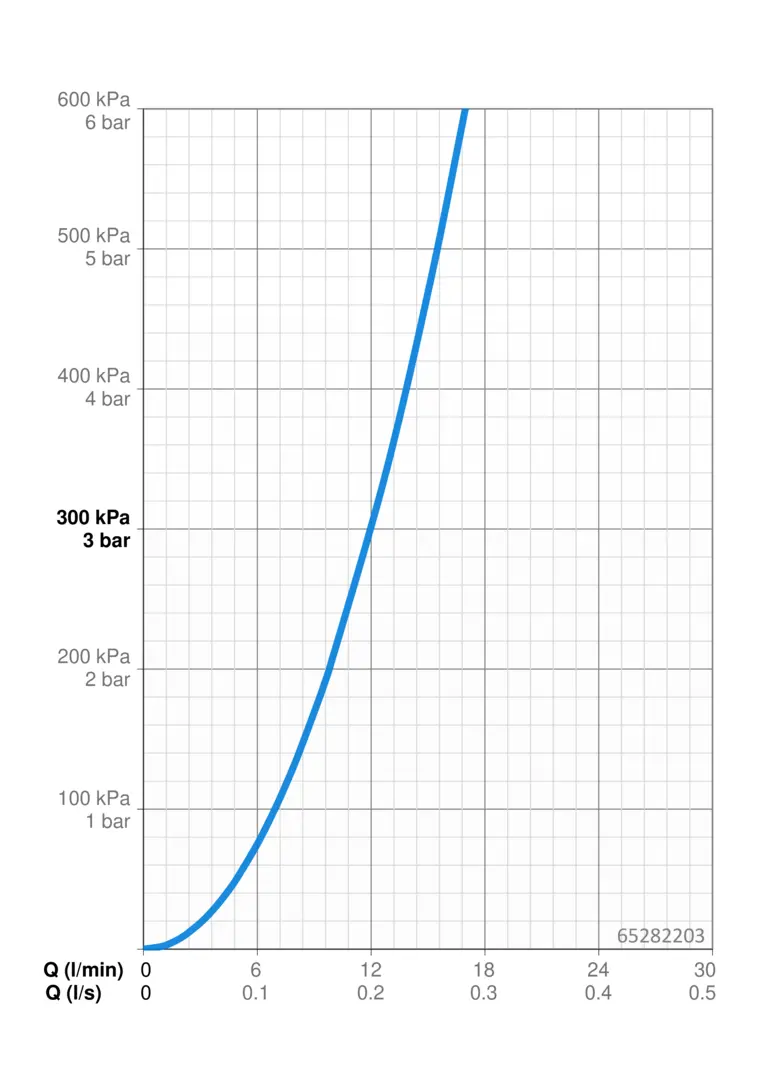

Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass/Plastic

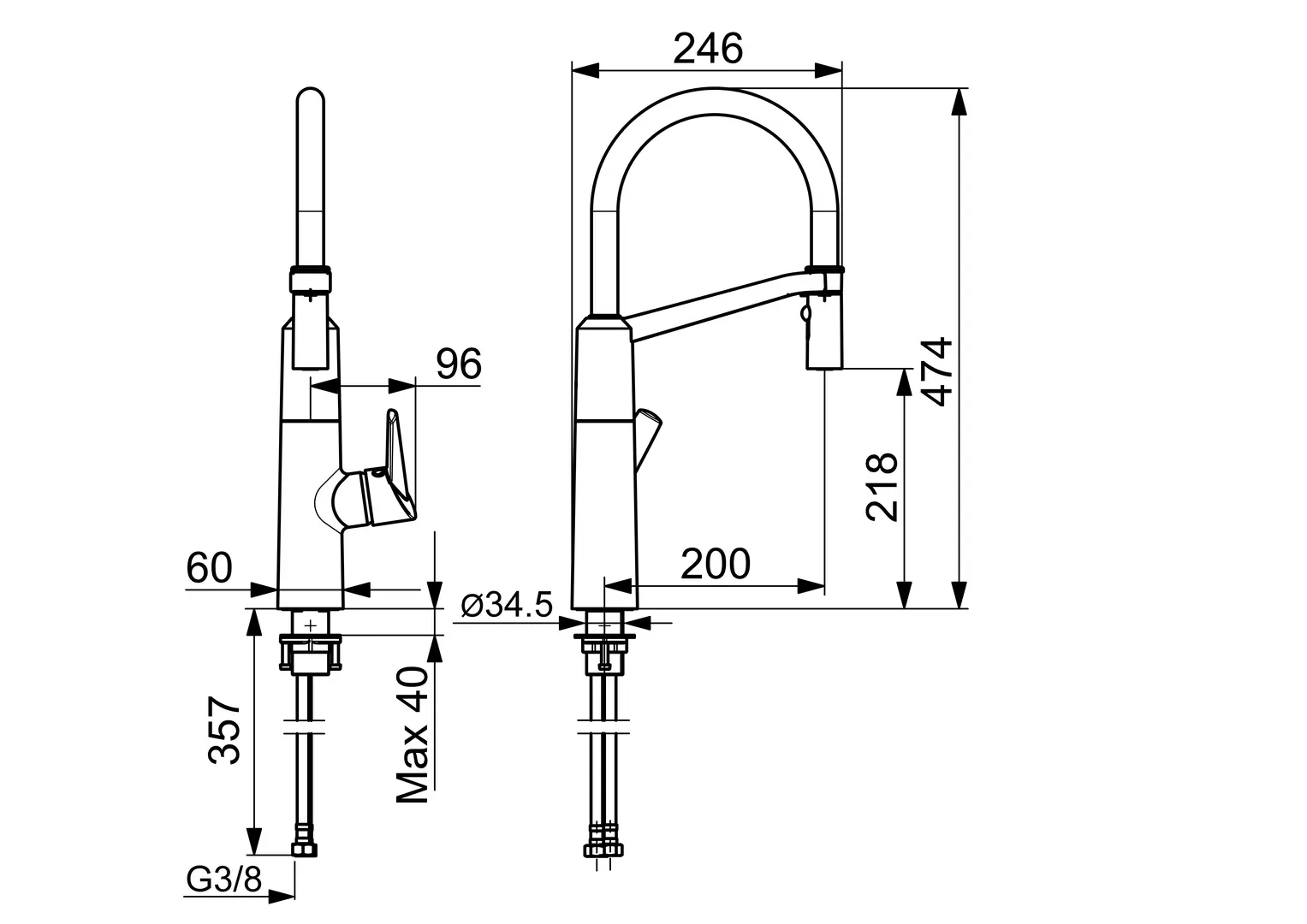

Projection
200 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 817
