Description
Features
Connection
Flexible inlet pipes
Dishwasher valve
Electronic stop valve for external equipment
Diverter
Push operated diverter, Automatic reset
Electronic parts
Solenoid valve, Light indicated function(s), Low battery indicator
Hand shower
Pull-out hand spray
Lever/Handle
Easy-Grip surface, Single operating lever/handle, Hot/Cold symbols
Mechanical parts
Litter filter(s), Mixing valve for manual temperature control, ø 40 mm ceramic cartridge for flow and temperature control
Number of spray functions
2 spray functions
Shower spray
Normal - Even and soft water stream, Intense - invigorating water stream
Advanced features
Surfaces in contact with drinking water contain less than 0.3% lead, Waterways without nickel coating
Spout
Swivel spout
Color
Chrome
Temperature
Adjustable hot water stop (included, retrofittable), Limitation option for maximum temperature and flow-rate
Software settings
Dishwasher valve open period
4 h / 12 h
Flow attributes

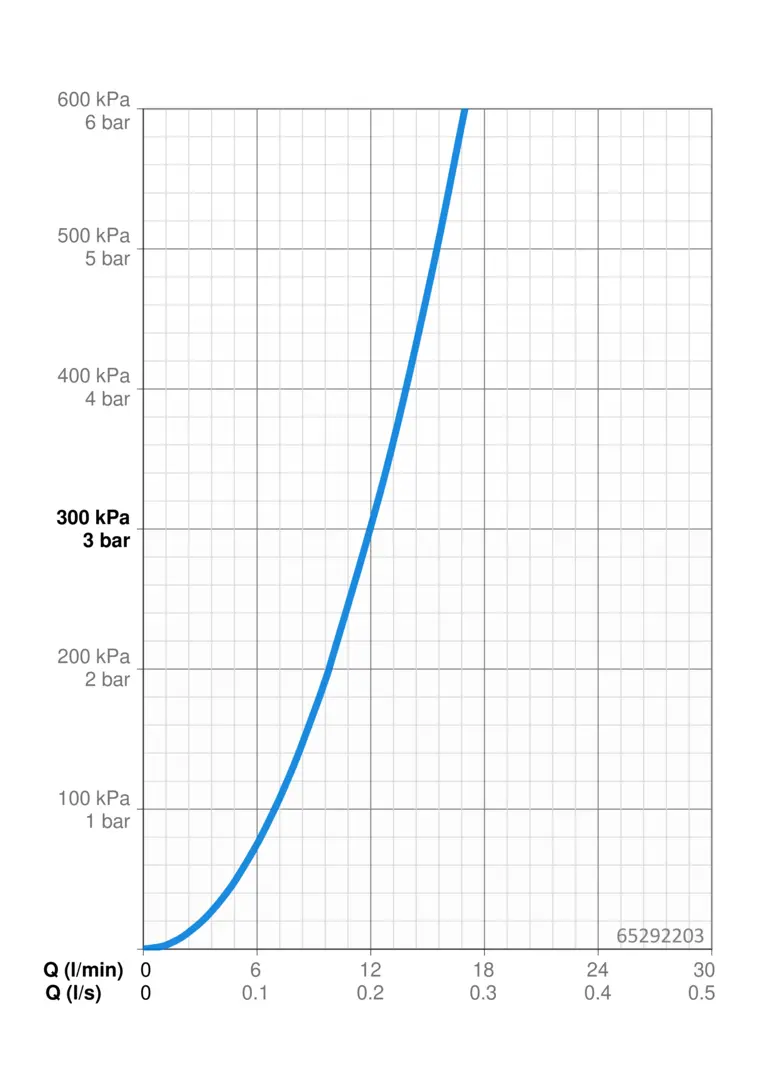

Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass/Plastic

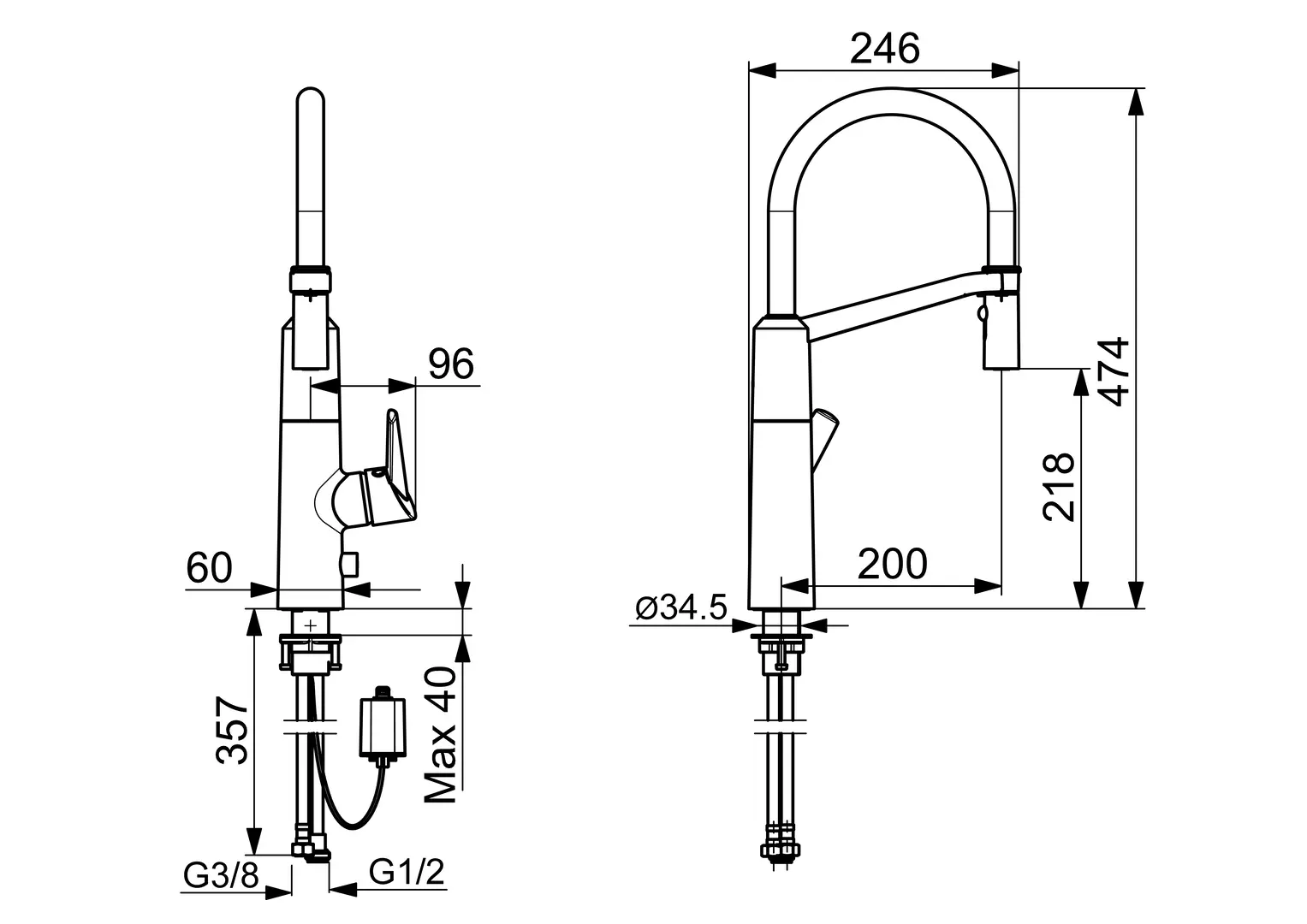

Projection
200 mm
Working pressure
1 - 10 bar
Electronics
Battery
Lithium 2CR5 6 V
Regulations
EU Directives
EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091 , EN 817,
ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Protection class
IP 55
Approvals and Declarations
UN38.3
UN38-3 Maxell 2CR5
