Description
Features
Aerator
Hidden aerator
Connection
Flexible inlet pipes
Electronic parts
External control unit

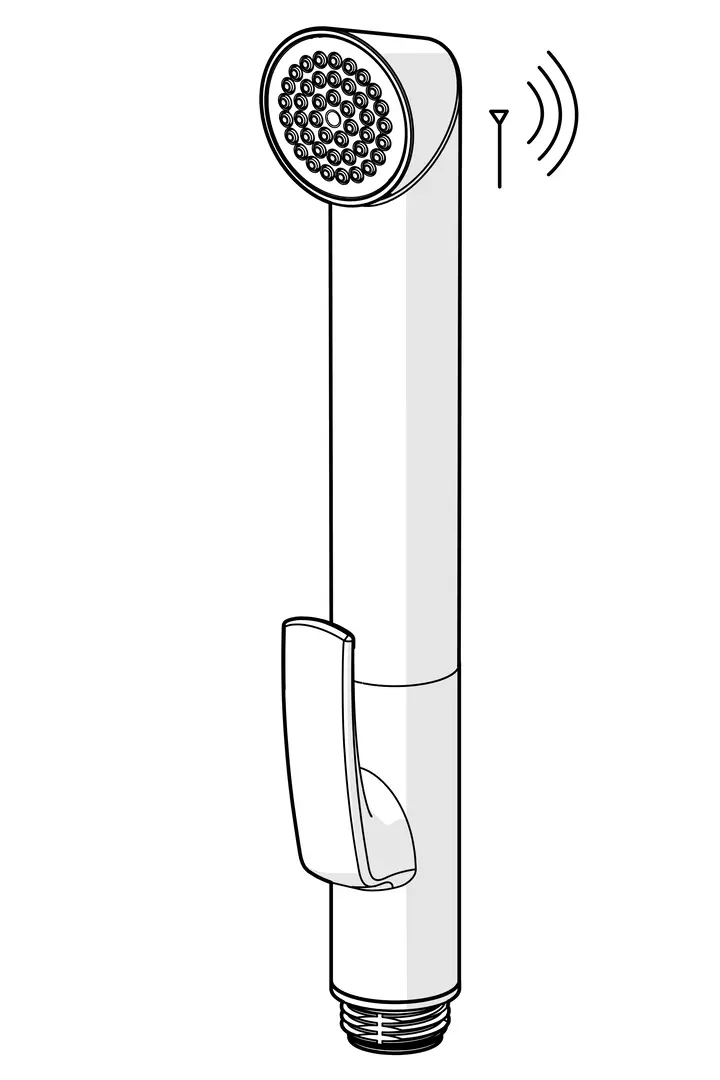

Hand shower
Remote-operated Smart Bidetta
Lever/Handle
Easy-Grip surface, Eco feature for water flow, Single operating lever/handle, Hot/Cold symbols, Temperature control handle
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
Number of spray functions
1 spray function
Shower parts
Hand shower, Shower holder, Shower hose (1500 mm)
Spout
Fixed spout
Color
Chrome
Temperature
Safety stop against scalding at 38°C
Software settings
Max. flow period
2 min

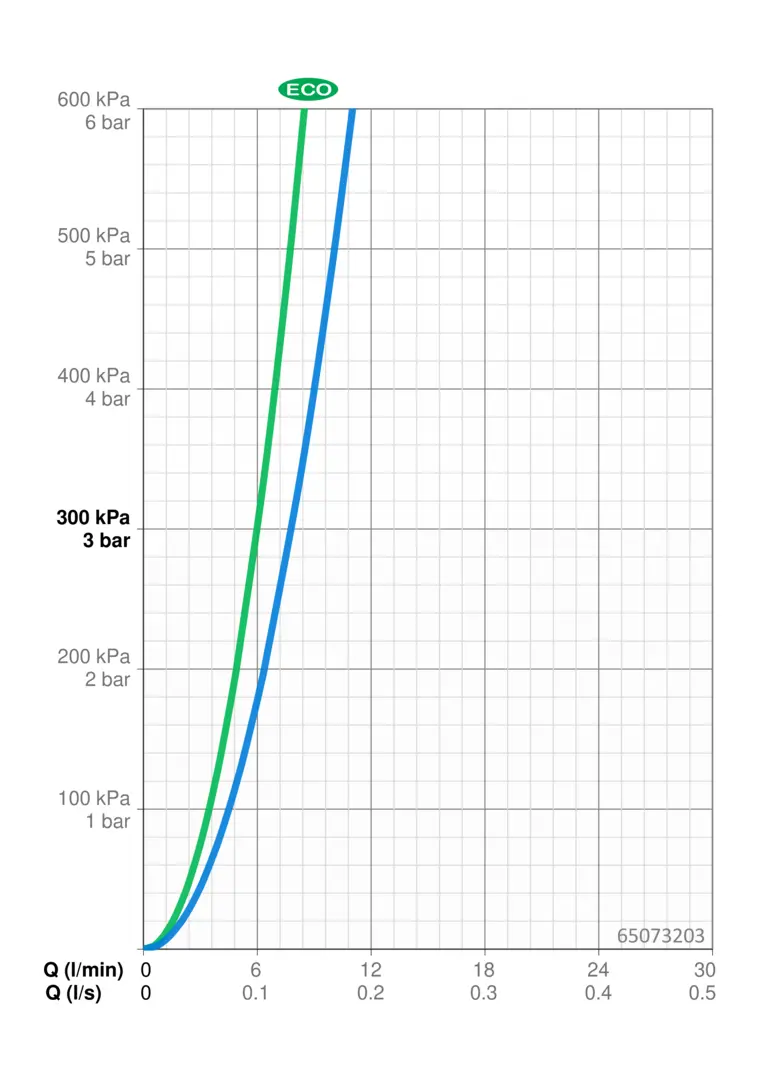

Flow attributes
Eco-flow at 3 bar
6 l/min
Flow-rate at 3 bar
7.8 l/min
Technical properties
Backflow prevention (EN1717)
HC
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass/Plastic
Projection
98 mm
Working pressure
1 - 10 bar
Electronics
Battery
AA 1.5 V Lithium x 2, CR 2450 3 V
Regulations
EU Directives
EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 1111 , EN 1113, EN 817,
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 55
Approvals and Declarations
UN38.3
UN38-3 Energizer L91
