Description
Features
Connection
Silencer(s)
Diverter
Turn operated diverter
Concealed parts
BLUECLICK for an easy, screwless trim plate installation, BLUETUNE alignment after installation of +/- 3,5º, Function unit, Fastening of the function unit with screws, Round rosette

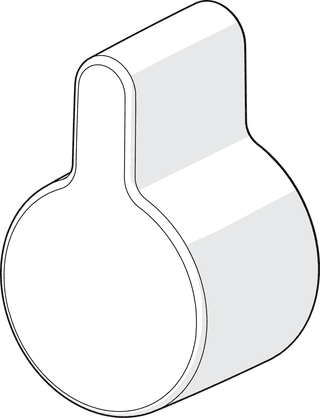

Lever/Handle
Temperature control handle, Flow control handle
Mechanical parts
Thermostatic cartridge for automatic temperature control, Vacuum breaker, Non-return valve(s)
Advanced features
Inner body made of DZR brass, Manual, ceramic, pressure independent diverter with volume control and stop function for two outlets
Color
Chrome
Temperature
Safety stop against scalding at 38°C
Flow attributes
Flow-rate at 3 bar
20.4 / 20.4 l/min
Technical properties
Backflow prevention (EN1717)
HD
Hot water supply
max. +80°C
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
