Features
Aerator
PCA® - constant flow rate regardless of pressure variations, Hidden aerator
Concealed parts
Square rosette, Sleeve
Lever/Handle
Single operating lever/handle, Hot/Cold symbols
Spout
Fixed spout
Color
Chrome

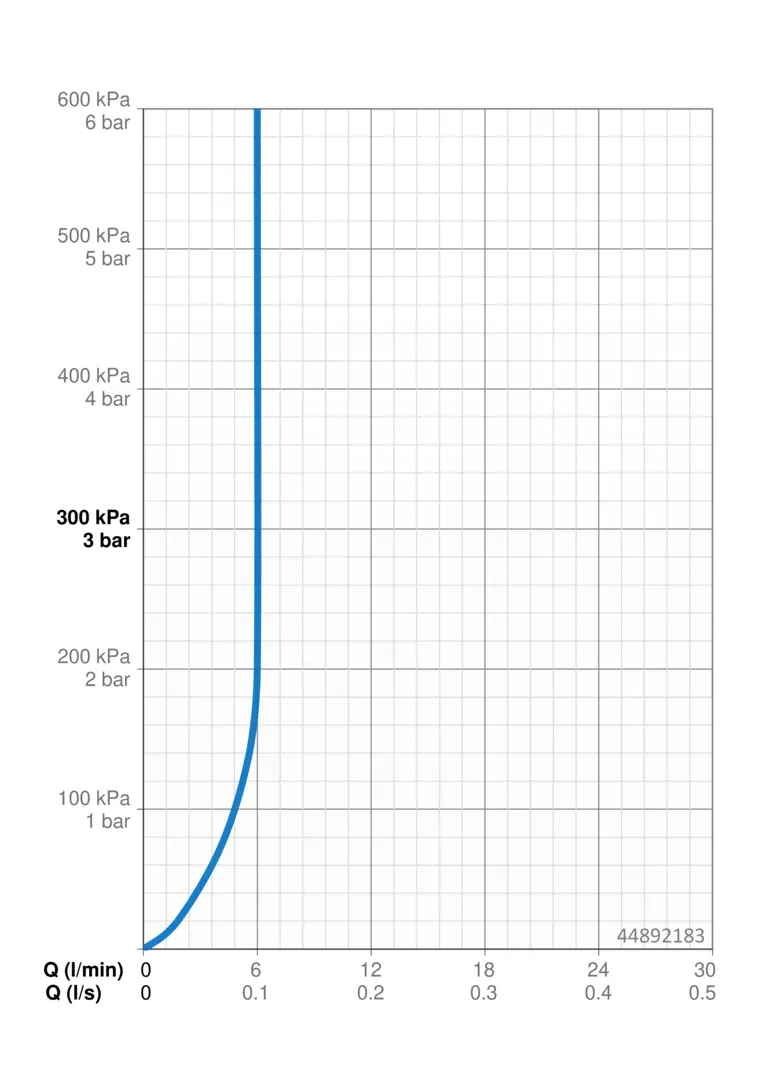

Flow attributes
Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Material
Brass
Projection
190 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
6,96
EPD module A1-A3 (kg CO2 eq.)
7,95
EPD module A2 (kg CO2 eq.)
0,33
EPD module A3 (kg CO2 eq.)
0,66
EPD module A4 (kg CO2 eq.)
0,22
EPD module B7 (kg CO2 eq.)
1854,00
EPD module C2 (kg CO2 eq.)
0,01
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,06
EPD module D (kg CO2 eq.)
-5,66
