Description
Features
Aerator
Hidden aerator, Aerated stream, PCA® - constant flow rate regardless of pressure variations
Connection
Flexible inlet pipes
Electronic parts
Autofocus infrared sensor, Solenoid valve, Power supply
Extensions
Push pop-up waste without draw-rod
Lever/Handle
Temperature control handle
Mechanical parts
Mixing valve for manual temperature control, Non-return valve(s), Litter filter(s)
Advanced features
Inner body made of DZR brass, Software settings adjustable via App
Spout
Fixed spout, Casted construction
Color
Chrome
Temperature
Adjustable hot water stop (included, retrofittable)
Software settings
Afterflow period
3 s (1-20 s)
Automatic flush
off (off/1-120 h)
Automatic flush period
30 s (1-1800 s)
Max. flow period
2 min (1 - 1800 s)
Flow attributes

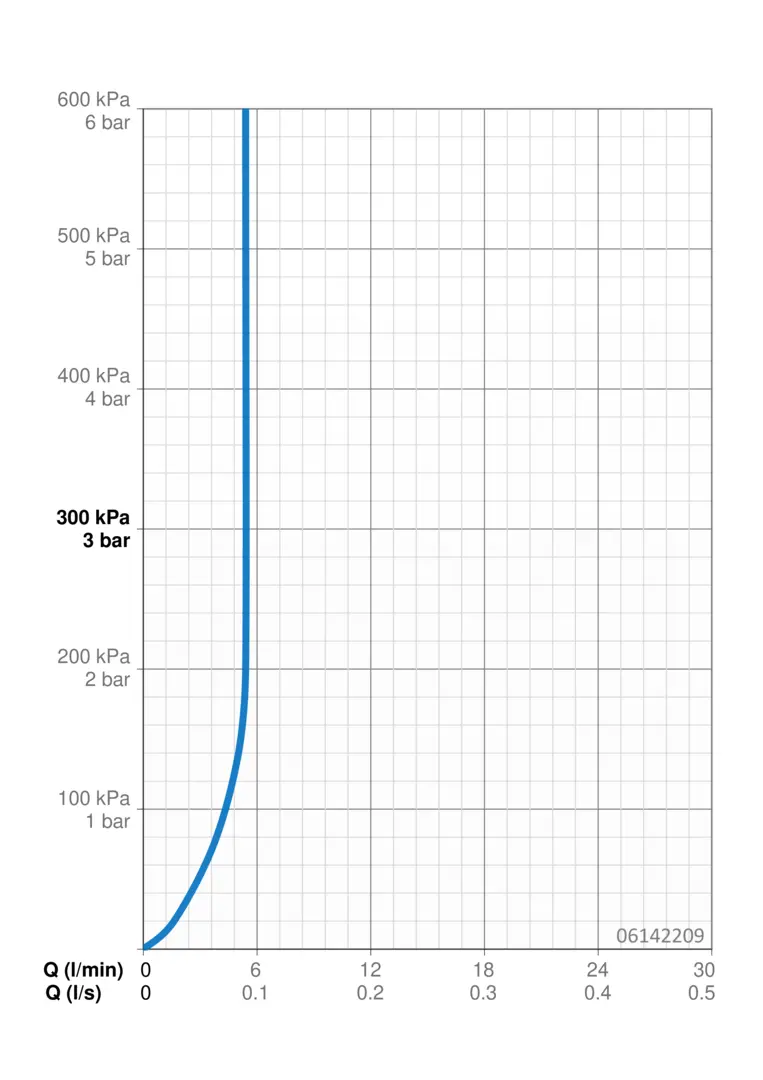

Flow-rate at 3 bar (with flow controller)
5.4 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass
Projection
110 mm
Working pressure
0.5 - 10 bar
Electronics
Bluetooth version
4.x (D034445)
Electrical Connection
230 / 9 V
Regulations
EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Protection class
IP 55 / transformer IP 20
