Description
Features
Connection
Silencer(s)
Concealed parts
BLUECLICK for an easy, screwless trim plate installation, Function unit, Fastening of the function unit with screws, Sleeve, Square rosette
Lever/Handle
Temperature control handle
Mechanical parts
Thermostatic cartridge for automatic temperature control, Non-return valve(s)
Color
Chrome
Temperature
Safety stop against scalding at 38°C
Flow attributes

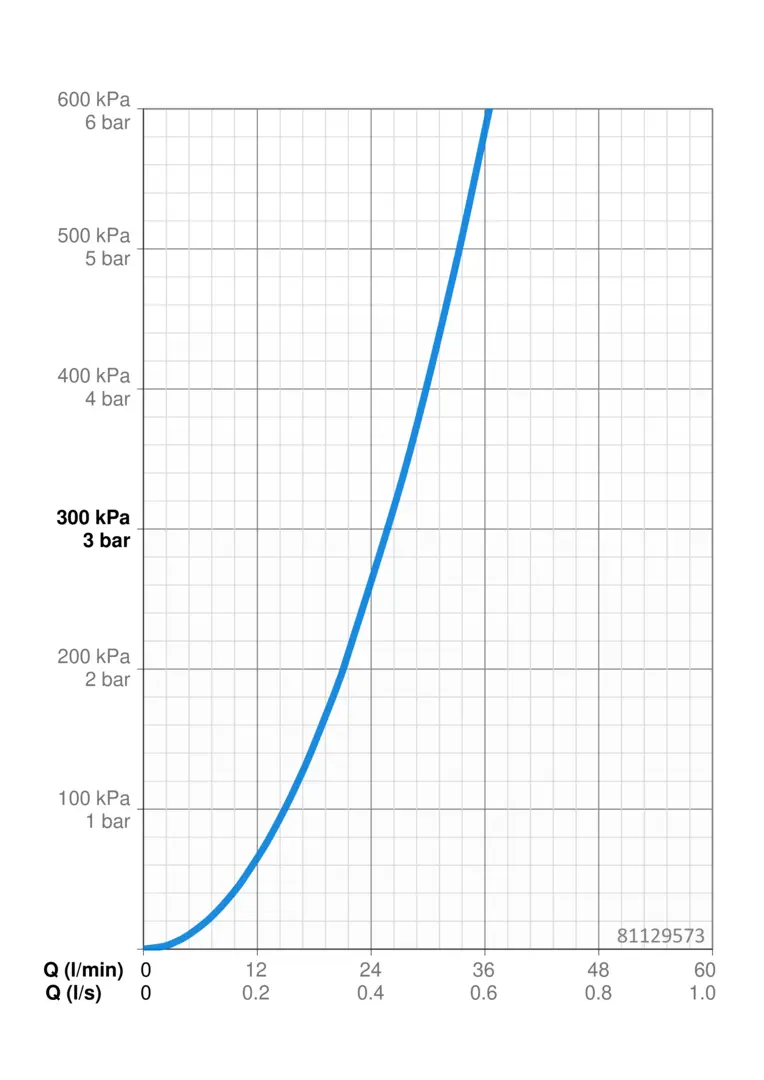

Flow-rate at 3 bar
25.8 l/min
Technical properties
Backflow prevention (EN1717)
EB
Hot water supply
max. +80°C
Material
Brass
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
