Description
Features

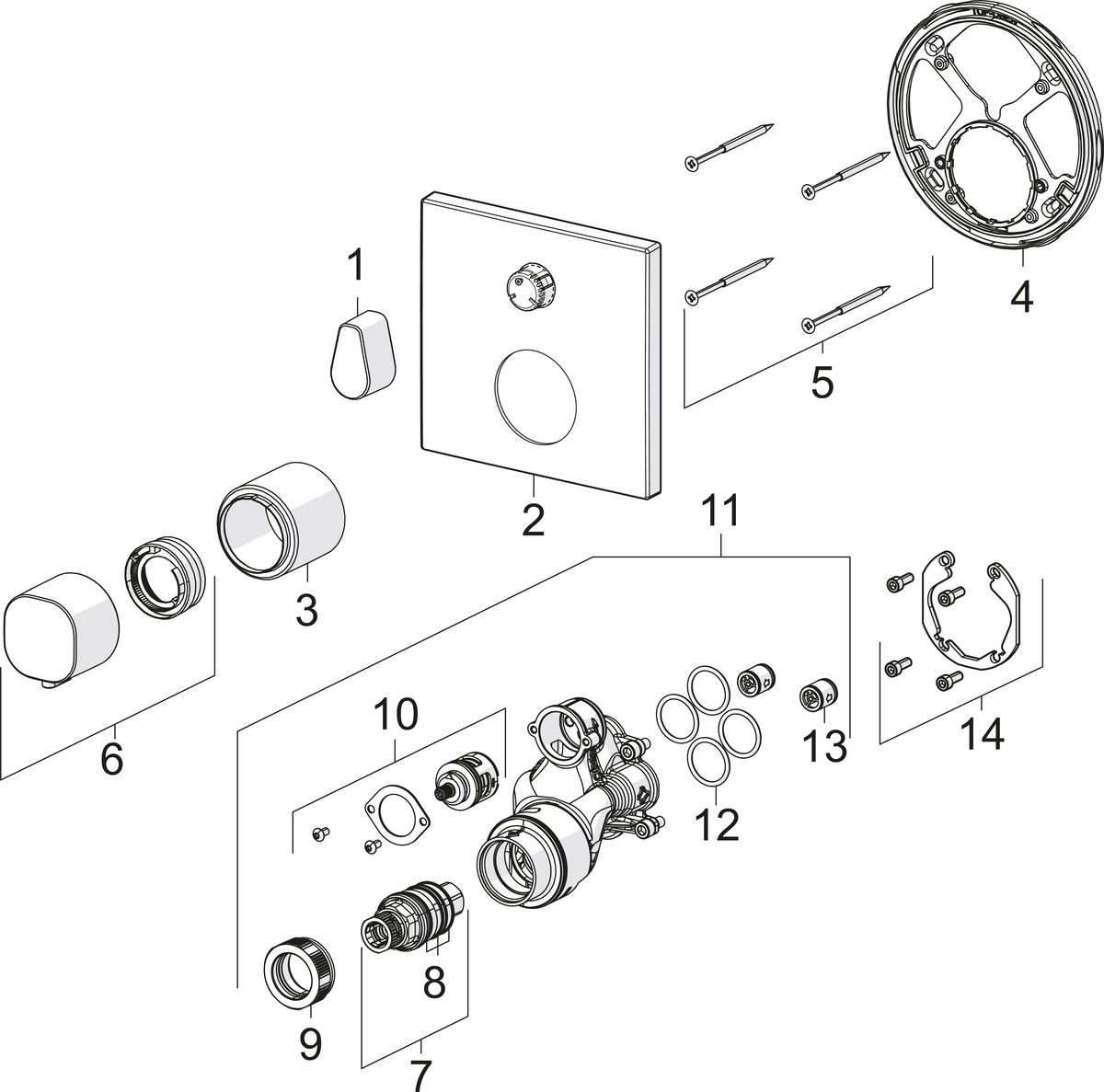

Concealed parts
BLUECLICK for an easy, screwless trim plate installation, BLUETUNE alignment after installation of +/- 3,5º, Function unit, Fastening of the function unit with screws, Square rosette
Lever/Handle

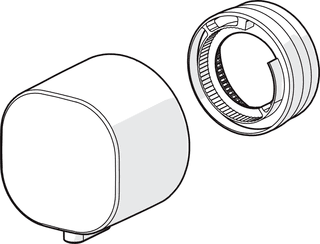

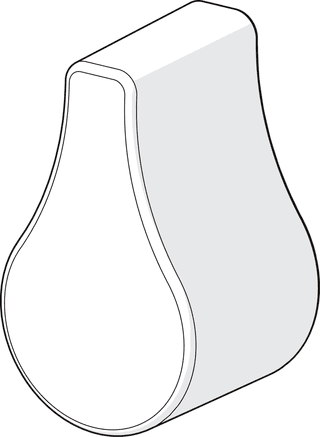

Temperature control handle, Flow control handle
Mechanical parts

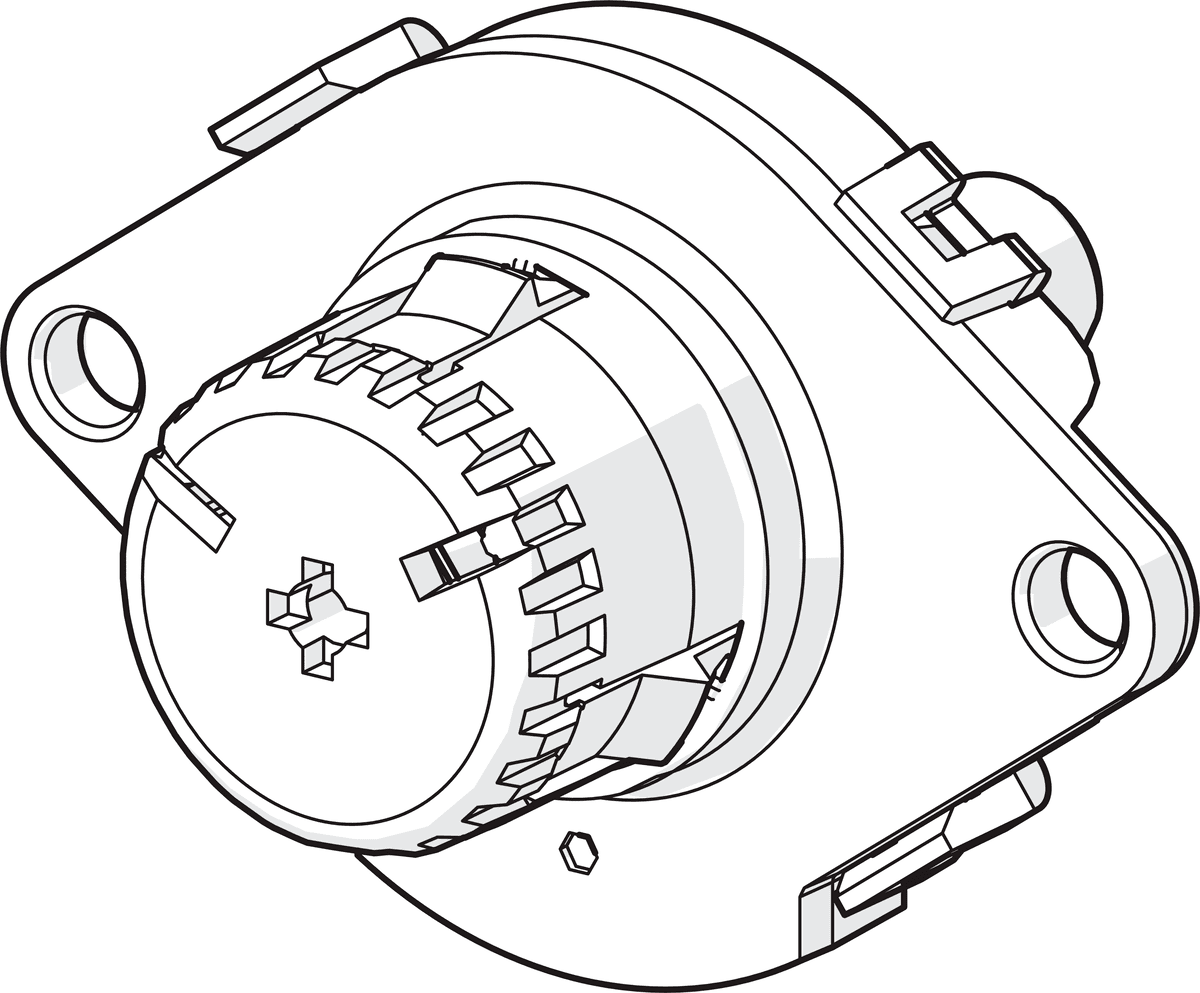

Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s)
Advanced features
Inner body made of DZR brass
Color
Chrome
Temperature
Safety stop against scalding at 38°C

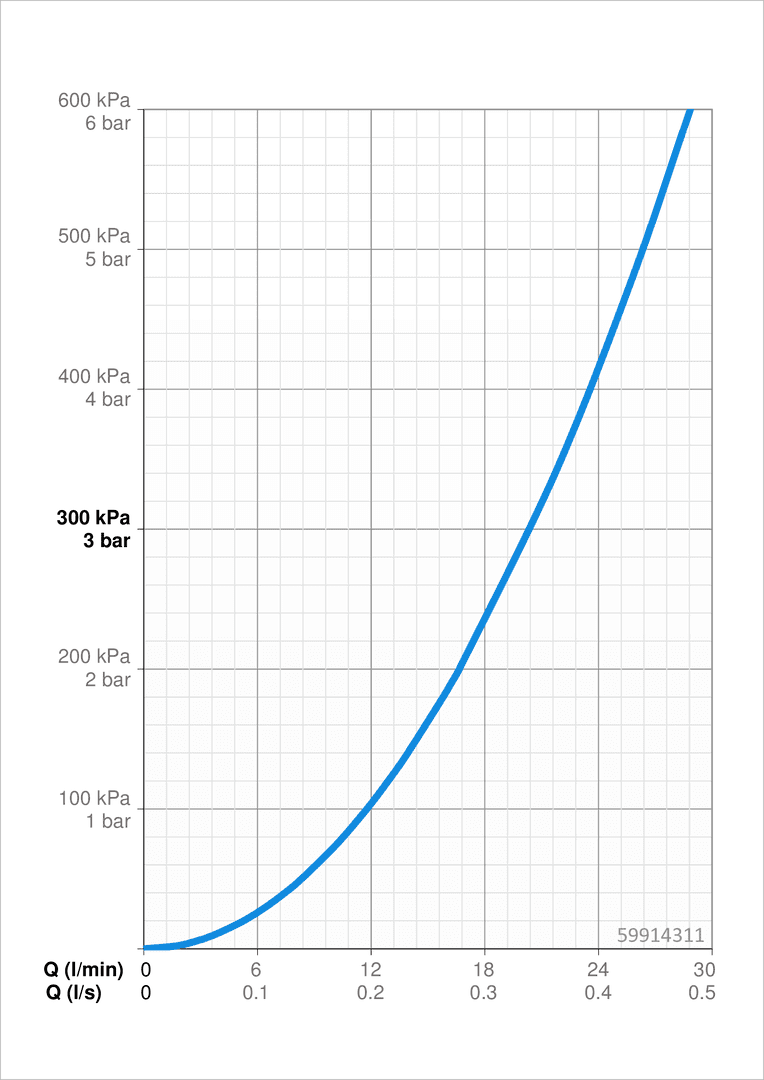

Flow attributes
Flow-rate at 3 bar
20.4 l/min
Technical properties
Backflow prevention (EN1717)
EB
Hot water supply
max. +80°C
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
14,17
EPD module A1-A3 (kg CO2 eq.)
23,37
EPD module A2 (kg CO2 eq.)
0,45
EPD module A3 (kg CO2 eq.)
8,84
EPD module A4 (kg CO2 eq.)
0,39
EPD module B7 (kg CO2 eq.)
3937,20
EPD module C2 (kg CO2 eq.)
0,02
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,31
EPD module D (kg CO2 eq.)
-7,23
