Description
Features
Concealed parts
Gasket sleeve for dry mortarless construction, Mounting box and cover sleeve, Multifix fastening system, Rotating installation option
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Flow attributes

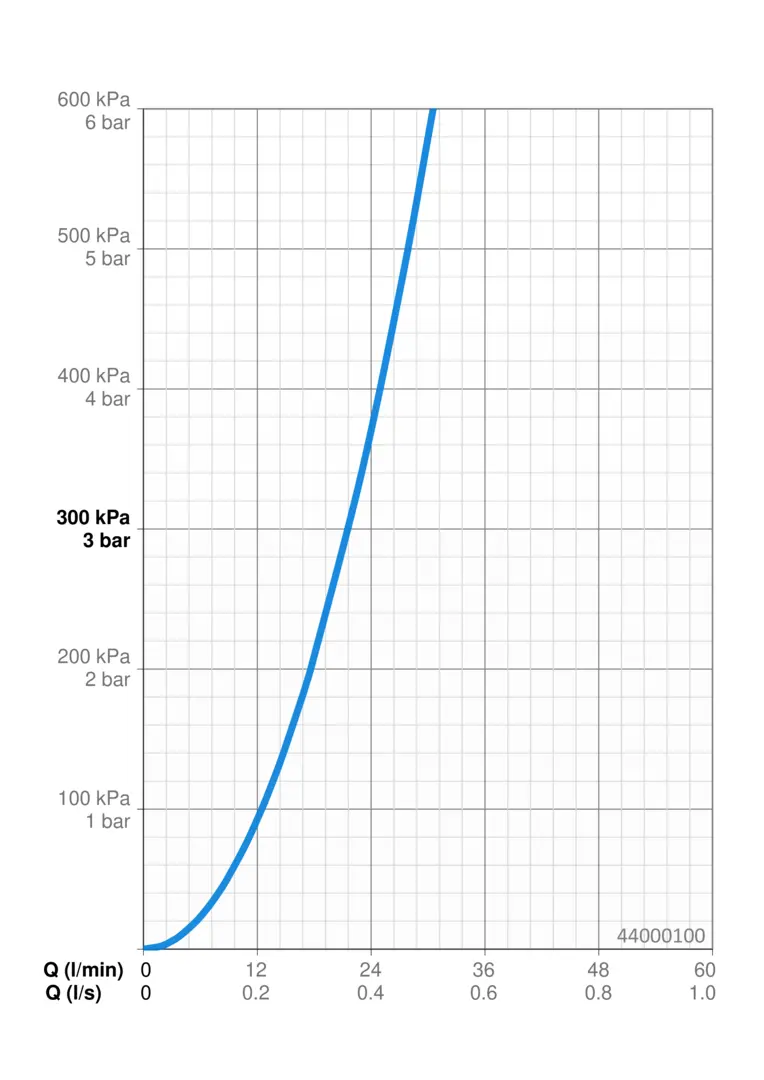

Flow-rate at 3 bar
21.6 l/min
Technical properties

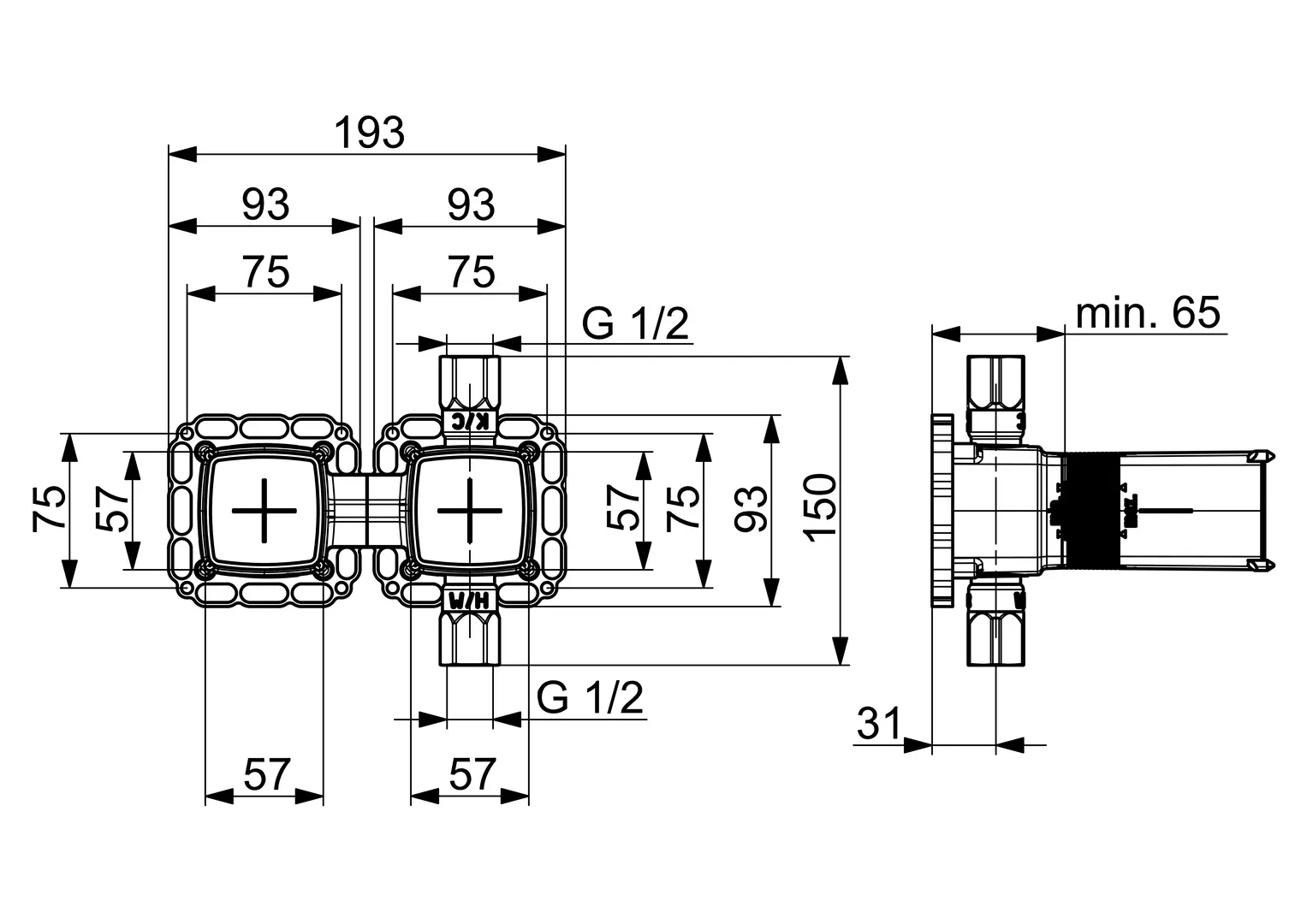

Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Material
Brass
Working pressure
1 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
