Description
Features
Aerator
Laminar stream
Connection
Copper inlet pipes
Extensions
Chain holder with chain
Lever/Handle
Long shape, Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 48 mm ceramic eco cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass, Waterways without nickel coating, Rapid installation system
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

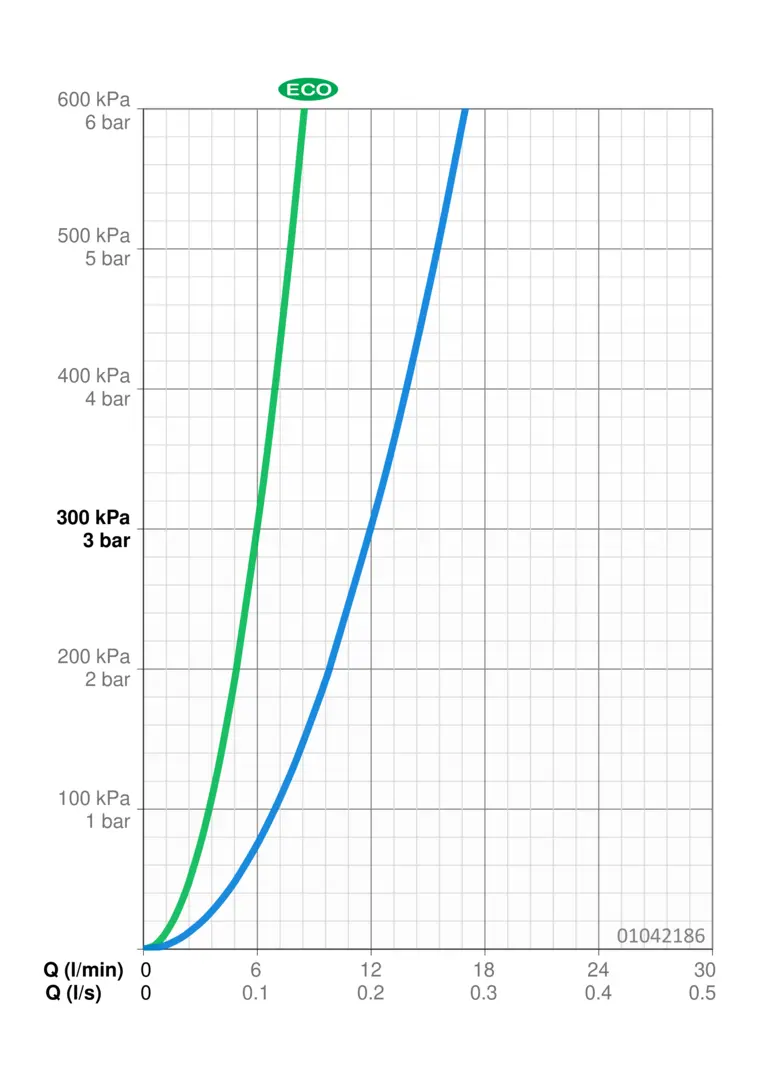

Flow attributes
Eco-flow at 3 bar
6 l/min
Flow-rate at 3 bar
12 l/min
Technical properties
Connection size
Ø10
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Material
Brass
Projection
141 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Approvals and Declarations
KIWA
K6116/08
