Description
Features
Aerator
Laminar stream
Connection
Eccentric coupling(s), Cover plate(s), with integrated shut-off valve(s), Cover plate triple sealed
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 48 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass, Surfaces in contact with drinking water contain less than 0.3% lead, Waterways without nickel coating
Spout
Swivel spout, Lockable in the middle position
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

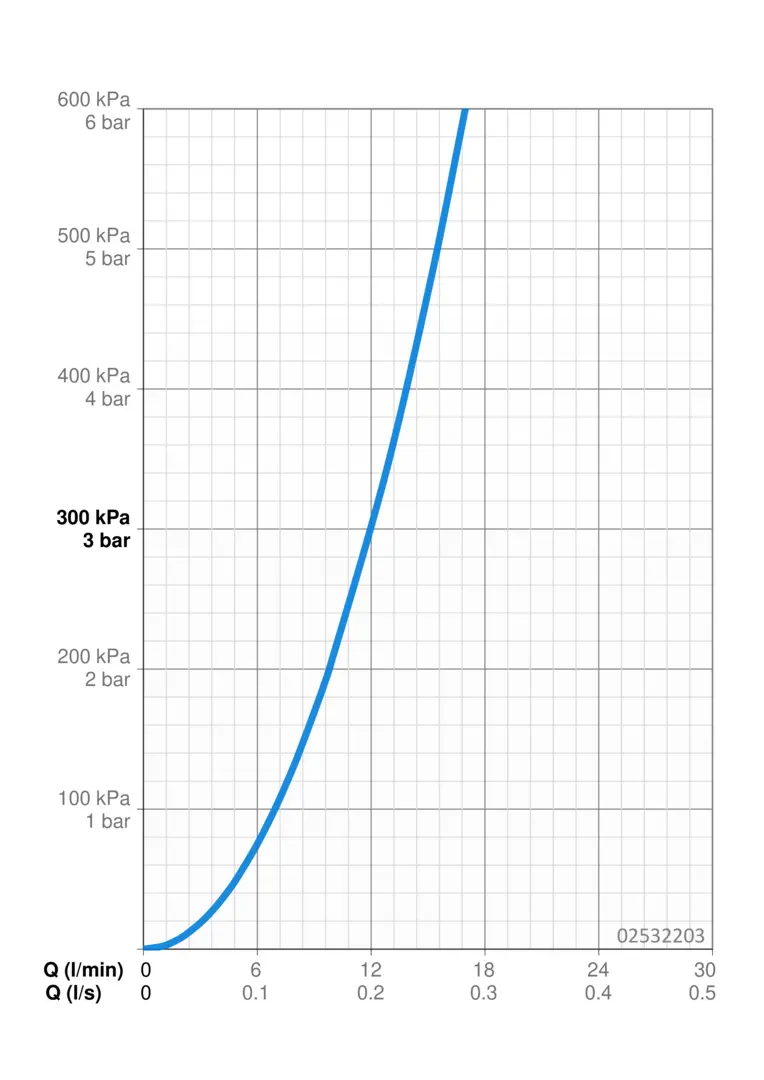

Flow attributes
Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
AA
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Installation width
150 ± 10 mm
Material
Brass
Projection
171 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
